A9F73101

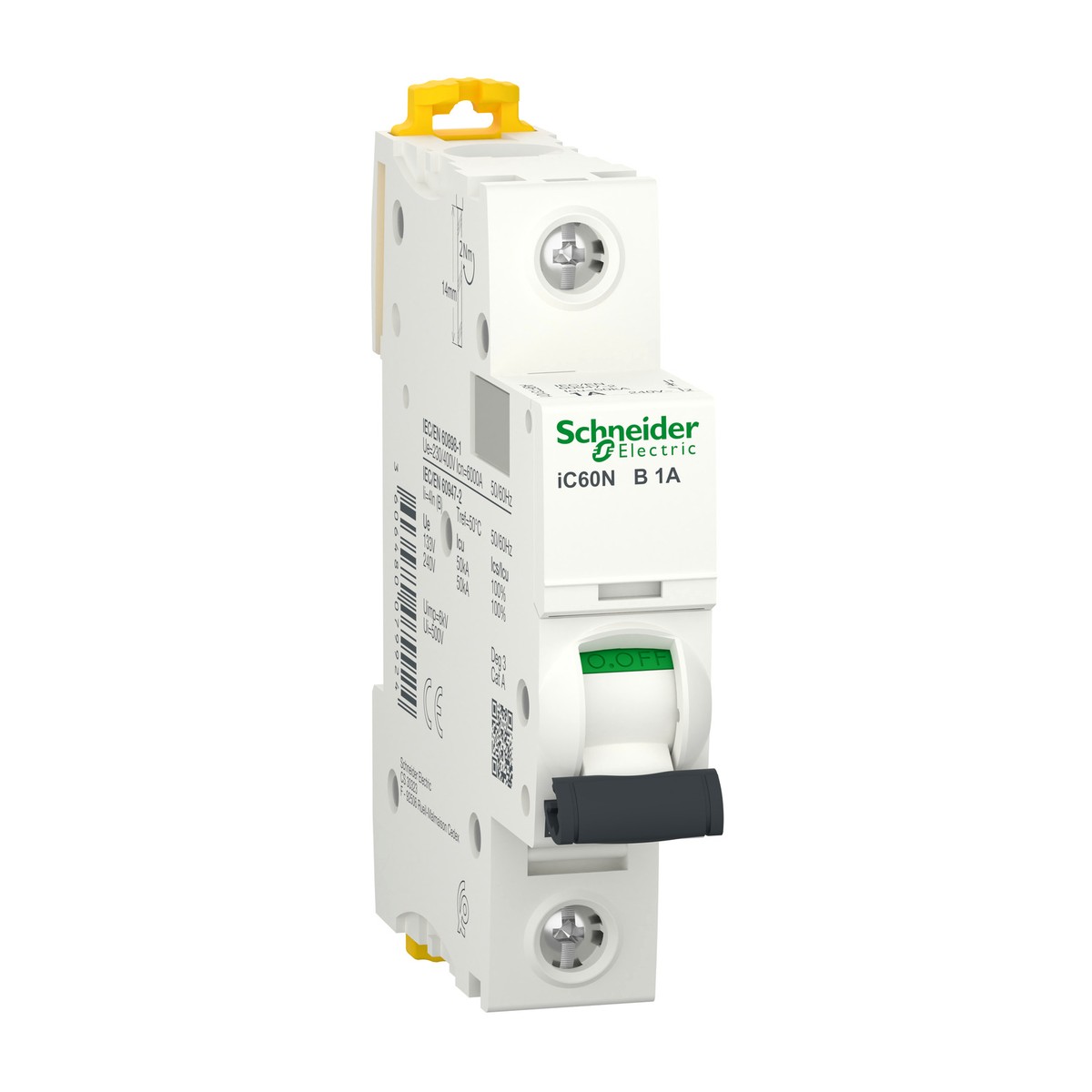

Schneider Electric A9F73101 Acti9 iC60N Miniature Circuit Breaker 1P 1A B-Curve. The Schneider Electric Acti9 iC60N A9F73101 is a robust 1-pole Miniature Circuit Breaker (MCB) designed for reliable overcurrent protection in final distribution circuits. As part of the acclaimed Acti9 range, this thermal-magnetic MCB features a B trip curve and a 1 A rated current, making it ideal for protecting low-current loads. It boasts impressive breaking capacities, including 6000 A Icn at 230 V AC (IEC/EN 60898-1) and 50 kA Icu at 220-240 V AC (EN/IEC 60947-2), ensuring superior circuit protection in diverse operational voltages from 12 V AC/DC up to 240 V AC or 72 V DC. This versatile device is suitable for both AC and DC networks and conforms to key international standards EN/IEC 60947-2 and EN/IEC 60898-1. With its compact 18 mm width and DIN rail mounting, the A9F73101 is easily integrated into control panels and distribution boards. Its IP20 protection and wide operating temperature range (-35…70 °C) make it suitable for challenging industrial environments commonly found in Egypt and the Gulf region, such as building services, light industrial control, and infrastructure projects like water treatment plants or commercial facilities. For enhanced electrical safety and system longevity, choose the Schneider Electric A9F73101.
Details
- Brand: Schneider Electric
- Part number: A9F73101
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F73110 — Acti9 iC60N Miniature Circuit Breaker, 1P 10A B-Curve
- Schneider Electric A9F73120 — Miniature Circuit Breaker Acti9 iC60N 1P 20A B-Curve
- Schneider Electric A9F73202 — Acti9 iC60N 2P 2A B-curve Miniature Circuit Breaker
- Schneider Electric A9F73203 — Miniature Circuit Breaker (MCB) Acti9 iC60N 2P 3A B-Curve
- Schneider Electric A9F73204 — Acti9 iC60N Miniature Circuit Breaker 2P 4A B-curve
- Schneider Electric A9F73210 — Miniature Circuit Breaker (MCB) iC60N, 2P, 10A, B Curve
- Schneider Electric A9F73216 — Acti9 iC60N Miniature Circuit Breaker 2P 16A B-Curve
- Schneider Electric A9F73225 — Miniature Circuit Breaker Acti9 iC60N 2P 25A B-curve
- Schneider Electric A9F73240 — Acti9 iC60N Miniature Circuit Breaker 2P 40A B-Curve
- Schneider Electric A9F73250 — Acti9 iC60N MCB 2P 50A B-curve 6000A/10kA
- Schneider Electric A9F73263 — Miniature Circuit Breaker (MCB) 2P 63A B-Curve
- Schneider Electric A9F73304 — Acti9 iC60N Miniature Circuit Breaker 3P 4A B-Curve
Specifications
- Width
- 18 mm
- Standards
- EN/IEC 60947-2; EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.215 kg
- Network type
- DC; AC
- Mounting support
- 35 mm DIN rail
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Breaking capacity
- 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1; 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- [In] rated current
- 1 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 cycles
- Mechanical durability
- 20000 cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F73101
- Number of protected poles
- 1
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC
- Connections - terminals (rigid)
- 1…25 mm², rigid, copper
- Ambient air temperature for operation
- -35…70 °C
