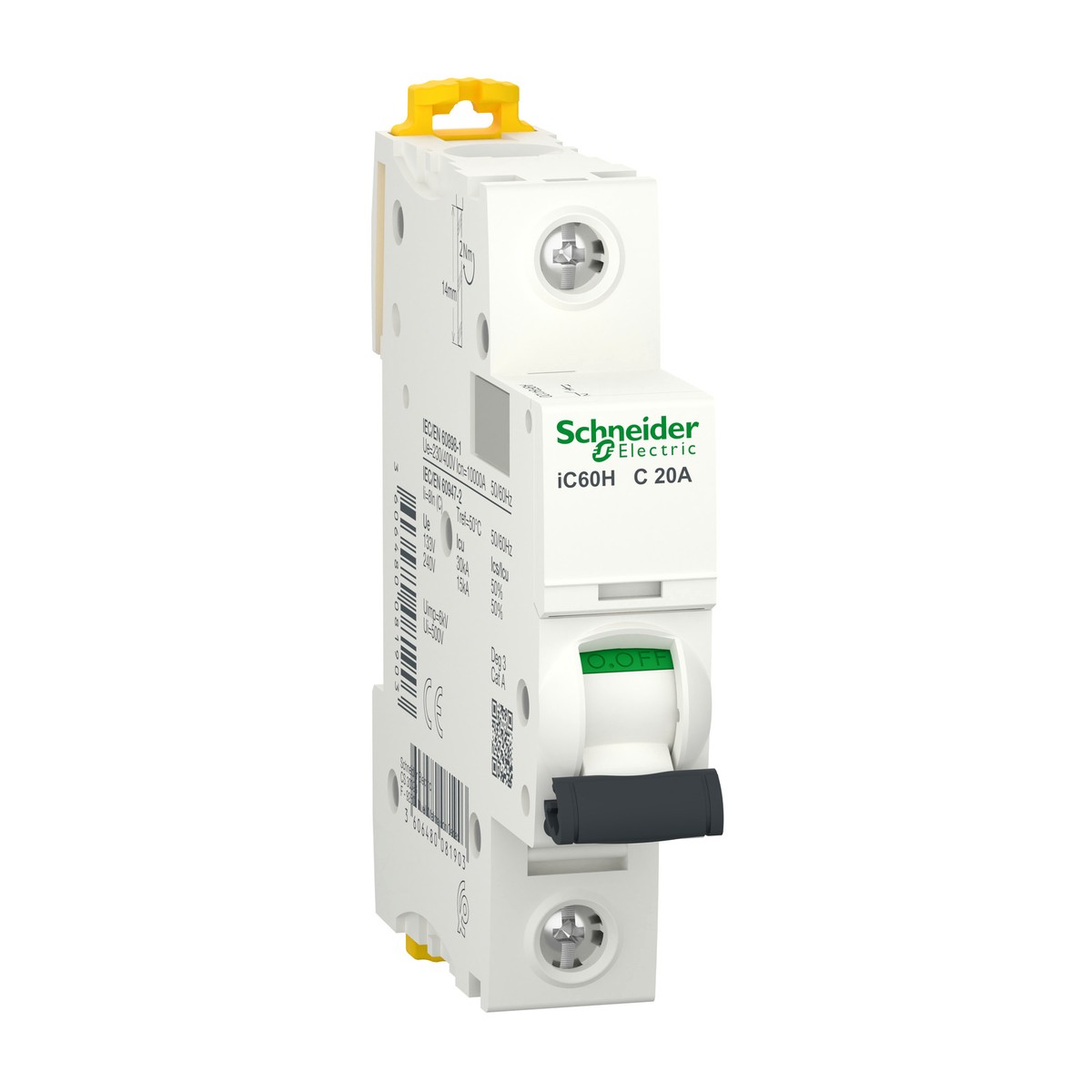

Schneider Electric A9F84120 Acti9 iC60H Miniature Circuit Breaker 1P 20A C-curve. The Schneider Electric A9F84120 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) designed for robust protection in final distribution circuits. This 1-pole (1P) device features a 20A rated current and a C-curve trip characteristic, utilizing reliable thermal-magnetic technology for efficient overcurrent and short-circuit protection. It offers versatile application with compatibility for both AC and DC networks, operating at a network frequency of 50/60 Hz. Key breaking capacities include 10000 A Icn conforming to IEC/EN 60898-1 at 230 V AC and an impressive 15 kA Icu conforming to IEC/EN 60947-2 at 220-240 V AC, making it suitable for demanding environments. The A9F84120 supports DIN rail mounting and provides IP20 protection. Its suitability for isolation ensures safety during maintenance. This Schneider Electric MCB is an excellent choice for a wide range of industrial applications across Egypt and the Gulf, including critical systems in cement production, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and general building services. For comprehensive circuit protection solutions, request a quote for the Schneider Electric A9F84120 today.
