A9F84140

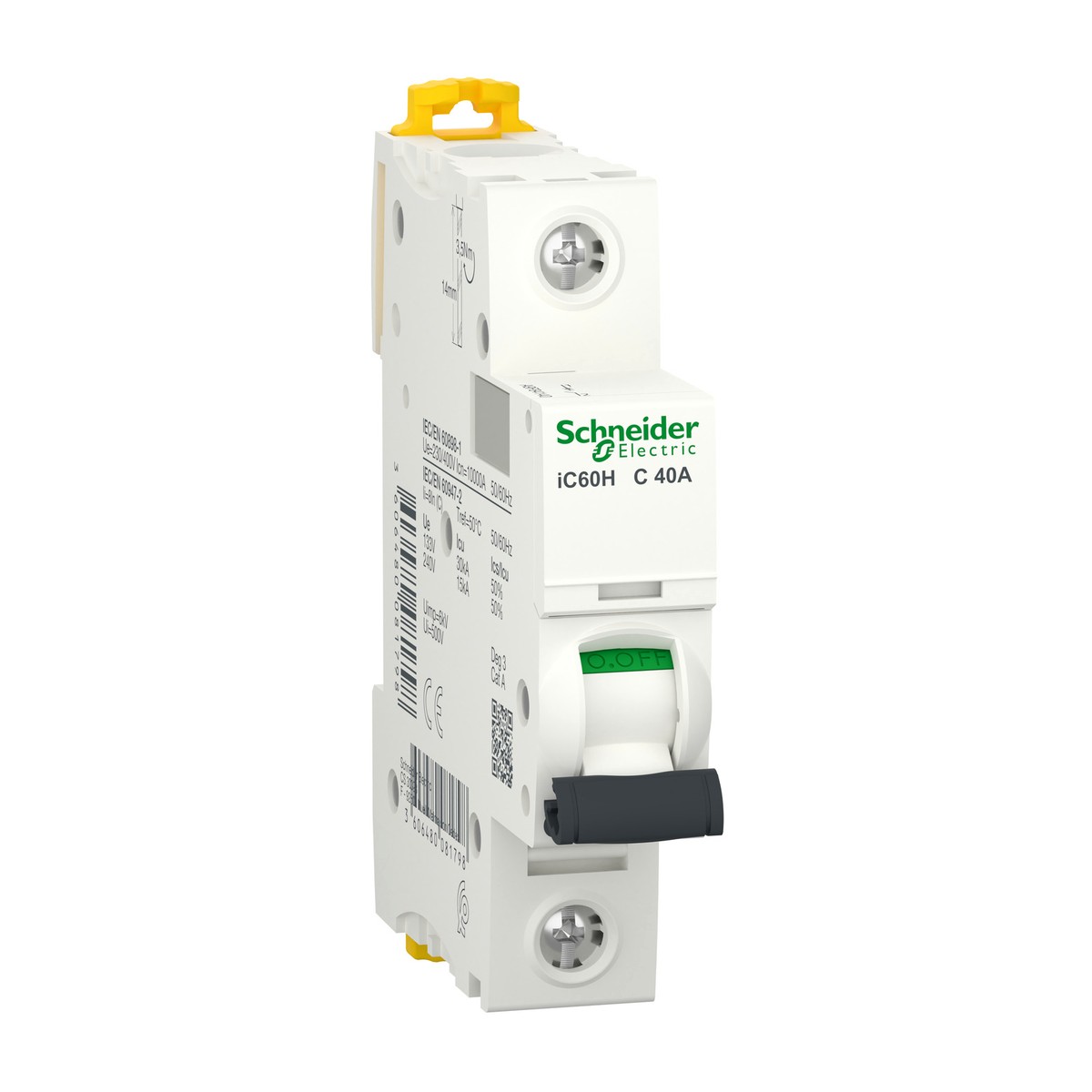

Schneider Electric A9F84140 Miniature Circuit Breaker (MCB), iC60H, 1P, 40A, C-curve. The Schneider Electric A9F84140 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB), engineered for reliable protection in final distribution circuits. This 1-pole, 40A device features a C-curve thermal-magnetic trip unit, ensuring effective overload and short-circuit protection for both AC and DC networks operating at 50/60 Hz. Key breaking capacities include 10000 A Icn at 230 V AC conforming to EN/IEC 60898-1, and 15 kA Icu at 220-240 V AC conforming to EN/IEC 60947-2. The unit is designed for easy installation on a 35 mm DIN rail, offers IP20 protection (IP40 in a modular enclosure), and is suitable for isolation, enhancing safety. Its wide operational voltage range, including 220-240 V AC, makes it highly versatile. Ideal for demanding industrial and commercial applications across Egypt and the Gulf region, including critical sectors like cement production, oil and gas facilities, water treatment plants, food and beverage processing, textile manufacturing, and building services. Ensure dependable circuit protection with this high-quality Schneider Electric component.
Details
- Brand: Schneider Electric
- Part number: A9F84140
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84201 — Miniature Circuit Breaker (MCB) iC60H 2P 1A C-Curve
- Schneider Electric A9F84202 — Acti9 iC60H Miniature Circuit Breaker 2P 2A C-Curve
- Schneider Electric A9F84203 — Miniature Circuit Breaker (MCB) 2P 3A C-Curve
- Schneider Electric A9F84206 — Miniature Circuit Breaker (MCB), 2P, 6A, C curve
- Schneider Electric A9F84210 — Acti9 iC60H Miniature Circuit Breaker 2P 10A C-Curve
- Schneider Electric A9F84213 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84225 — Miniature circuit breaker (MCB) Acti9 iC60H 2P 25A C curve
- Schneider Electric A9F84232 — Miniature circuit breaker, 2P, 32A, C curve
- Schneider Electric A9F84240 — iC60H 2P 40A C-curve Miniature Circuit Breaker
- Schneider Electric A9F84301 — Acti9 iC60H Miniature Circuit Breaker 3P 1A C-Curve
- Schneider Electric A9F84302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A C-Curve
- Schneider Electric A9F84304 — MCB Acti9 iC60H 3P 4A C-curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…35 mm², rigid, copper
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Earth-leakage protection
- Without
- Manufacturer part number
- A9F84140
- Number of protected poles
- 1
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
