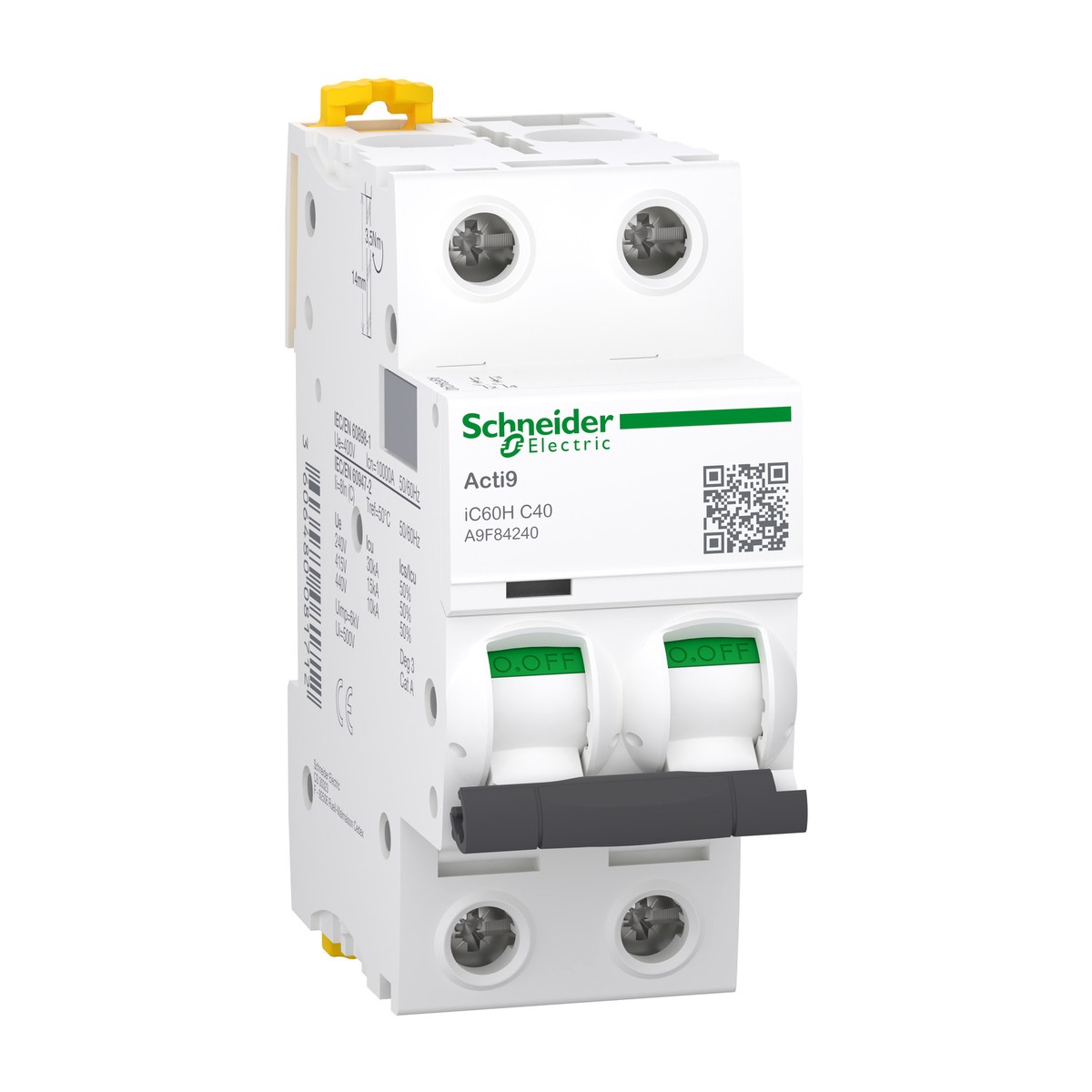

Schneider Electric A9F84240 iC60H 2P 40A C-curve Miniature Circuit Breaker. The Schneider Electric A9F84240 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection of final distribution circuits. This 2-pole (2P), 40A MCB features a C-curve trip characteristic, making it ideal for general-purpose applications requiring protection against overcurrents and short circuits. Utilizing thermal-magnetic trip unit technology, it ensures dependable operation across both AC and DC networks, with compatibility for 50/60 Hz frequencies. Key operational voltages include 220-240 V AC and 380-415 V AC, critical for various industrial and commercial installations in Egypt and the Gulf region. It offers a breaking capacity of 10000 A (IEC/EN 60898-1 at 400 V AC) and 15 kA Icu (IEC/EN 60947-2 at 380-415 V AC), providing excellent fault protection. Engineered for straightforward installation on a 35 mm DIN rail, it boasts an IP20 degree of protection and suitability for isolation. The A9F84240 is a crucial component for safeguarding electrical infrastructure in sectors such as cement, oil and gas, water treatment, food and beverage, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: A9F84240
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84301 — Acti9 iC60H Miniature Circuit Breaker 3P 1A C-Curve
- Schneider Electric A9F84302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A C-Curve
- Schneider Electric A9F84304 — MCB Acti9 iC60H 3P 4A C-curve
- Schneider Electric A9F84310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A C-curve
- Schneider Electric A9F84313 — iC60H Miniature Circuit Breaker 3P 13A C-Curve
- Schneider Electric A9F84325 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 25A C curve
- Schneider Electric A9F84332 — Acti9 iC60H MCB 3P 32A C-curve
- Schneider Electric A9F84340 — Acti9 iC60H Miniature Circuit Breaker, 3P, 40A, C Curve
- Schneider Electric A9F84401 — Acti9 iC60H MCB 4P 1A C-Curve
- Schneider Electric A9F84402 — MCB Acti9 iC60H 4P 2A C-curve
- Schneider Electric A9F84403 — Miniature Circuit Breaker Acti9 iC60H 4P 3A C-Curve
- Schneider Electric A9F84404 — Acti9 iC60H Miniature Circuit Breaker, 4P, 4A, C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- Rated current [In]
- 40 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1…35 mm² rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F84240
- Suitability for isolation
- Yes
- Rated operational voltage [Ue]
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
