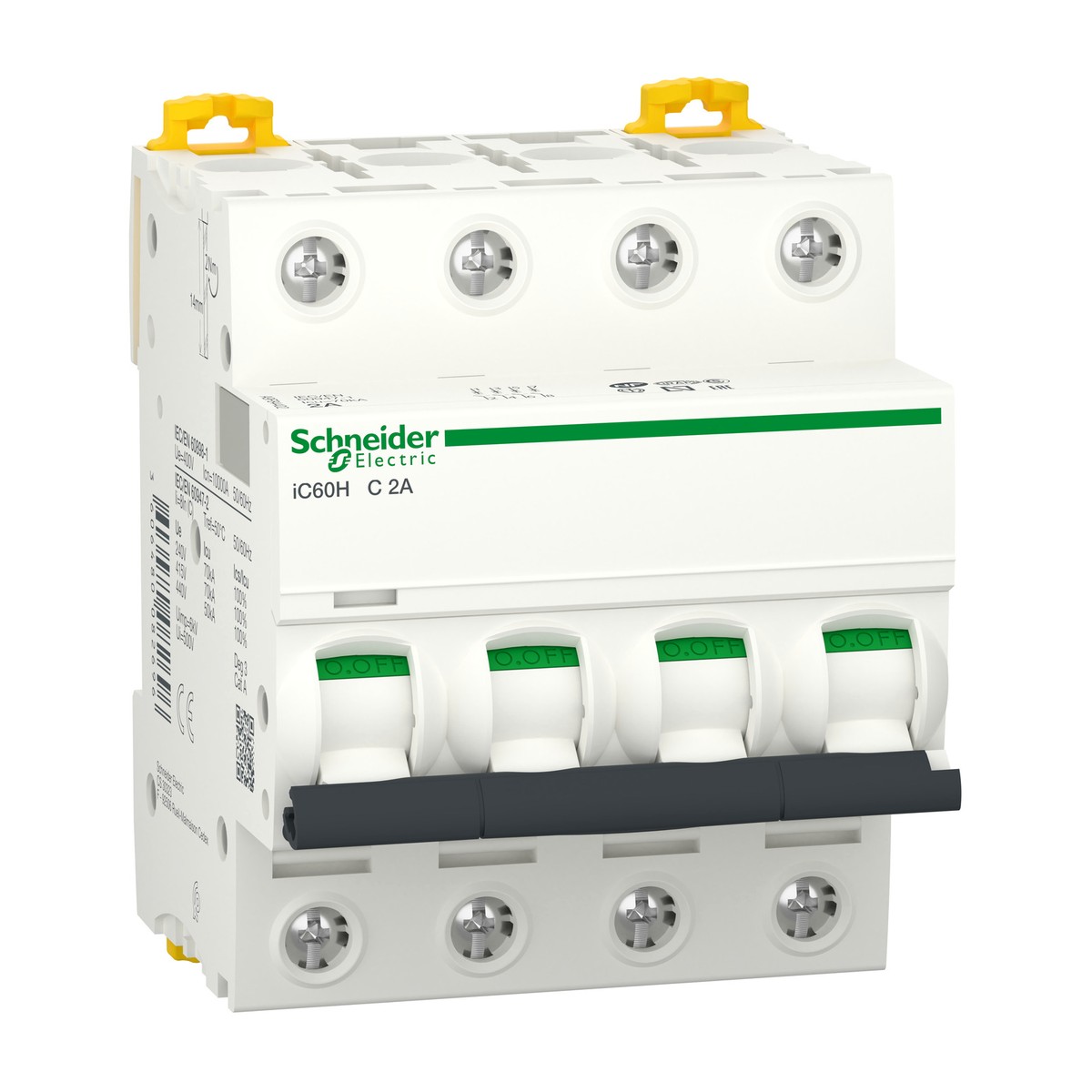

Schneider Electric A9F84402 MCB Acti9 iC60H 4P 2A C-curve. The Schneider Electric A9F84402 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection of final distribution circuits. This 4-pole, 2A, C-curve thermal-magnetic breaker safeguards electrical installations against overcurrents and short circuits in both AC and DC networks operating at 50/60 Hz. Key specifications include an impressive breaking capacity of 70 kA Icu at 380-415 V AC (conforming to EN/IEC 60947-2) and 10000 A at 400 V AC (conforming to EN/IEC 60898-1), making it ideal for demanding environments. It also offers 15 kA Icu for <= 250 V DC applications and is suitable for isolation. Featuring easy 35 mm DIN rail mounting and an IP20 degree of protection, the Schneider Electric A9F84402 is a versatile component widely utilized across Egyptian and Gulf industries such as cement, oil and gas, water treatment, food and beverage, textiles, and various building services.
Details
- Brand: Schneider Electric
- Part number: A9F84402
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84403 — Miniature Circuit Breaker Acti9 iC60H 4P 3A C-Curve
- Schneider Electric A9F84404 — Acti9 iC60H Miniature Circuit Breaker, 4P, 4A, C-Curve
- Schneider Electric A9F84406 — Miniature circuit breaker (MCB), Acti9 iC60H, 4P, 6A, C curve
- Schneider Electric A9F84410 — Miniature Circuit Breaker (MCB) 4P 10A C-curve
- Schneider Electric A9F84413 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 13A C-Curve
- Schneider Electric A9F84420 — Miniature Circuit Breaker, 4P, 20A, C curve
- Schneider Electric A9F84425 — Miniature Circuit Breaker (MCB) Acti9 iC60H 4P 25A C-Curve 10kA/15kA
- Schneider Electric A9F84432 — iC60H Miniature Circuit Breaker 4P 32A C-Curve
- Schneider Electric A9F85102 — Miniature Circuit Breaker (MCB) iC60H 1P 2A D-curve
- Schneider Electric A9F85104 — Miniature Circuit Breaker (MCB) 1P 4A D curve
- Schneider Electric A9F85106 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 6A D-Curve
- Schneider Electric A9F85116 — Miniature Circuit Breaker (MCB) 1P 16A D-Curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.5 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 2 A
- Trip unit technology
- Thermal-magnetic
- Dimensions (H x W x D)
- 85 Mm x 72 Mm x 78.5 Mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F84402
- Suitability for isolation
- Yes
- Connections - terminals (rigid)
- 1…25 mm²
- [Ue] rated operational voltage AC
- 380...415 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 70 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity DC (IEC/EN 60947-2)
- 15 KA Icu at <= 250 V DC
