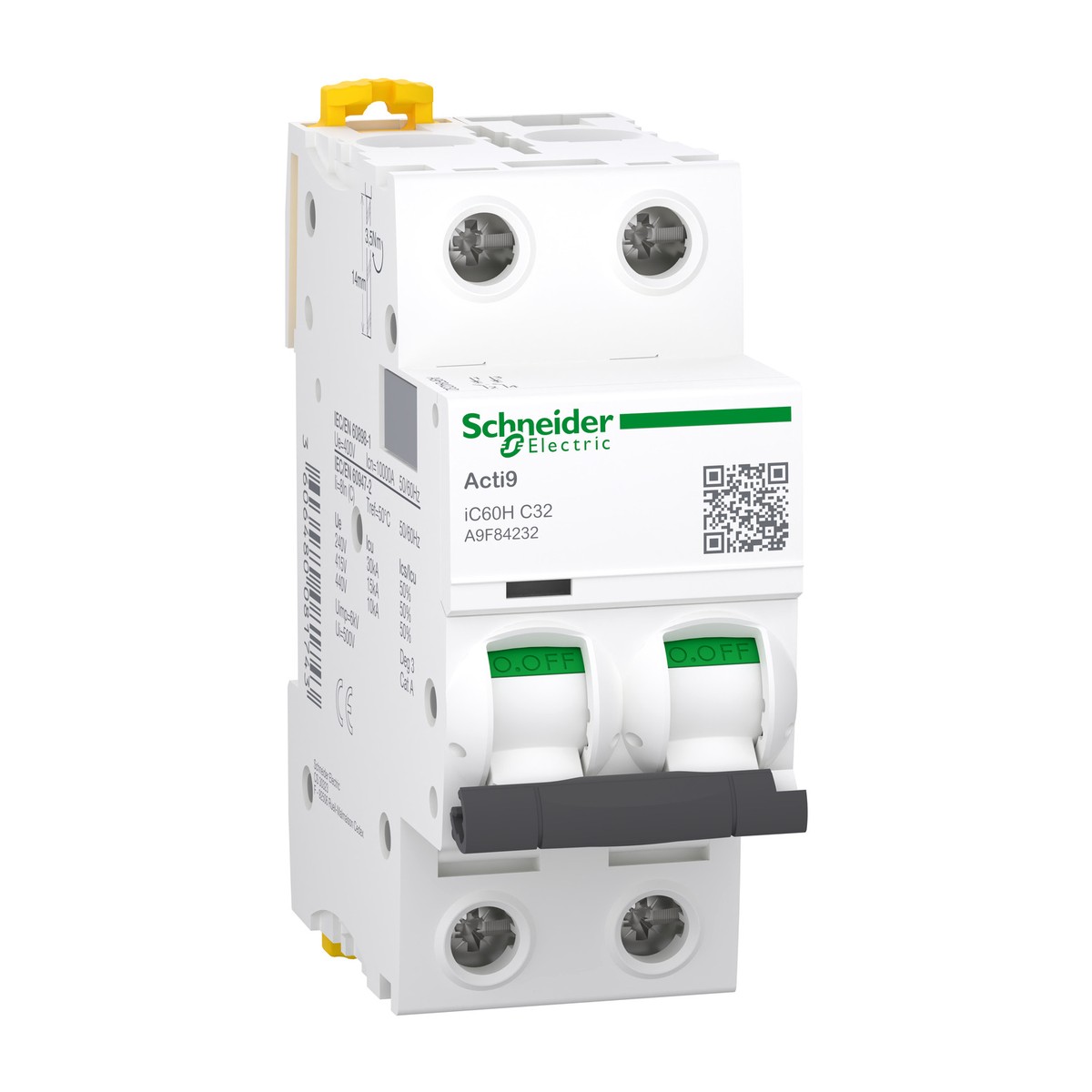

Schneider Electric A9F84232 Miniature circuit breaker, 2P, 32A, C curve. The Schneider Electric A9F84232 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, designed to provide reliable protection for final distribution circuits. This 2-pole, 32A MCB features a C-curve trip unit, ideal for general-purpose applications with moderate inrush currents. Its thermal-magnetic technology ensures effective safeguarding against both overcurrents and short circuits, enhancing electrical system safety and operational continuity. Compatible with both AC and DC networks operating at 50/60 Hz, the A9F84232 supports a wide range of operational voltages, including 220-240 V AC and 380-415 V AC, making it perfectly suited for typical installations across Egypt and the Gulf. Key breaking capacities include 10000 A (IEC/EN 60898-1) at 400 V AC and 15 kA (IEC/EN 60947-2) at 380-415 V AC. Designed for 35 mm DIN rail mounting, it offers IP20 protection and suitability for isolation. This essential component finds widespread use in critical infrastructure projects such as water treatment, oil and gas facilities, cement production, food and beverage processing, and various building services within the region.
Details
- Brand: Schneider Electric
- Part number: A9F84232
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84240 — iC60H 2P 40A C-curve Miniature Circuit Breaker
- Schneider Electric A9F84301 — Acti9 iC60H Miniature Circuit Breaker 3P 1A C-Curve
- Schneider Electric A9F84302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A C-Curve
- Schneider Electric A9F84304 — MCB Acti9 iC60H 3P 4A C-curve
- Schneider Electric A9F84310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A C-curve
- Schneider Electric A9F84313 — iC60H Miniature Circuit Breaker 3P 13A C-Curve
- Schneider Electric A9F84325 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 25A C curve
- Schneider Electric A9F84332 — Acti9 iC60H MCB 3P 32A C-curve
- Schneider Electric A9F84340 — Acti9 iC60H Miniature Circuit Breaker, 3P, 40A, C Curve
- Schneider Electric A9F84401 — Acti9 iC60H MCB 4P 1A C-Curve
- Schneider Electric A9F84402 — MCB Acti9 iC60H 4P 2A C-curve
- Schneider Electric A9F84403 — Miniature Circuit Breaker Acti9 iC60H 4P 3A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…35 mm² rigid, copper; Single terminal (top or bottom), for 1.0 cable(s), 1…25 mm² flexible, copper
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F84232
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
