A9F84225

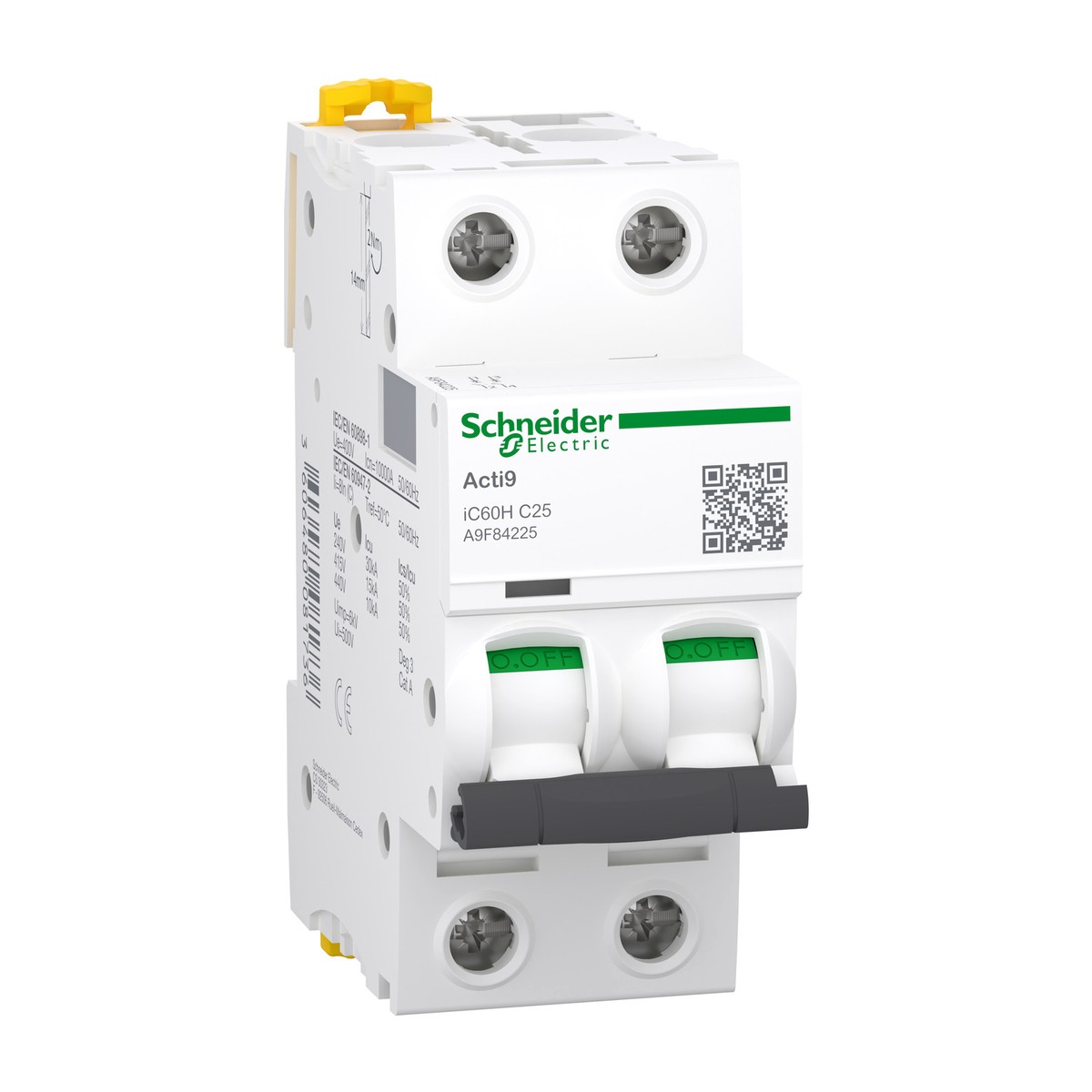

Schneider Electric A9F84225 Miniature circuit breaker (MCB) Acti9 iC60H 2P 25A C curve. The Schneider Electric A9F84225 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable circuit protection in final distribution applications. This 2-pole, 25A, C-curve MCB features thermal-magnetic trip unit technology, ensuring effective overload and short-circuit protection for both AC and DC networks. It boasts a breaking capacity of 10000A (IEC/EN 60898-1) at 400V AC and 15kA (IEC/EN 60947-2) at 380-415V AC, suitable for demanding environments. Operational voltages include 220-240V AC and 380-415V AC at 50/60 Hz, as well as up to 125V DC, meeting diverse power requirements across the Gulf and Egypt. Engineered for easy installation on a 35mm DIN rail, the A9F84225 offers IP20 protection and operates in ambient temperatures from -35°C to 70°C. Its suitability for isolation enhances safety. This Schneider Electric component is ideal for critical infrastructure in sectors such as cement production, oil and gas, water treatment, food and beverage processing, and general building services. For detailed technical specifications or to request a quote for the Schneider Electric A9F84225, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F84225
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84232 — Miniature circuit breaker, 2P, 32A, C curve
- Schneider Electric A9F84240 — iC60H 2P 40A C-curve Miniature Circuit Breaker
- Schneider Electric A9F84301 — Acti9 iC60H Miniature Circuit Breaker 3P 1A C-Curve
- Schneider Electric A9F84302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A C-Curve
- Schneider Electric A9F84304 — MCB Acti9 iC60H 3P 4A C-curve
- Schneider Electric A9F84310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A C-curve
- Schneider Electric A9F84313 — iC60H Miniature Circuit Breaker 3P 13A C-Curve
- Schneider Electric A9F84325 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 25A C curve
- Schneider Electric A9F84332 — Acti9 iC60H MCB 3P 32A C-curve
- Schneider Electric A9F84340 — Acti9 iC60H Miniature Circuit Breaker, 3P, 40A, C Curve
- Schneider Electric A9F84401 — Acti9 iC60H MCB 4P 1A C-Curve
- Schneider Electric A9F84402 — MCB Acti9 iC60H 4P 2A C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- [In] rated current
- 25 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- 1...25 mm² rigid, copper; 1...16 mm² flexible, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F84225
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...133 V, 220...240 V, 380...415 V, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
