A9F84132

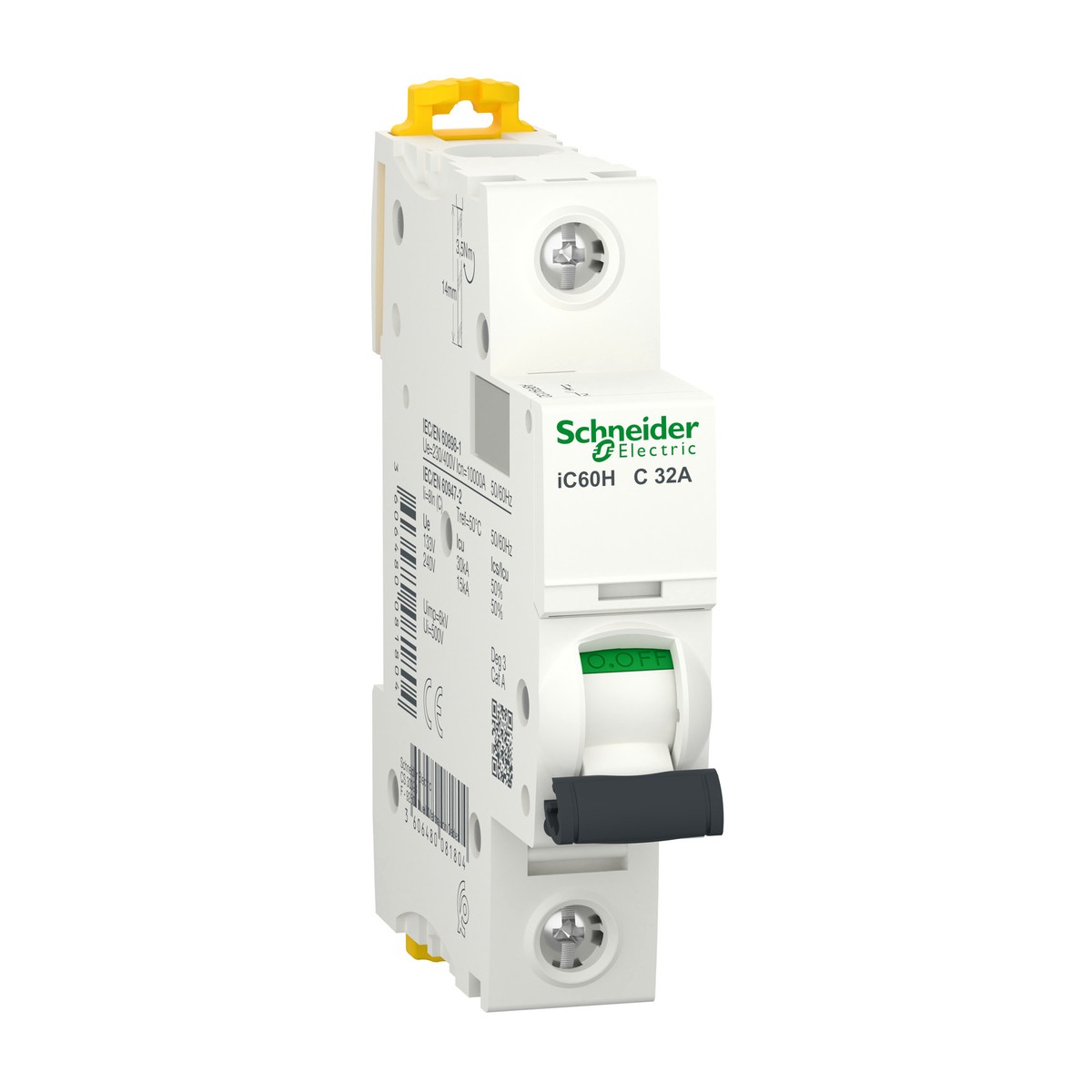

Schneider Electric A9F84132 Acti9 iC60H MCB 1P 32A C-Curve. The Schneider Electric A9F84132 Acti9 iC60H Miniature Circuit Breaker (MCB) provides robust protection for final distribution circuits. This 1-pole, 32A, C-curve thermal-magnetic MCB efficiently safeguards electrical installations against overcurrents and short circuits, ensuring system integrity. It delivers a formidable breaking capacity of 10000A Icn at 230V AC (IEC/EN 60898-1) and 15KA Icu at 220-240V AC (IEC/EN 60947-2), suitable for diverse applications. The versatile A9F84132 supports both AC (up to 240V, 50/60 Hz) and DC (up to 72V) networks, providing broad compatibility. Designed for effortless integration, it features clip-on mounting to a 35 mm DIN rail with a slim 18mm width. With an IP20 protection rating and an operational temperature range of -35 to 70 °C, this Schneider Electric MCB ensures consistent, reliable performance in challenging conditions. Conforming to EN/IEC 60947-2 and EN/IEC 60898-1 standards, it is suitable for isolation. Widely deployed across Egypt and the Gulf, this component is trusted in building services, light industrial control panels, and critical infrastructure in sectors such as water treatment, food and beverage, and commercial facilities.
Details
- Brand: Schneider Electric
- Part number: A9F84132
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84140 — Miniature Circuit Breaker (MCB), iC60H, 1P, 40A, C-curve
- Schneider Electric A9F84201 — Miniature Circuit Breaker (MCB) iC60H 2P 1A C-Curve
- Schneider Electric A9F84202 — Acti9 iC60H Miniature Circuit Breaker 2P 2A C-Curve
- Schneider Electric A9F84203 — Miniature Circuit Breaker (MCB) 2P 3A C-Curve
- Schneider Electric A9F84206 — Miniature Circuit Breaker (MCB), 2P, 6A, C curve
- Schneider Electric A9F84210 — Acti9 iC60H Miniature Circuit Breaker 2P 10A C-Curve
- Schneider Electric A9F84213 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84225 — Miniature circuit breaker (MCB) Acti9 iC60H 2P 25A C curve
- Schneider Electric A9F84232 — Miniature circuit breaker, 2P, 32A, C curve
- Schneider Electric A9F84240 — iC60H 2P 40A C-curve Miniature Circuit Breaker
- Schneider Electric A9F84301 — Acti9 iC60H Miniature Circuit Breaker 3P 1A C-Curve
- Schneider Electric A9F84302 — Miniature Circuit Breaker Acti9 iC60H 3P 2A C-Curve
Specifications
- Width
- 18 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Poles description
- 1P
- [In] rated current
- 32 A
- Trip unit technology
- Thermal-magnetic
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F84132
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
