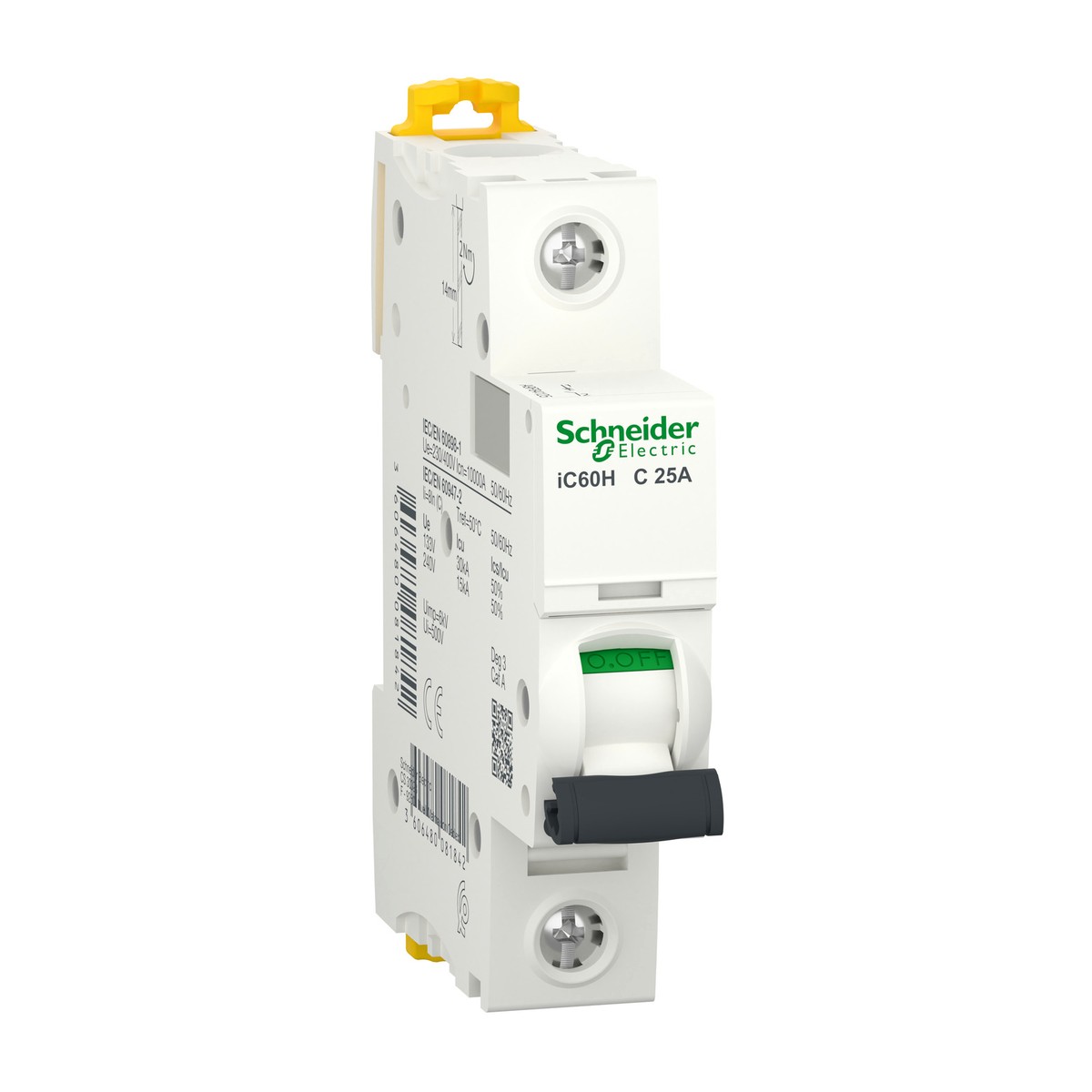

Schneider Electric A9F84125 Miniature Circuit Breaker Acti9 iC60H 1P 25A C-Curve. The Schneider Electric A9F84125 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 1-pole, 25A device features a C-curve thermal-magnetic trip unit, offering effective overload and short-circuit protection for both AC and DC networks. It supports common operational voltages including 220-240 V AC at 50/60 Hz, making it ideal for the Egyptian and Gulf markets. With a breaking capacity of 10000 A (IEC/EN 60898-1) and 15 kA (IEC/EN 60947-2), the A9F84125 ensures high performance and safety. Designed for easy installation on a 35 mm DIN rail, it provides a compact 18 mm width, IP20 protection, and operates reliably in ambient temperatures from -35 to 70 °C. Its durability is proven with 20,000 mechanical and 10,000 electrical cycles. This Schneider Electric MCB is suitable for diverse applications in industries such as building services, water treatment, cement, and food & beverage.
Details
- Brand: Schneider Electric
- Part number: A9F84125
- Series: Acti9 iC60
- Category: Miniature Circuit Breaker
