A9F84104

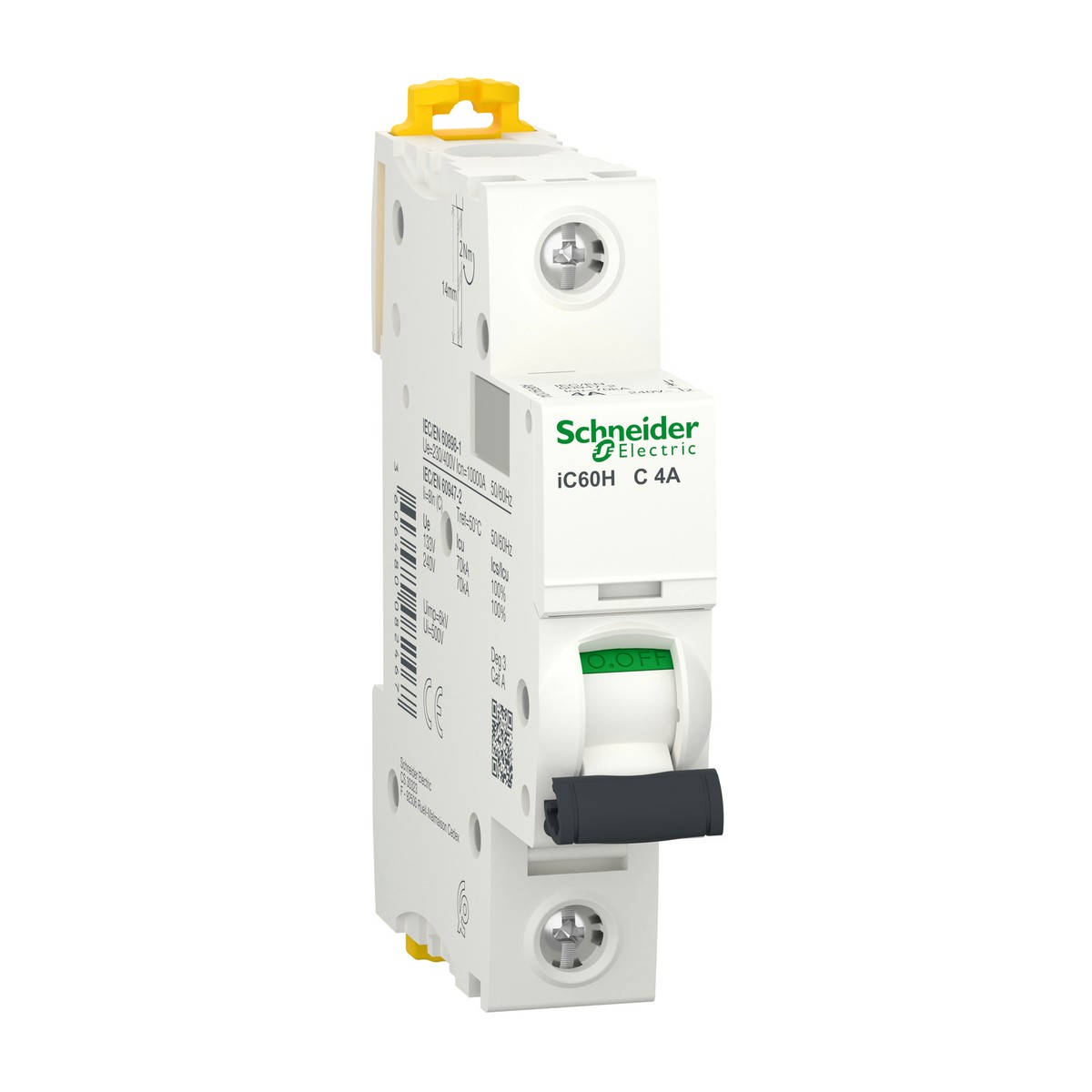

Schneider Electric A9F84104 Acti9 iC60H Miniature Circuit Breaker 1P 4A C-Curve. The Schneider Electric Acti9 iC60H Miniature Circuit Breaker, part number A9F84104, is a high-performance 1-pole device engineered for superior protection in final distribution circuits. Featuring a 4A rated current and a C-curve thermal-magnetic trip unit, this MCB delivers robust overcurrent and short-circuit protection. It boasts impressive breaking capacities, including 10000A Icn at 230V AC (IEC/EN 60898-1) and 70kA Icu at 220-240V AC (IEC/EN 60947-2), accommodating demanding electrical systems. Designed for versatility, the A9F84104 supports both AC and DC networks, with operational voltages spanning 12-240V AC at 50/60 Hz and 12-72V DC. This broad compatibility, particularly its 220-240V AC rating, makes it an ideal choice for electrical installations across Egypt and the Gulf. Easily mounted on a 35mm DIN rail and featuring IP20 protection, it's suitable for a wide array of applications in industries like building services, water treatment, cement, oil and gas, and food and beverage. Its compact 18mm width and high mechanical and electrical durability ensure long-lasting, reliable performance. For dependable circuit protection from Schneider Electric, request a quote for the A9F84104 today.
Details
- Brand: Schneider Electric
- Part number: A9F84104
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84106 — Miniature Circuit Breaker Acti9 iC60H 1P 6A C-Curve
- Schneider Electric A9F84110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A C-Curve
- Schneider Electric A9F84116 — Acti9 iC60H Miniature Circuit Breaker 1P 16A C-Curve
- Schneider Electric A9F84150 — Acti9 iC60H Miniature Circuit Breaker, 1P, 50A, C curve
- Schneider Electric A9F84163 — Miniature Circuit Breaker (MCB), 1-Pole, 63A, C-curve
- Schneider Electric A9F84204 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84216 — Acti9 iC60H Miniature Circuit Breaker (MCB) 2P 16A C-curve
- Schneider Electric A9F84220 — Acti9 iC60H MCB, 2P, 20A, C curve
- Schneider Electric A9F84250 — Miniature Circuit Breaker (MCB) Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F84263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 2 N.M top or bottom
- Rated current [In]
- 4 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20
- Manufacturer part number
- A9F84104
- Suitability for isolation
- Yes
- Rated operational voltage [Ue]
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 70 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
