A9F84150

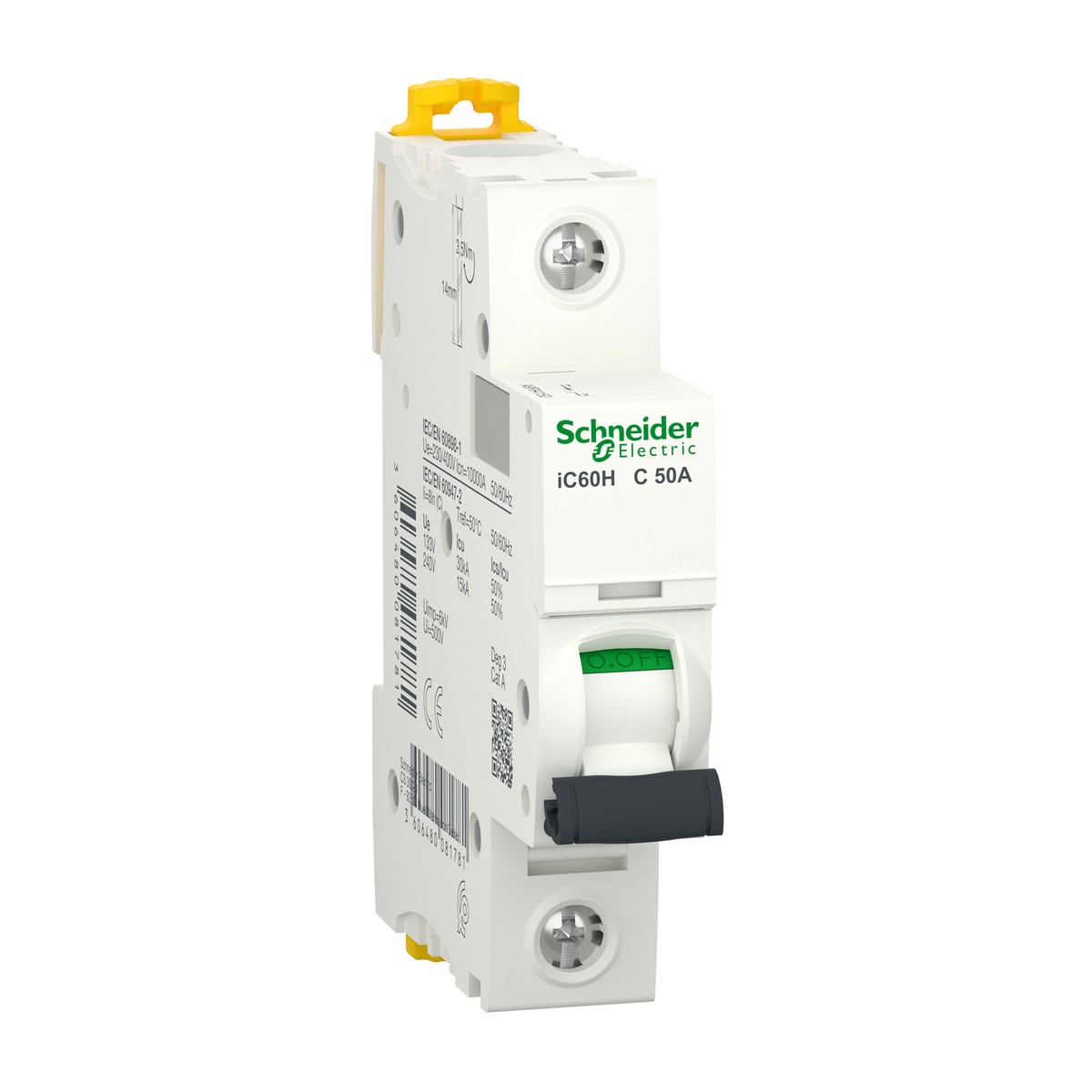

Schneider Electric A9F84150 Acti9 iC60H Miniature Circuit Breaker, 1P, 50A, C curve. The Schneider Electric A9F84150 Acti9 iC60H Miniature Circuit Breaker is a robust and reliable solution designed for protecting final distribution circuits. This 1-pole, 50A MCB features a C trip curve and thermal-magnetic technology, offering dependable overload and short-circuit protection for both AC and DC networks. It supports a wide range of operational voltages, including 220-240 V AC 50/60 Hz, making it ideal for the electrical infrastructure prevalent in Egypt and the Gulf region. With a breaking capacity of 15 kA conforming to EN/IEC 60947-2 (at 220-240 V AC) and 10 kA conforming to EN/IEC 60898-1 (at 230 V AC), it ensures high safety and operational continuity. The iC60H series is suitable for isolation and designed for easy clip-on mounting on a 35 mm DIN rail, simplifying installation in modular enclosures. Its IP20 protection rating and -35 to 70 °C operating temperature range ensure durability in various environmental conditions common in applications such as building services, water treatment plants, and light industrial facilities. For more details or to request a quote for Schneider Electric A9F84150, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F84150
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84163 — Miniature Circuit Breaker (MCB), 1-Pole, 63A, C-curve
- Schneider Electric A9F84204 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84216 — Acti9 iC60H Miniature Circuit Breaker (MCB) 2P 16A C-curve
- Schneider Electric A9F84220 — Acti9 iC60H MCB, 2P, 20A, C curve
- Schneider Electric A9F84250 — Miniature Circuit Breaker (MCB) Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F84263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
- Schneider Electric A9F84350 — Acti9 iC60H Miniature Circuit Breaker 3P 50A C-curve
- Schneider Electric A9F84363 — Miniature circuit breaker, Acti9 iC60H, 3P, 63A, C curve
- Schneider Electric A9F84416 — iC60H Miniature Circuit Breaker, 4P, 16A, C Curve
- Schneider Electric A9F84440 — Miniature circuit breaker, iC60H, 4P, 40A, C curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- DC; AC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 42 KA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2; 30 KA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 15 KA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 KA Icu at 12...60 V DC conforming to EN/IEC 60947-2; 15 KA Icu at 60...72 V DC conforming to EN/IEC 60947-2; 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Wire stripping length
- 14 Mm for top or bottom connection
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F84150
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2; Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz; 100...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 12...60 V DC; 60...72 V DC
- Ambient air temperature for operation
- -35…70 °C
