A9F84363

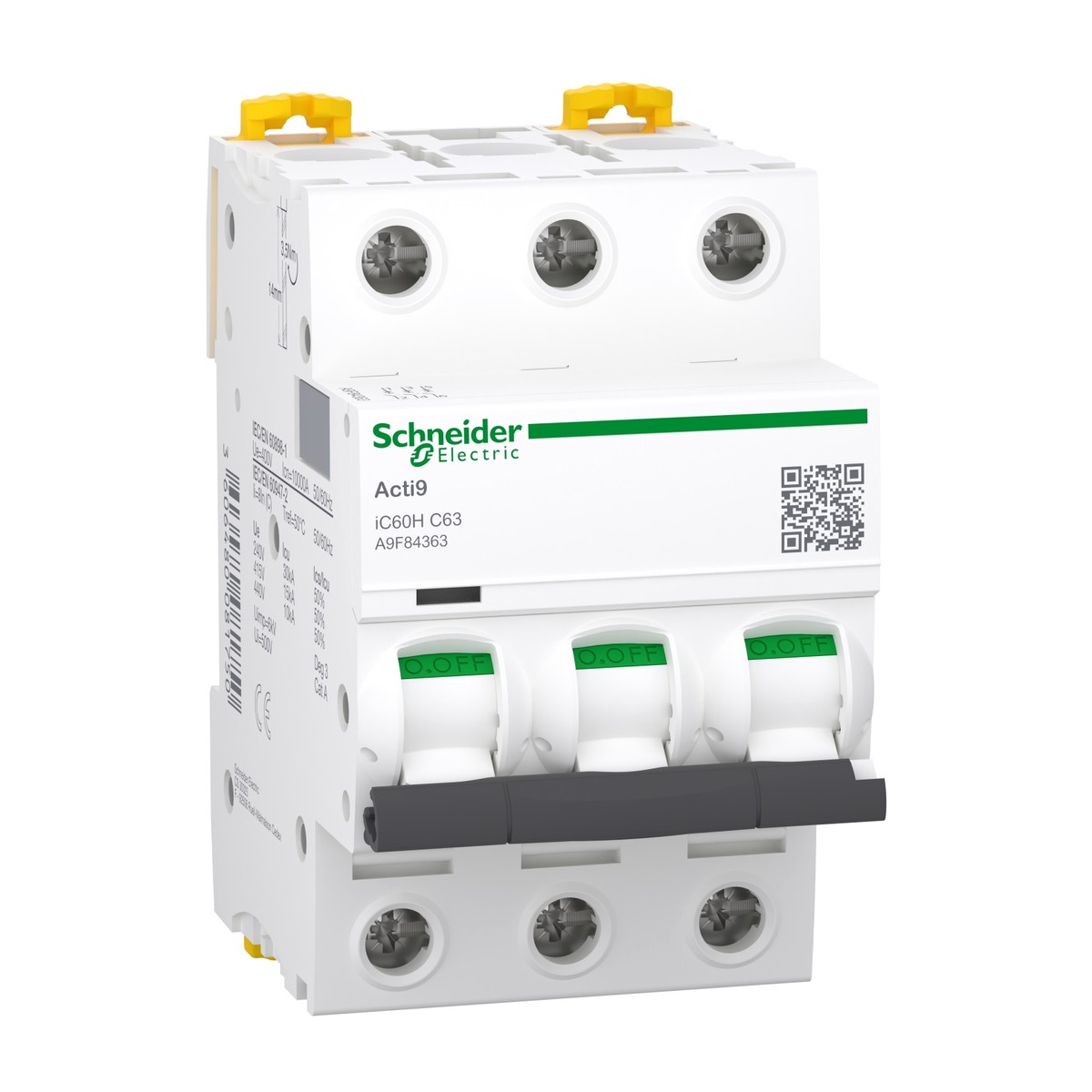

Schneider Electric A9F84363 Miniature circuit breaker, Acti9 iC60H, 3P, 63A, C curve. The Schneider Electric A9F84363 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 3-pole device features a 63A rated current with a C tripping curve, making it ideal for a wide range of general-purpose applications. Engineered for both AC and DC networks, it offers exceptional versatility. Key breaking capacities include 10000 A Icn at 400 V AC conforming to EN/IEC 60898-1 and 15 KA Icu at 380-415 V AC conforming to EN/IEC 60947-2, ensuring high performance and safety. Mounting easily on a 35 mm DIN rail, the Schneider Electric A9F84363 is suitable for diverse industrial and commercial environments. Its thermal-magnetic trip unit technology provides effective overcurrent and short-circuit protection. This MCB operates across a wide temperature range of -35…70 °C and holds an IP20 degree of protection. It is a critical component for safeguarding electrical installations in sectors such as cement production, oil and gas, water treatment, food and beverage, textiles, and various building services across Egypt and the Gulf region.
Details
- Brand: Schneider Electric
- Part number: A9F84363
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84416 — iC60H Miniature Circuit Breaker, 4P, 16A, C Curve
- Schneider Electric A9F84440 — Miniature circuit breaker, iC60H, 4P, 40A, C curve
- Schneider Electric A9F84450 — Miniature circuit breaker, Acti9 iC60H, 4P, 50A, C-curve
- Schneider Electric A9F84463 — Acti9 iC60H Miniature Circuit Breaker, 4P, 63A, C curve
- Schneider Electric A9F85101 — Acti9 iC60H Miniature Circuit Breaker 1P 1A D-Curve
- Schneider Electric A9F85110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A D-Curve
- Schneider Electric A9F85120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A D-Curve
- Schneider Electric A9F85163 — Miniature Circuit Breaker iC60H 1P 63A D-Curve
- Schneider Electric A9F85225 — iC60H 2P 25A D-Curve Miniature Circuit Breaker
- Schneider Electric A9F85240 — Miniature Circuit Breaker (MCB), Acti9 iC60H, 2P, 40A, D curve
- Schneider Electric A9F85250 — Acti9 iC60H Miniature Circuit Breaker, 2P, 50A, D-curve
- Schneider Electric A9F85263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A D-curve
Specifications
- Depth
- 78.5 mm
- Width
- 54 mm
- Height
- 85 mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.375 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F84363
- Product or component type
- Miniature circuit-breaker
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
