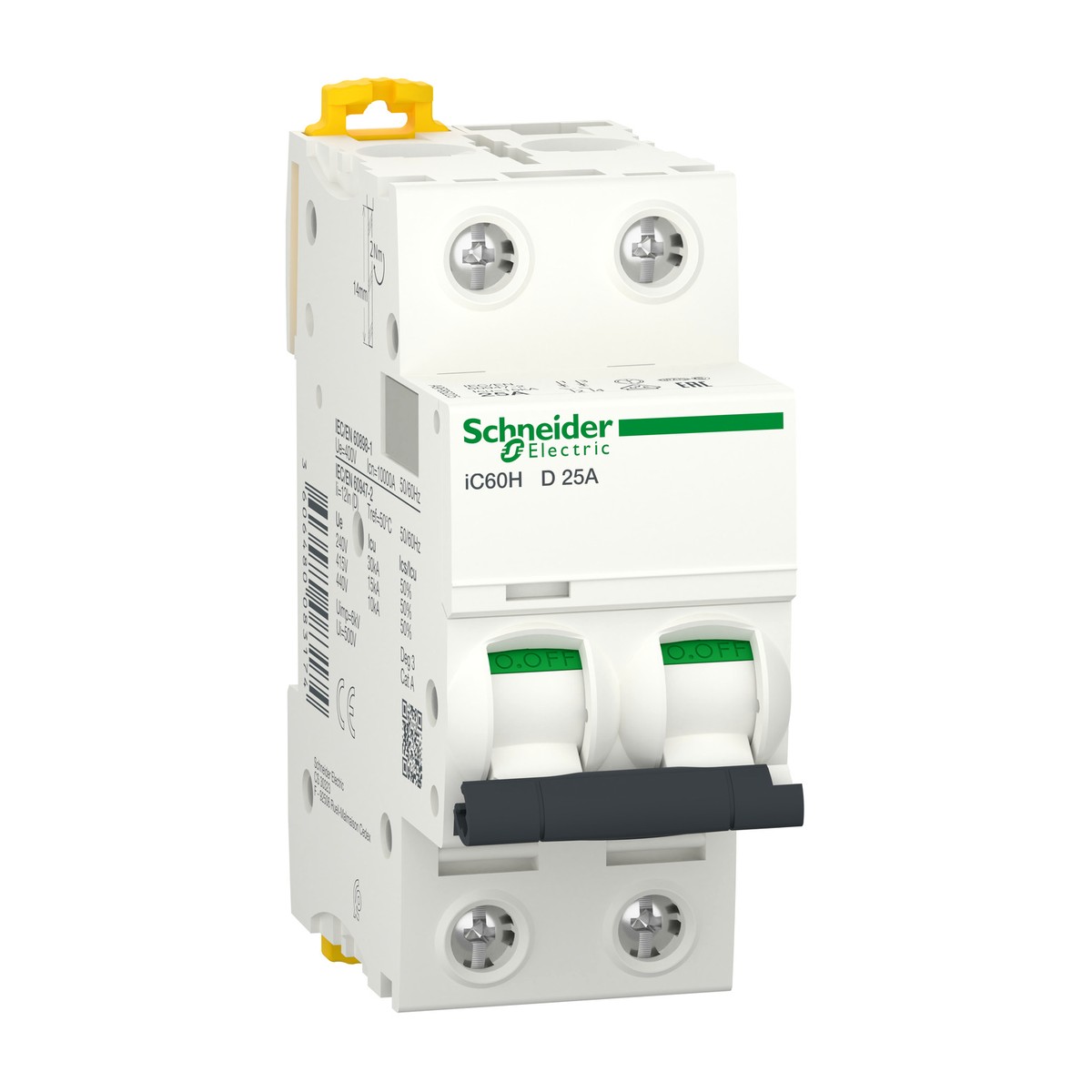

Schneider Electric A9F85225 iC60H 2P 25A D-Curve Miniature Circuit Breaker. The Schneider Electric A9F85225 is a robust and reliable miniature circuit breaker from the Acti9 iC60 series, designed for effective protection in final distribution circuits. This 2-pole, 25A MCB features a D-curve thermal-magnetic tripping mechanism, ideal for loads with high inrush currents. It offers a formidable breaking capacity of 10000 A according to IEC/EN 60898-1 at 400V AC, and 15 kA per IEC/EN 60947-2 at 380-415V AC, making it perfectly suited for the 50/60 Hz power systems prevalent in Egypt and the Gulf region. Furthermore, it supports DC networks up to 125V DC. With suitability for isolation and a wide operating temperature range of -35 to 70 °C, this DIN-rail mountable device ensures safety and operational continuity. Its IP20 protection and compact dimensions (36mm width) allow for easy integration into modular enclosures. This Schneider Electric A9F85225 MCB is essential for safeguarding electrical circuits in various industrial and commercial settings, including critical infrastructure in oil and gas, water treatment plants, manufacturing facilities, and building services. Engineered for high performance and durability, it ensures efficient protection and operational reliability.
Details
- Brand: Schneider Electric
- Part number: A9F85225
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85240 — Miniature Circuit Breaker (MCB), Acti9 iC60H, 2P, 40A, D curve
- Schneider Electric A9F85250 — Acti9 iC60H Miniature Circuit Breaker, 2P, 50A, D-curve
- Schneider Electric A9F85263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A D-curve
- Schneider Electric A9F85303 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 3A D-Curve
- Schneider Electric A9F85306 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85310 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85325 — Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F85340 — Acti9 iC60H Miniature Circuit Breaker 3P 40A D-Curve
- Schneider Electric A9F85363 — Miniature circuit breaker (MCB) iC60H, 3P, 63A, D curve
- Schneider Electric A9F85425 — Miniature circuit breaker MCB Acti9 iC60H 4P 25A D curve
- Schneider Electric A9F88106 — Acti9 iC60H Miniature circuit breaker (MCB), 1P 6A, B curve
- Schneider Electric A9F88116 — iC60H Miniature Circuit Breaker, 1P 16A B-Curve
Specifications
- Depth
- 78.5 mm
- Poles
- 2P
- Width
- 36 mm
- Height
- 85 mm
- Mounting
- 35 mm DIN Rail
- Net Weight
- 0.25 kg
- Trip Curve
- D
- Network Type
- AC, DC
- Rated Current
- 25 A
- Network Frequency
- 50/60 Hz
- Operating Temperature
- -35 to 70 °C
- IP Degree of Protection
- IP20
- Manufacturer part number
- A9F85225
- Suitability for Isolation
- Yes
- Terminal Capacity (Rigid)
- 1-25 mm²
- Rated Operational Voltage AC
- 12-440 V AC 50/60 Hz
- Rated Operational Voltage DC
- <= 125 V DC
- Terminal Capacity (Flexible)
- 1-16 mm²
- Breaking Capacity (IEC/EN 60898-1)
- 10000 A (at 400 V AC)
- Breaking Capacity (IEC/EN 60947-2)
- 15 kA (at 380-415 V AC), 15 kA (at <= 125 V DC)
