A9F85303

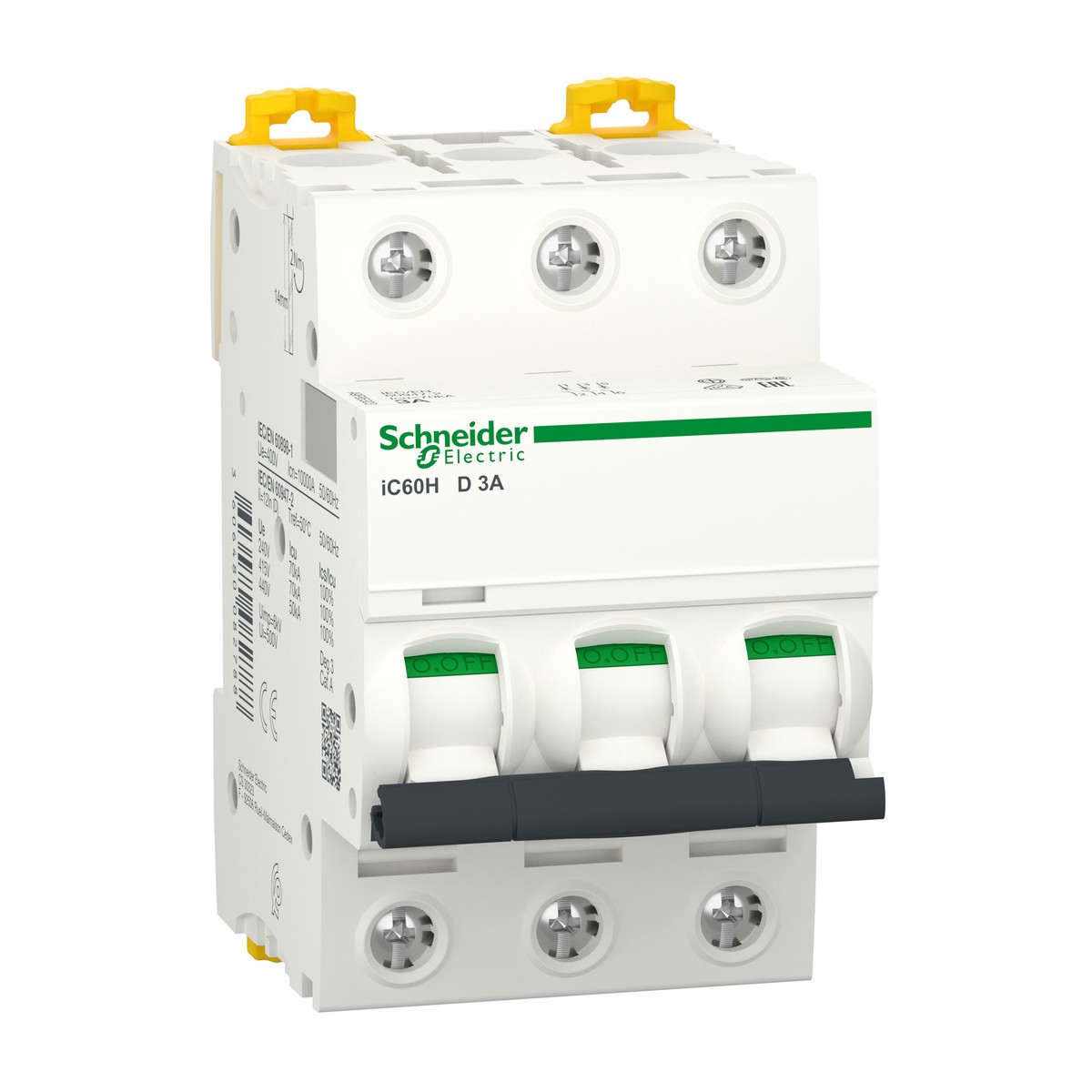

Schneider Electric A9F85303 Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 3A D-Curve. The Schneider Electric A9F85303 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB), engineered for reliable protection and isolation in electrical distribution circuits. This 3-pole, 3A, D-curve MCB provides superior thermal-magnetic protection against overcurrents and short-circuits. With a high breaking capacity of 10000A conforming to IEC/EN 60898-1 and 70kA conforming to IEC/EN 60947-2, it ensures system integrity under fault conditions. Designed for both AC and DC networks operating at 50/60 Hz, the A9F85303 is compatible with common regional voltages including 220-240 V AC and 380-415 V AC, making it ideal for the Middle East market. Its DIN-rail mountable design and wide operational temperature range (-35 to 70 °C) offer versatile application. This MCB is essential for critical infrastructure in Egypt and the Gulf, finding extensive use in industries such as oil and gas, cement, water treatment, food and beverage, textiles, and building services. To secure your electrical systems with the Schneider Electric A9F85303, please request a quote today.
Details
- Brand: Schneider Electric
- Part number: A9F85303
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85306 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85310 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85325 — Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F85340 — Acti9 iC60H Miniature Circuit Breaker 3P 40A D-Curve
- Schneider Electric A9F85363 — Miniature circuit breaker (MCB) iC60H, 3P, 63A, D curve
- Schneider Electric A9F85425 — Miniature circuit breaker MCB Acti9 iC60H 4P 25A D curve
- Schneider Electric A9F88106 — Acti9 iC60H Miniature circuit breaker (MCB), 1P 6A, B curve
- Schneider Electric A9F88116 — iC60H Miniature Circuit Breaker, 1P 16A B-Curve
- Schneider Electric A9F88140 — Acti9 iC60H Miniature Circuit Breaker 1P 40A B-curve
- Schneider Electric A9F88206 — Acti9 iC60H Miniature Circuit Breaker 2P 6A B-Curve
- Schneider Electric A9F88306 — Miniature circuit breaker Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F88310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B Curve
Specifications
- Depth
- 78.5 mm
- Width
- 54 mm
- Height
- 85 mm
- Curve code
- D
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Breaking capacity
- 10000 A (IEC/EN 60898-1), 70 kA (IEC/EN 60947-2)
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 3 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F85303
- Cable connection capacity
- 1…25 mm² rigid, 1…16 mm² flexible
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Ambient air temperature for operation
- -35…70 °C
