Schneider Electric A9F88116 Miniature Circuit Breaker

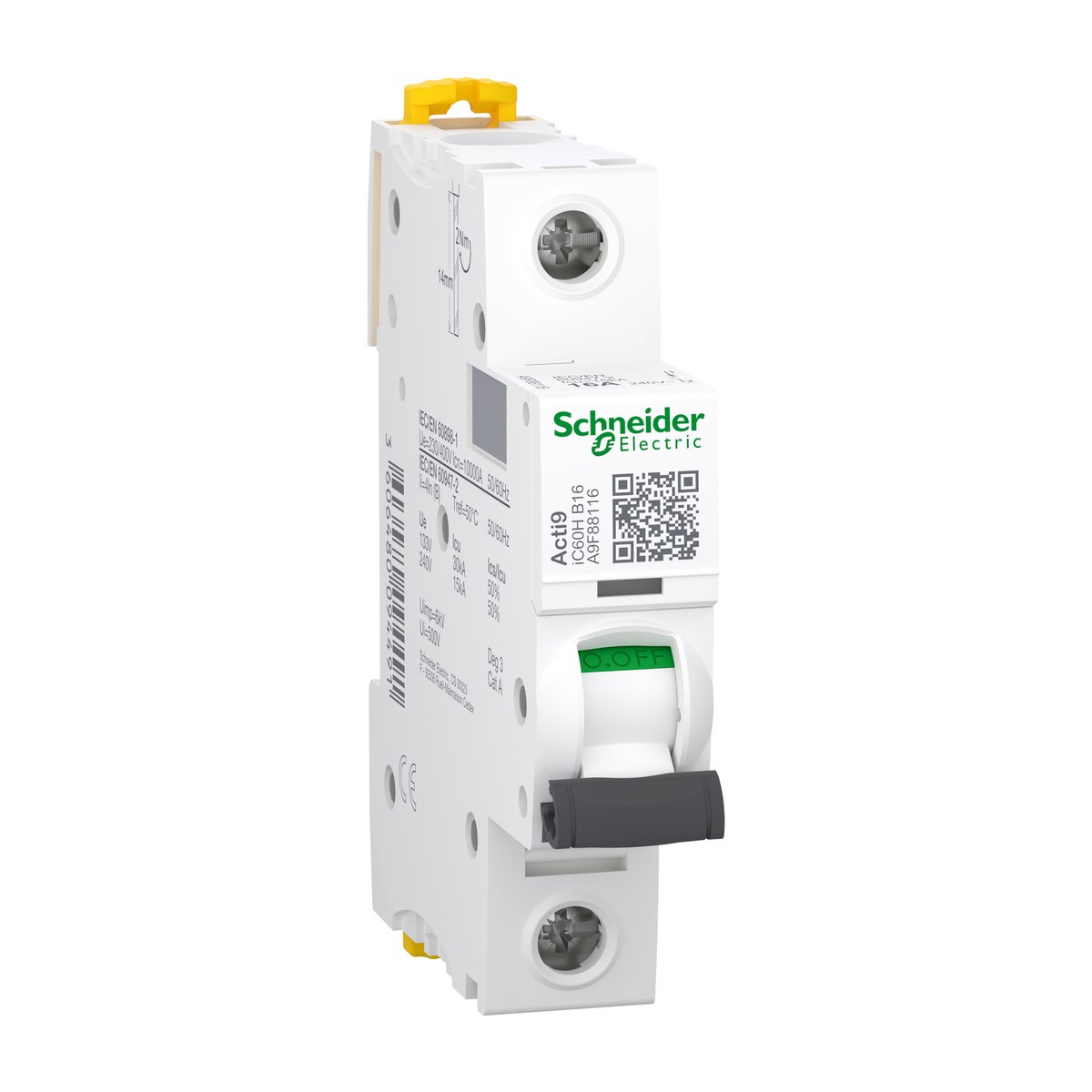

Schneider Electric A9F88116 iC60H Miniature Circuit Breaker, 1P 16A B-Curve. The Schneider Electric A9F88116 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable overcurrent protection in final distribution circuits. This 1-pole (1P) device offers a rated current of 16A with a B tripping curve, making it suitable for a wide range of general-purpose applications. Engineered for both AC and DC networks, it supports operational voltages including 220-240 V AC 50/60 Hz, crucial for installations across Egypt and the Gulf region. Various DC voltage levels are also supported. Its robust thermal-magnetic trip unit ensures dependable protection against short circuits and overloads. With impressive breaking capacities of 10000 A (IEC/EN 60898-1) and 15 kA (IEC/EN 60947-2) at 220-240 V AC, the A9F88116 provides enhanced safety and system integrity. This DIN-rail mountable MCB features an IP20 degree of protection and operates effectively in ambient temperatures from -35 to 70 °C. It's an ideal component for diverse industrial and commercial sectors, including building services, water treatment plants, and food and beverage facilities throughout Egypt and the Gulf, ensuring the safety and continuity of electrical operations.
Details
- Brand: Schneider Electric
- Part number: A9F88116
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F88140 — Acti9 iC60H Miniature Circuit Breaker 1P 40A B-curve
- Schneider Electric A9F88206 — Acti9 iC60H Miniature Circuit Breaker 2P 6A B-Curve
- Schneider Electric A9F88306 — Miniature circuit breaker Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F88310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B Curve
- Schneider Electric A9F88325 — Acti9 iC60H 3P 25A B-curve Miniature Circuit Breaker
- Schneider Electric A9F88340 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 40A B-Curve
- Schneider Electric A9F88410 — Acti9 iC60H 4P 10A B-curve Miniature Circuit Breaker
- Schneider Electric A9F88416 — Acti9 iC60H 4P 16A B-curve MCB 10000A (IEC/EN 60898-1)
- Schneider Electric A9F88420 — Miniature Circuit Breaker (MCB) iC60H 4P 20A B-curve
- Schneider Electric A9F88432 — Acti9 iC60H Miniature Circuit Breaker 4P 32A B-curve
- Schneider Electric A9F88440 — Acti9 iC60H Miniature Circuit Breaker, 4P, 40A, B curve
- Schneider Electric A9F88450 — Acti9 iC60H Miniature Circuit Breaker, 4P, 50A, B Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- B
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 2 N.M
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F88116
- Number of protected poles
- 1
- [Ue] rated operational voltage AC
- 220...240 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 kA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
