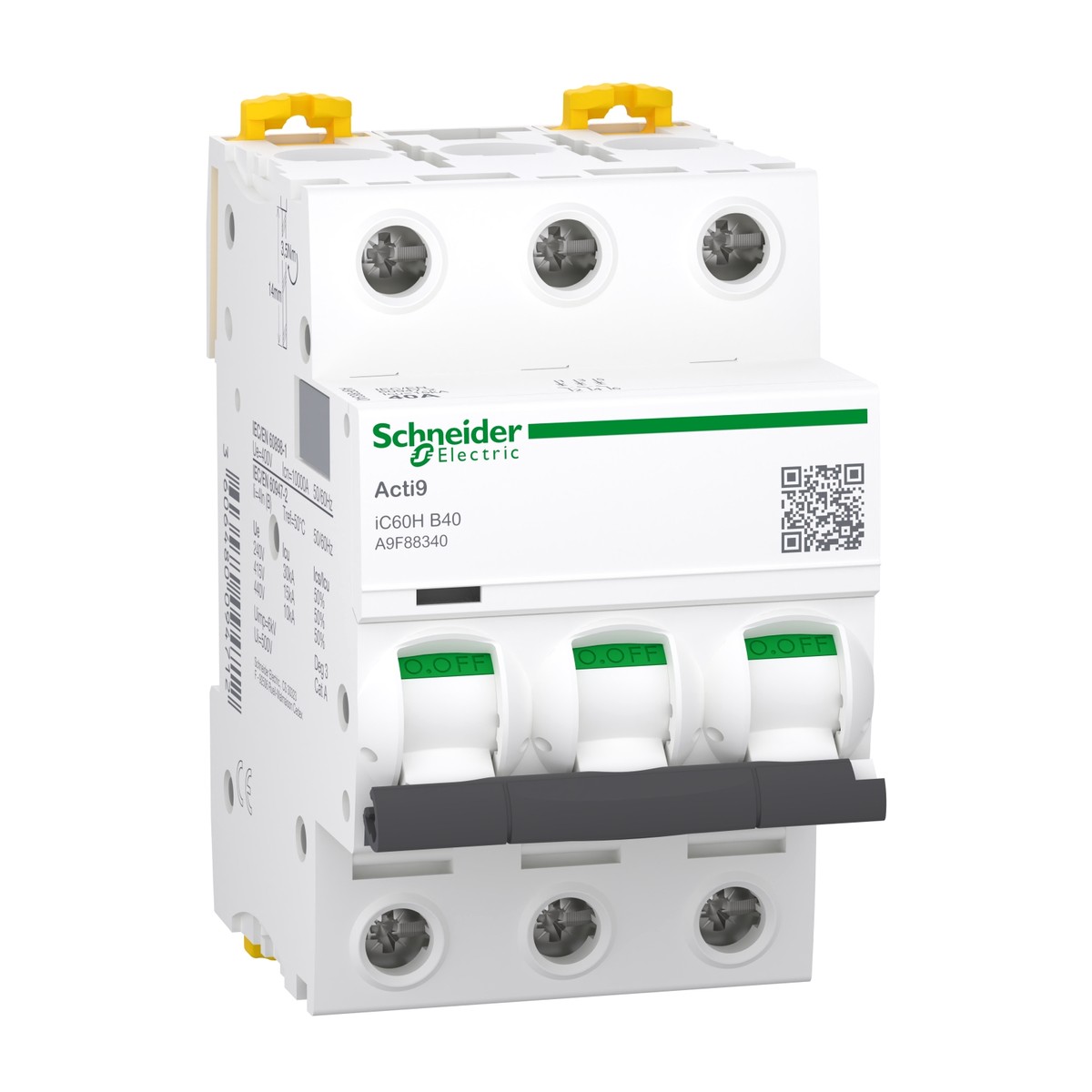

Schneider Electric A9F88340 Miniature Circuit Breaker
Schneider Electric A9F88340 Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 40A B-Curve. The Schneider Electric A9F88340 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable protection in final distribution circuits. This 3-pole (3P) thermal-magnetic breaker offers a rated current of 40A and features a B-curve tripping characteristic, making it suitable for general protection of loads with moderate inrush currents. Compliant with both EN/IEC 60898-1 and EN/IEC 60947-2 standards, it ensures high performance and safety. Key breaking capacities include 10000A (Icn) at 400V AC and 15kA (Icu) at 380-415V AC, perfectly suiting the electrical networks found across Egypt and the Gulf. It supports AC and DC networks with rated operational voltages up to 440V AC and 180V DC, and operates at 50/60 Hz. The device features a contact position indicator and mounts easily on a 35mm DIN rail. This MCB is an excellent choice for applications in building services, light industrial control panels, and various sectors such as water treatment, food and beverage, or commercial infrastructure within the region. For further details or to request a quote for the Schneider Electric A9F88340, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F88340
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F88410 — Acti9 iC60H 4P 10A B-curve Miniature Circuit Breaker
- Schneider Electric A9F88416 — Acti9 iC60H 4P 16A B-curve MCB 10000A (IEC/EN 60898-1)
- Schneider Electric A9F88420 — Miniature Circuit Breaker (MCB) iC60H 4P 20A B-curve
- Schneider Electric A9F88432 — Acti9 iC60H Miniature Circuit Breaker 4P 32A B-curve
- Schneider Electric A9F88440 — Acti9 iC60H Miniature Circuit Breaker, 4P, 40A, B curve
- Schneider Electric A9F88450 — Acti9 iC60H Miniature Circuit Breaker, 4P, 50A, B Curve
- Schneider Electric A9F89120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A C-Curve
- Schneider Electric A9F89132 — Acti9 iC60H 1P 32A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F89150 — Acti9 iC60H Miniature Circuit Breaker 1P 50A C-Curve
- Schneider Electric A9F89240 — Acti9 iC60H Miniature Circuit Breaker 2P 40A C-Curve
- Schneider Electric A9F89250 — Miniature Circuit Breaker Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F89263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C-curve
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Limitation class
- 3 conforming to EN/IEC 60898-1
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Dimensions (H x W x D)
- 85 Mm x 54 Mm x 78.5 Mm
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- A9F88340
- Number of protected poles
- 3
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
