Schneider Electric A9F88420 Miniature Circuit Breaker

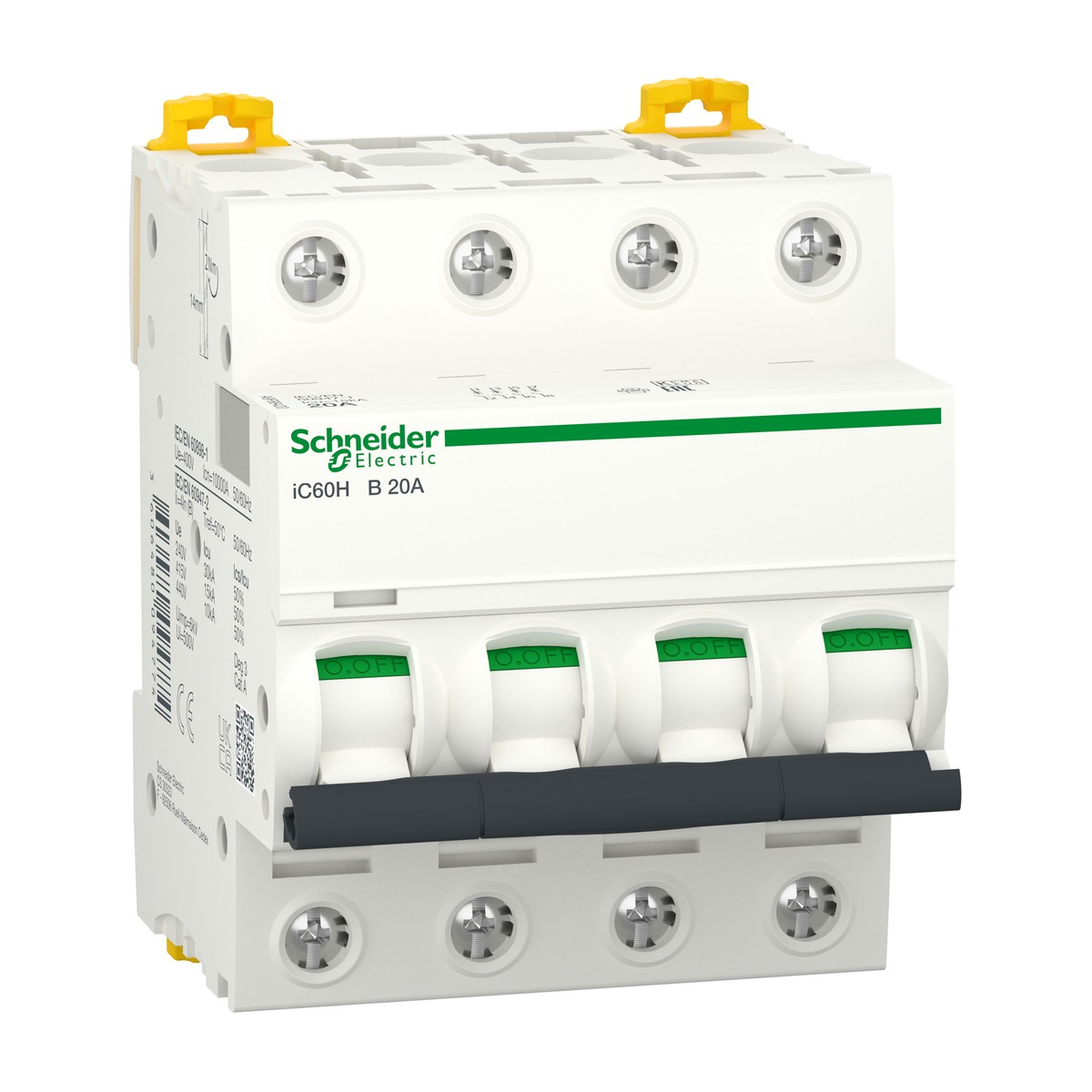

Schneider Electric A9F88420 Miniature Circuit Breaker (MCB) iC60H 4P 20A B-curve. The Schneider Electric A9F88420 is a 4-pole Miniature Circuit Breaker (MCB) from the Acti9 iC60H series, engineered for reliable overcurrent and short-circuit protection in final distribution circuits. This thermal-magnetic breaker, with its 20A rated current and B-curve trip characteristic, offers significant breaking capacities: 10000 A Icn at 400 V AC and 15 kA Icu at 380-415 V AC, compatible with both AC and DC networks (50/60 Hz). Designed for 35 mm DIN rail mounting with an IP20 rating, it operates efficiently from -35 to 70 °C, ideal for demanding regional conditions. This MCB is vital for safeguarding electrical installations across Egypt and the Gulf. Its compatibility with 380-415V AC systems makes it ideal for critical industrial applications such as oil & gas, water treatment, cement, food & beverage, and building services, ensuring safety and operational continuity.
Details
- Brand: Schneider Electric
- Part number: A9F88420
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F88432 — Acti9 iC60H Miniature Circuit Breaker 4P 32A B-curve
- Schneider Electric A9F88440 — Acti9 iC60H Miniature Circuit Breaker, 4P, 40A, B curve
- Schneider Electric A9F88450 — Acti9 iC60H Miniature Circuit Breaker, 4P, 50A, B Curve
- Schneider Electric A9F89120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A C-Curve
- Schneider Electric A9F89132 — Acti9 iC60H 1P 32A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F89150 — Acti9 iC60H Miniature Circuit Breaker 1P 50A C-Curve
- Schneider Electric A9F89240 — Acti9 iC60H Miniature Circuit Breaker 2P 40A C-Curve
- Schneider Electric A9F89250 — Miniature Circuit Breaker Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F89263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F89332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A C-Curve 10kA (IEC/EN 60898-1)
- Schneider Electric A9F89340 — Miniature Circuit Breaker Acti9 iC60H 3P 40A C-curve
- Schneider Electric A9F89350 — Acti9 iC60H 3P 50A C-curve Miniature Circuit Breaker
Specifications
- Depth
- 78.5 Mm
- Width
- 72 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Network type
- AC, DC
- Limitation class
- 3
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 20 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper; 1…16 mm², flexible, copper; 1…16 mm², flexible with ferrule, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F88420
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 250 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
