Schneider Electric A9F88450 Miniature Circuit Breaker

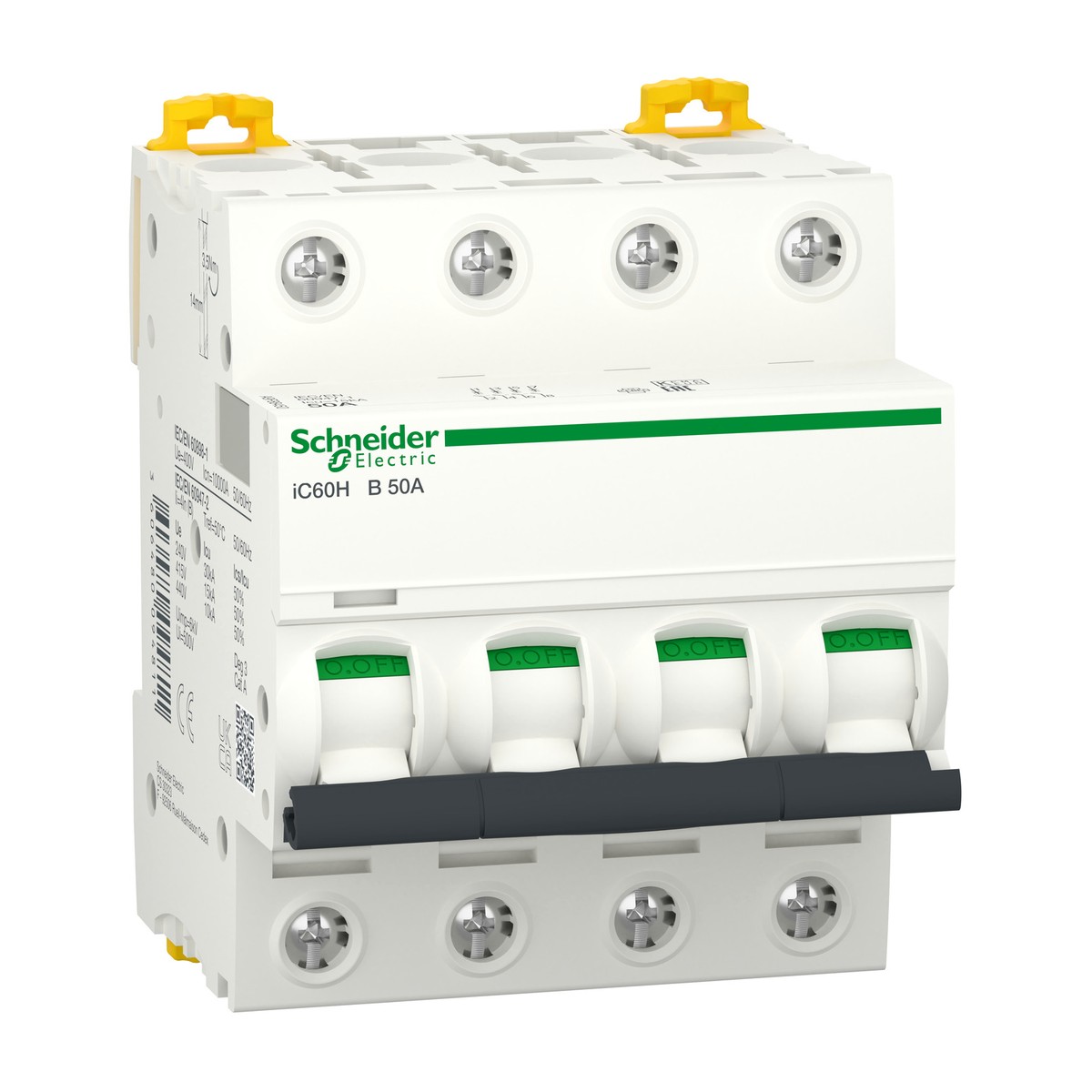

Schneider Electric A9F88450 Acti9 iC60H Miniature Circuit Breaker, 4P, 50A, B Curve. The Schneider Electric Acti9 iC60H Miniature Circuit Breaker (MCB) A9F88450 is a robust and reliable solution for protecting final distribution circuits in diverse environments. This 4-pole, 50A MCB features a B-curve thermal-magnetic trip unit, ensuring precise overcurrent and short-circuit protection for both AC and DC networks. It boasts impressive breaking capacities, including 10000 A Icn at 400 V AC (IEC/EN 60898-1) and 15 KA Icu at 380-415 V AC (IEC/EN 60947-2), making it suitable for demanding applications. With suitability for isolation and compliance with EN/IEC 60947-2 and EN/IEC 60898-1 standards, it guarantees safety and performance. Its DIN rail mounting simplifies installation, and an IP20 degree of protection (IP40 in modular enclosure) ensures durability. This versatile breaker is ideal for critical infrastructure in Egypt and the Gulf, including water treatment plants, oil and gas facilities, cement factories, food and beverage processing, textile manufacturing, and various building services.
Details
- Brand: Schneider Electric
- Part number: A9F88450
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F89120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A C-Curve
- Schneider Electric A9F89132 — Acti9 iC60H 1P 32A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F89150 — Acti9 iC60H Miniature Circuit Breaker 1P 50A C-Curve
- Schneider Electric A9F89240 — Acti9 iC60H Miniature Circuit Breaker 2P 40A C-Curve
- Schneider Electric A9F89250 — Miniature Circuit Breaker Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F89263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F89332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A C-Curve 10kA (IEC/EN 60898-1)
- Schneider Electric A9F89340 — Miniature Circuit Breaker Acti9 iC60H 3P 40A C-curve
- Schneider Electric A9F89350 — Acti9 iC60H 3P 50A C-curve Miniature Circuit Breaker
- Schneider Electric A9F89363 — Miniature Circuit Breaker Acti9 iC60H 3P 63A C-curve
- Schneider Electric A9R11280 — Acti9 iID Residual Current Circuit Breaker 2P 80A AC 30mA
- Schneider Electric A9R11440 — Acti9 iID Residual Current Circuit Breaker 4P 40A AC 30mA
Specifications
- Depth
- 78.5 Mm
- Width
- 72 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.5 Kg
- Network type
- DC, AC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 4P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…35 mm², rigid, copper; Single terminal (top or bottom), for 1.0 cable(s), 1…25 mm², flexible, copper
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F88450
- Number of protected poles
- 4
- Product or component type
- Miniature circuit-breaker
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- [Ue] rated operational voltage (AC)
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage (DC)
- <= 250 V DC
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (DC, EN/IEC 60947-2)
- 15 KA Icu at <= 250 V DC
