Schneider Electric A9F88416 Miniature Circuit Breaker

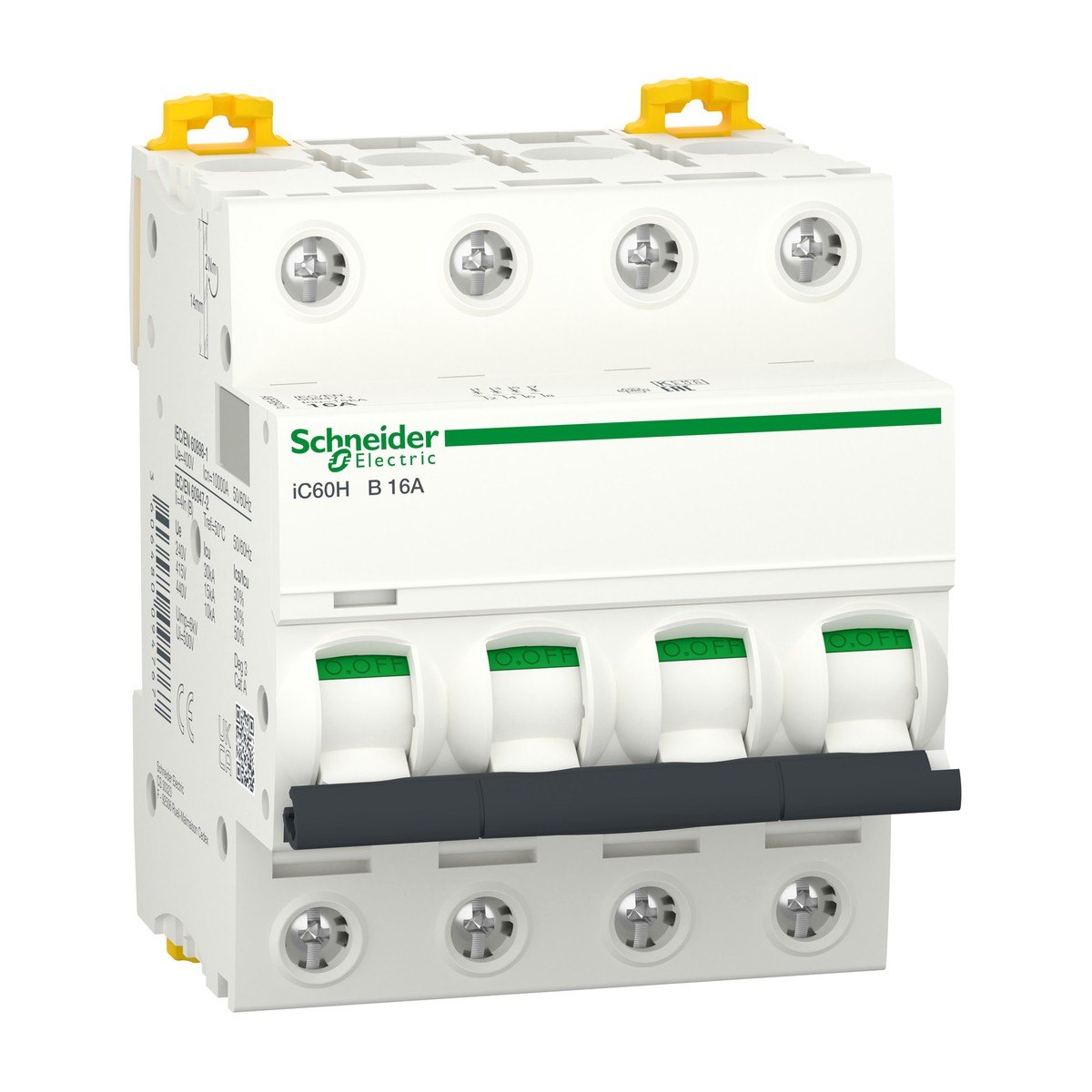

Schneider Electric A9F88416 Acti9 iC60H 4P 16A B-curve MCB 10000A (IEC/EN 60898-1). The Schneider Electric A9F88416 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable overcurrent and short-circuit protection in final distribution circuits. This 4-pole device features a 16A rated current with a B trip curve, making it suitable for a wide array of applications. Its thermal-magnetic trip unit technology ensures precise and dependable operation across both AC and DC networks, supporting operational voltages including 380-415V AC and up to 250V DC. With a breaking capacity of 10000A (IEC/EN 60898-1) at 400V AC and 15kA (IEC/EN 60947-2) at 380-415V AC, it provides excellent circuit protection. Designed for DIN rail mounting, the Schneider Electric A9F88416 offers IP20 protection and can operate in temperatures from -35 to 70 °C. It is ideal for industrial and commercial installations in Egypt and the Gulf, commonly found in sectors such as oil and gas, water treatment plants, cement production, and food and beverage facilities. Its suitability for isolation further enhances safety.
Details
- Brand: Schneider Electric
- Part number: A9F88416
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F88420 — Miniature Circuit Breaker (MCB) iC60H 4P 20A B-curve
- Schneider Electric A9F88432 — Acti9 iC60H Miniature Circuit Breaker 4P 32A B-curve
- Schneider Electric A9F88440 — Acti9 iC60H Miniature Circuit Breaker, 4P, 40A, B curve
- Schneider Electric A9F88450 — Acti9 iC60H Miniature Circuit Breaker, 4P, 50A, B Curve
- Schneider Electric A9F89120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A C-Curve
- Schneider Electric A9F89132 — Acti9 iC60H 1P 32A C-Curve Miniature Circuit Breaker
- Schneider Electric A9F89150 — Acti9 iC60H Miniature Circuit Breaker 1P 50A C-Curve
- Schneider Electric A9F89240 — Acti9 iC60H Miniature Circuit Breaker 2P 40A C-Curve
- Schneider Electric A9F89250 — Miniature Circuit Breaker Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F89263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C-curve
- Schneider Electric A9F89332 — Acti9 iC60H Miniature Circuit Breaker 3P 32A C-Curve 10kA (IEC/EN 60898-1)
- Schneider Electric A9F89340 — Miniature Circuit Breaker Acti9 iC60H 3P 40A C-curve
Specifications
- Depth
- 78.5 mm
- Width
- 72 mm
- Height
- 85 mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- B
- Net weight
- 0.5 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 4P
- [In] rated current
- 16 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Manufacturer part number
- A9F88416
- Number of protected poles
- 4
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, <= 250 V DC
- Connections - terminals (rigid)
- 1…25 mm²
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Connections - terminals (flexible)
- 1…16 mm²
- Ambient air temperature for operation
- -35…70 °C
