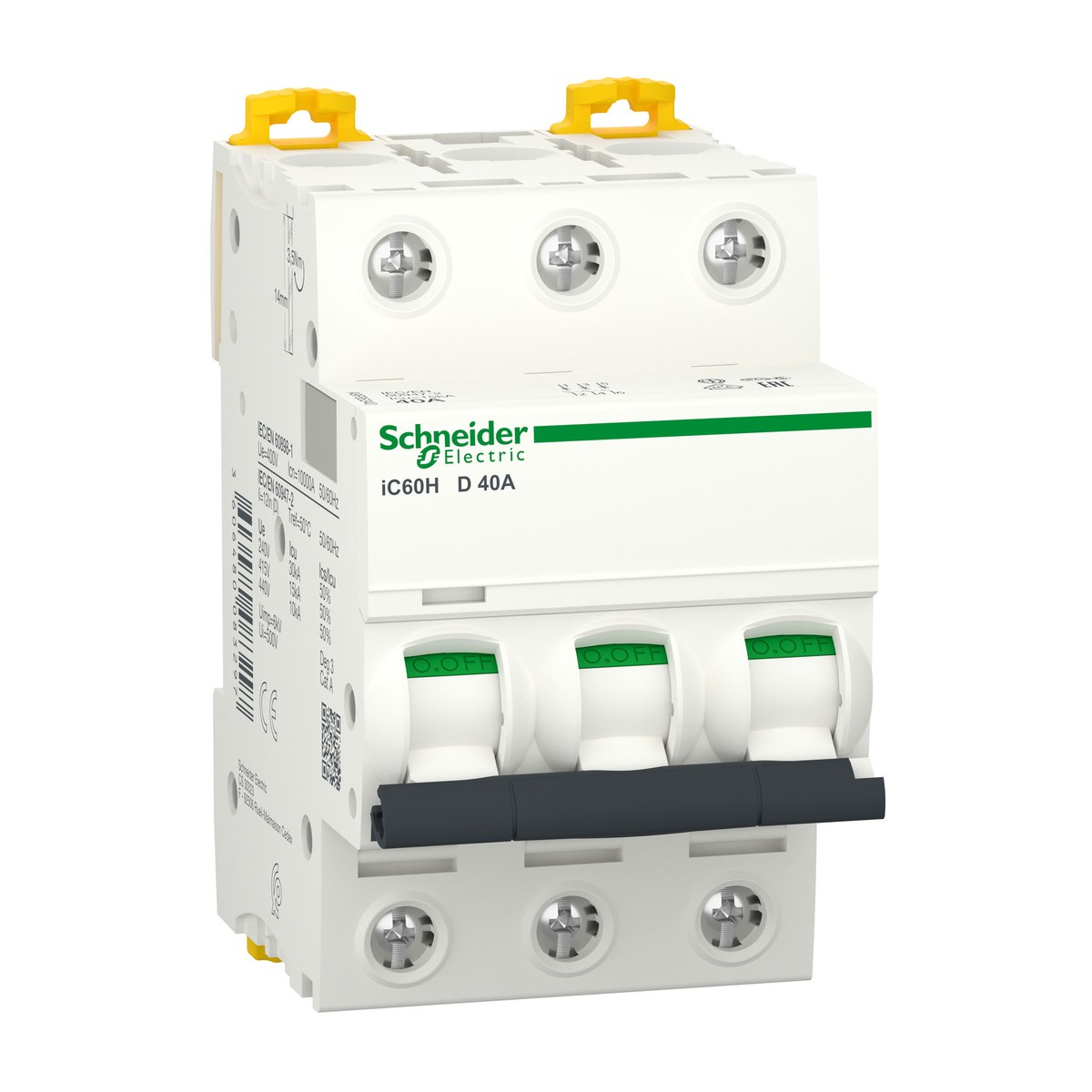

Schneider Electric A9F85340 Miniature Circuit Breaker
Schneider Electric A9F85340 Acti9 iC60H Miniature Circuit Breaker 3P 40A D-Curve. The Schneider Electric A9F85340 Acti9 iC60H Miniature Circuit Breaker provides essential protection for final distribution circuits in diverse electrical installations. This robust 3-pole (3P) MCB is rated at 40A with a D-curve trip characteristic, making it ideal for applications with high inrush currents such as motors and transformers. Engineered for reliability, it boasts a breaking capacity of 10000A (IEC/EN 60898-1 at 400 V AC) and 15kA (IEC/EN 60947-2 at 380-415 V AC), ensuring dependable fault interruption. Compatible with both AC and DC networks operating at 50/60 Hz, it offers flexible integration into various systems across Egypt and the Gulf. Key features include thermal-magnetic trip unit technology, suitability for isolation, and DIN rail mounting for straightforward installation. Its IP20 protection and wide operating temperature range (-35…70 °C) ensure performance in demanding conditions. This Schneider Electric A9F85340 MCB is well-suited for building services, water treatment facilities, food and beverage plants, and general industrial applications requiring superior circuit protection. For more information or to place an order, please request a quote.
Details
- Brand: Schneider Electric
- Part number: A9F85340
- Series: Acti9
- Category: Miniature Circuit Breaker
Category
Acti9 iC60 Miniature Circuit Breakers
Related Schneider Electric parts
- Schneider Electric A9F85363 — Miniature circuit breaker (MCB) iC60H, 3P, 63A, D curve
- Schneider Electric A9F85425 — Miniature circuit breaker MCB Acti9 iC60H 4P 25A D curve
- Schneider Electric A9F88106 — Acti9 iC60H Miniature circuit breaker (MCB), 1P 6A, B curve
- Schneider Electric A9F88116 — iC60H Miniature Circuit Breaker, 1P 16A B-Curve
- Schneider Electric A9F88140 — Acti9 iC60H Miniature Circuit Breaker 1P 40A B-curve
- Schneider Electric A9F88206 — Acti9 iC60H Miniature Circuit Breaker 2P 6A B-Curve
- Schneider Electric A9F88306 — Miniature circuit breaker Acti9 iC60H 3P 6A B-curve
- Schneider Electric A9F88310 — Acti9 iC60H Miniature Circuit Breaker 3P 10A B Curve
- Schneider Electric A9F88325 — Acti9 iC60H 3P 25A B-curve Miniature Circuit Breaker
- Schneider Electric A9F88340 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 40A B-Curve
- Schneider Electric A9F88410 — Acti9 iC60H 4P 10A B-curve Miniature Circuit Breaker
- Schneider Electric A9F88416 — Acti9 iC60H 4P 16A B-curve MCB 10000A (IEC/EN 60898-1)
Specifications
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- D
- Net weight
- 0.375 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 3P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 40 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Dimensions (H x W x D)
- 85 Mm x 54 Mm x 78.5 Mm
- IP degree of protection
- IP20 conforming to IEC 60529 (IP40 in modular enclosure (Insulation class II) conforming to IEC 60529)
- Manufacturer part number
- A9F85340
- Suitability for isolation
- Yes
- [Ue] rated operational voltage AC
- 12...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 180 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
