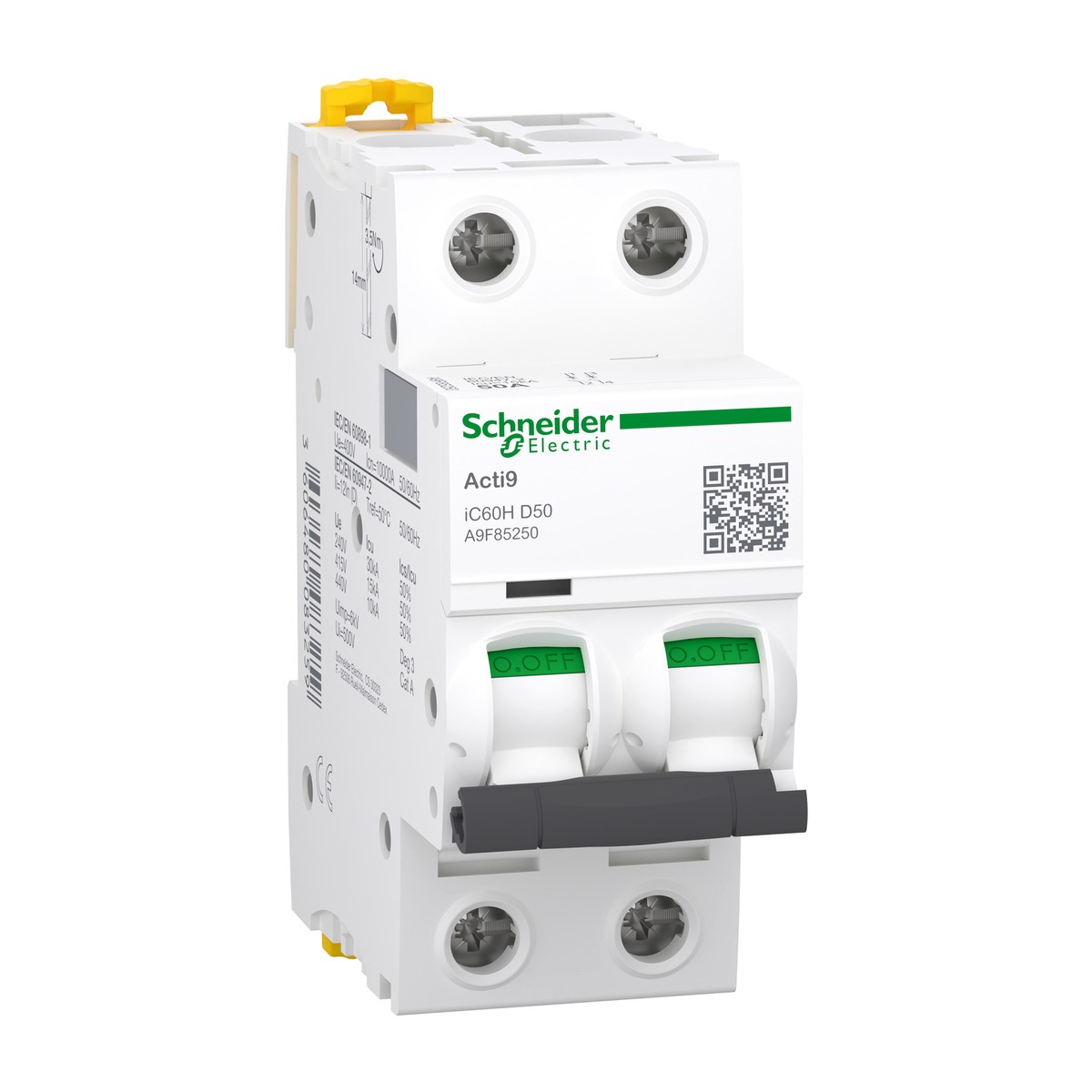

Schneider Electric A9F85250 Acti9 iC60H Miniature Circuit Breaker, 2P, 50A, D-curve. The Schneider Electric A9F85250 is an essential Acti9 iC60H Miniature Circuit Breaker designed for reliable protection in final distribution circuits. This robust 2-pole device features a 50A rated current and a D trip curve, ensuring effective safeguarding against overcurrents and short circuits in both AC and DC networks. It boasts impressive breaking capacities, including 10000A (Icn) at 400V AC conforming to EN/IEC 60898-1, and 15kA (Icu) at 380-415V AC conforming to EN/IEC 60947-2. For DC applications, it offers 15kA (Icu) at up to 125V DC. Utilising thermal-magnetic trip technology, the A9F85250 provides precise and dependable operation. Its DIN rail mounting and suitability for isolation (conforming to EN/IEC 60947-2 and 60898-1) make it versatile for various installations. This Schneider Electric MCB is ideal for industrial and commercial environments across Egypt and the Gulf, commonly found in applications such as cement manufacturing, oil and gas facilities, water treatment plants, food and beverage processing, and critical building services infrastructure.
Details
- Brand: Schneider Electric
- Part number: A9F85250
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F85263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A D-curve
- Schneider Electric A9F85303 — Miniature Circuit Breaker (MCB) Acti9 iC60H 3P 3A D-Curve
- Schneider Electric A9F85306 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85310 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F85325 — Miniature Circuit Breaker 3P 25A D-Curve
- Schneider Electric A9F85340 — Acti9 iC60H Miniature Circuit Breaker 3P 40A D-Curve
- Schneider Electric A9F85363 — Miniature circuit breaker (MCB) iC60H, 3P, 63A, D curve
- Schneider Electric A9F85425 — Miniature circuit breaker MCB Acti9 iC60H 4P 25A D curve
- Schneider Electric A9F88106 — Acti9 iC60H Miniature circuit breaker (MCB), 1P 6A, B curve
- Schneider Electric A9F88116 — iC60H Miniature Circuit Breaker, 1P 16A B-Curve
- Schneider Electric A9F88140 — Acti9 iC60H Miniature Circuit Breaker 1P 40A B-curve
- Schneider Electric A9F88206 — Acti9 iC60H Miniature Circuit Breaker 2P 6A B-Curve
Specifications
- Depth
- 78.5 Mm
- Width
- 36 Mm
- Height
- 85 Mm
- Curve code
- D
- Net weight
- 0.25 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Poles description
- 2P
- [In] rated current
- 50 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F85250
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- Max rigid cable connection
- 50 mm² (with accessory)
- Max flexible cable connection
- 25 mm² (with ferrule)
- [Ue] rated operational voltage AC
- 12...440 V AC 50/60 Hz
- [Ue] rated operational voltage DC
- <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
- Breaking capacity (IEC/EN 60947-2) AC
- 15 KA Icu at 380...415 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2) DC
- 15 KA Icu at <= 125 V DC
