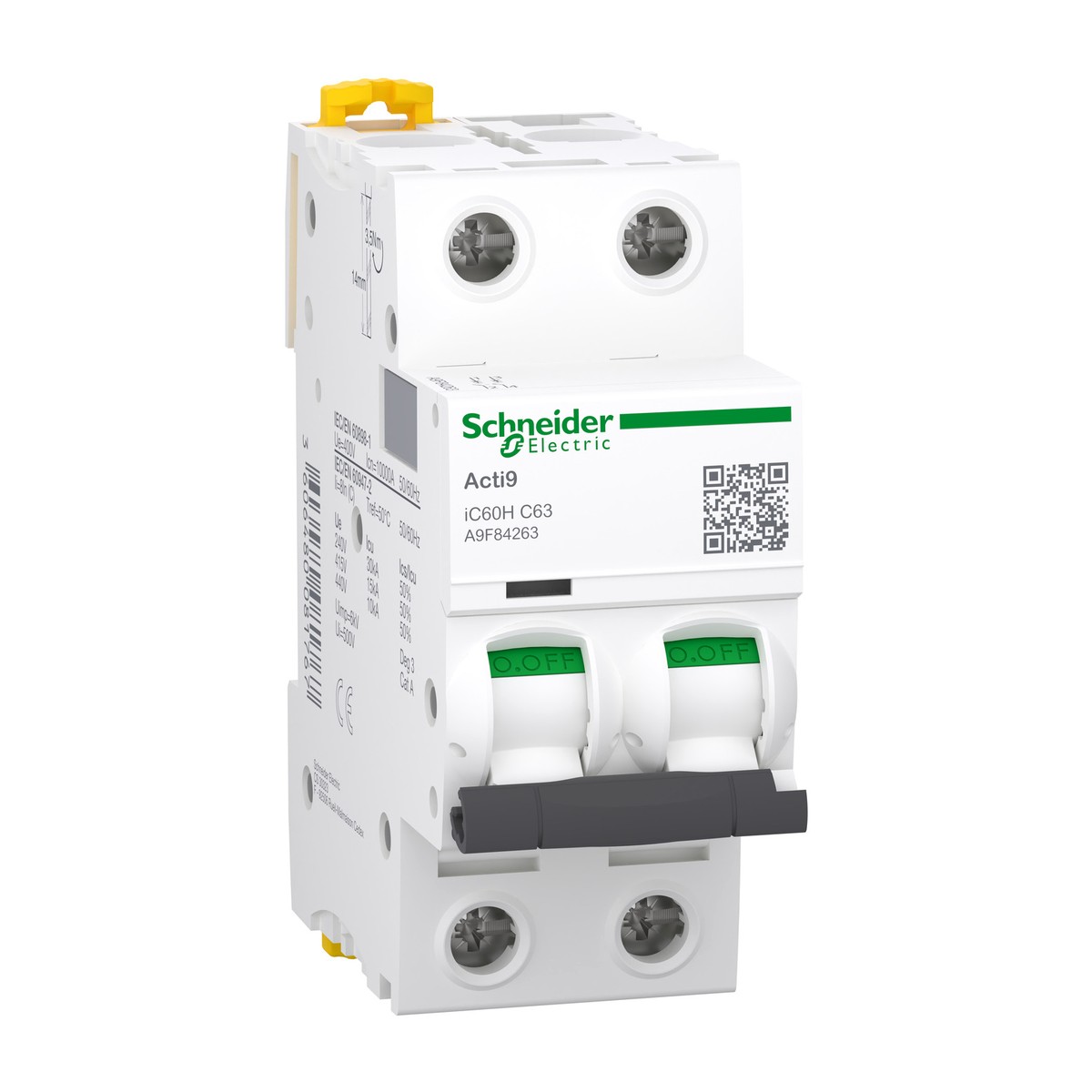

Schneider Electric A9F84263 Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve. The Schneider Electric A9F84263 is a robust Acti9 iC60H Miniature Circuit Breaker (MCB), engineered for reliable protection in final distribution circuits. This 2-pole, 63A MCB features a C-curve thermal-magnetic trip unit, providing effective overload and short-circuit protection for both AC and DC networks. It boasts a breaking capacity of 10000A (IEC/EN 60898-1) at 400V AC and 15kA (IEC/EN 60947-2) at 380-415V AC, alongside compatibility with operational voltages including 220-240V AC, 380-415V AC, and up to 125V DC, making it highly versatile for various electrical systems. Designed for easy installation on a 35mm DIN rail, this device ensures robust performance with an IP20 degree of protection (IP40 in modular enclosures). Its wide operating temperature range of -35 to 70 °C, coupled with excellent mechanical and electrical durability, guarantees sustained operation in demanding environments. Ideal for commercial, residential, and light industrial applications across Egypt and the Gulf, including building services, HVAC systems, water treatment plants, and general power distribution, the A9F84263 ensures critical circuit safety and compliance.
Details
- Brand: Schneider Electric
- Part number: A9F84263
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
- Schneider Electric A9F84350 — Acti9 iC60H Miniature Circuit Breaker 3P 50A C-curve
- Schneider Electric A9F84363 — Miniature circuit breaker, Acti9 iC60H, 3P, 63A, C curve
- Schneider Electric A9F84416 — iC60H Miniature Circuit Breaker, 4P, 16A, C Curve
- Schneider Electric A9F84440 — Miniature circuit breaker, iC60H, 4P, 40A, C curve
- Schneider Electric A9F84450 — Miniature circuit breaker, Acti9 iC60H, 4P, 50A, C-curve
- Schneider Electric A9F84463 — Acti9 iC60H Miniature Circuit Breaker, 4P, 63A, C curve
- Schneider Electric A9F85101 — Acti9 iC60H Miniature Circuit Breaker 1P 1A D-Curve
- Schneider Electric A9F85110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A D-Curve
- Schneider Electric A9F85120 — Miniature Circuit Breaker (MCB) Acti9 iC60H 1P 20A D-Curve
- Schneider Electric A9F85163 — Miniature Circuit Breaker iC60H 1P 63A D-Curve
Specifications
- Curve code
- C
- Network type
- AC; DC
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 2P
- Tightening torque
- 3.5 N.M top or bottom
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- Electrical durability
- 10000 Cycles
- Mechanical durability
- 20000 Cycles
- Connections - terminals
- Single terminal (top or bottom) , for 1 cable(s) , 1…35 mm², rigid, copper
- IP degree of protection
- IP20; IP40 in modular enclosure (Insulation class II)
- Manufacturer part number
- A9F84263
- Number of protected poles
- 2
- [Ue] rated operational voltage
- 12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 125 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 400 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 380-415 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
