A9F84163

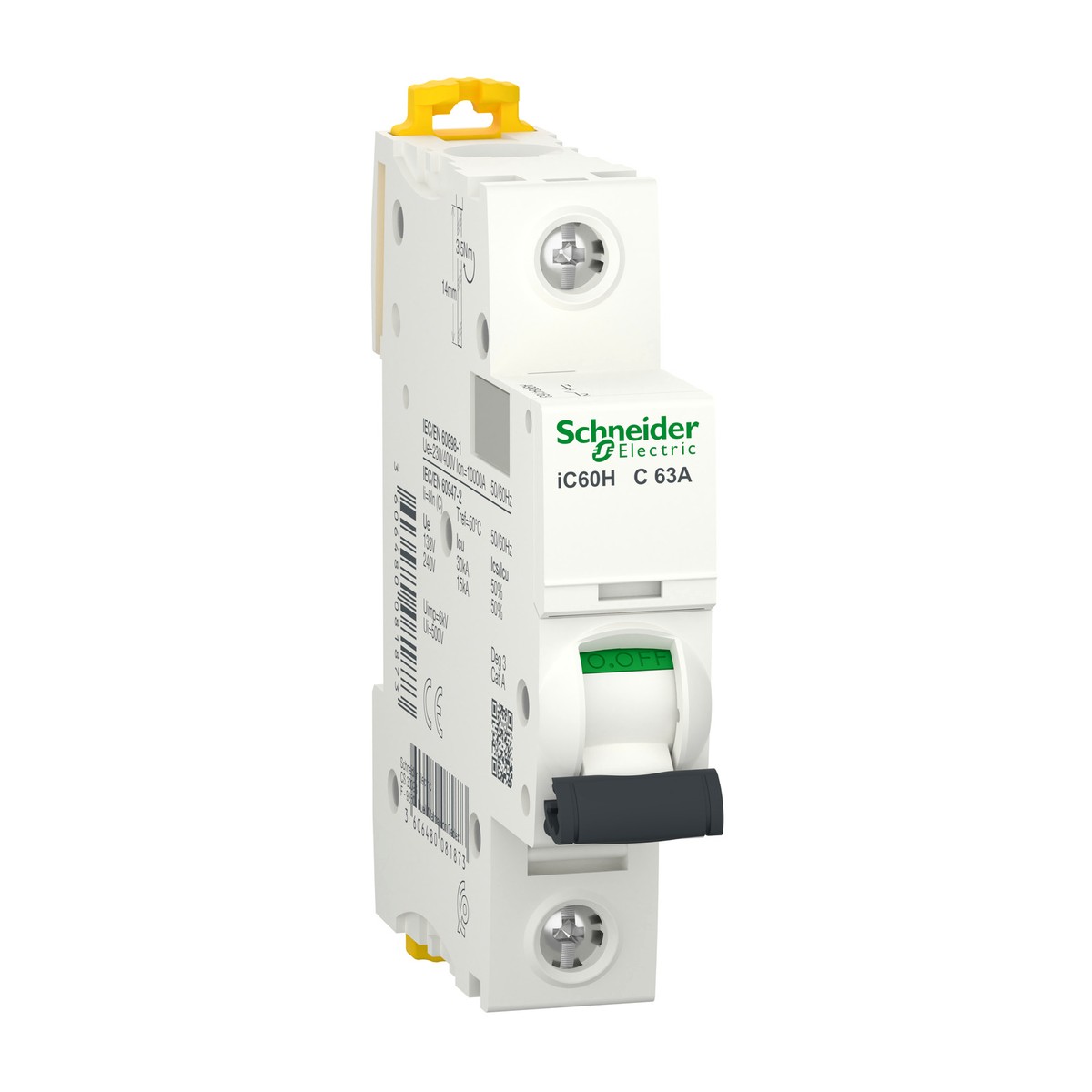

Schneider Electric A9F84163 Miniature Circuit Breaker (MCB), 1-Pole, 63A, C-curve. The Schneider Electric A9F84163 is a high-performance 1-pole Miniature Circuit Breaker (MCB) from the renowned Acti9 iC60H series, designed for effective protection in final distribution circuits. This 63A MCB features a C-curve thermal-magnetic trip unit, ensuring reliable overcurrent and short-circuit protection for both AC and DC networks. It boasts impressive breaking capacities, including 15 kA Icu at 220-240 V AC (conforming to EN/IEC 60947-2) and 10000 A Icn at 230 V AC (conforming to EN/IEC 60898-1), making it highly suitable for the electrical standards in Egypt and the Gulf. Engineered for durability and ease of installation, the Schneider Electric A9F84163 mounts seamlessly on a 35 mm DIN rail and offers an IP20 degree of protection, with IP40 when installed in a modular enclosure. Its robust design supports operation in ambient temperatures from -35 to 70 °C, ensuring consistent performance in diverse environments. This MCB is an ideal choice for a wide array of applications in the region, including building services, light industrial setups, water treatment plants, and food and beverage facilities, where safety and operational continuity are paramount.
Details
- Brand: Schneider Electric
- Part number: A9F84163
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84204 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84216 — Acti9 iC60H Miniature Circuit Breaker (MCB) 2P 16A C-curve
- Schneider Electric A9F84220 — Acti9 iC60H MCB, 2P, 20A, C curve
- Schneider Electric A9F84250 — Miniature Circuit Breaker (MCB) Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F84263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
- Schneider Electric A9F84350 — Acti9 iC60H Miniature Circuit Breaker 3P 50A C-curve
- Schneider Electric A9F84363 — Miniature circuit breaker, Acti9 iC60H, 3P, 63A, C curve
- Schneider Electric A9F84416 — iC60H Miniature Circuit Breaker, 4P, 16A, C Curve
- Schneider Electric A9F84440 — Miniature circuit breaker, iC60H, 4P, 40A, C curve
- Schneider Electric A9F84450 — Miniature circuit breaker, Acti9 iC60H, 4P, 50A, C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Standards
- EN/IEC 60947-2, EN/IEC 60898-1
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- [In] rated current
- 63 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 conforming to IEC 60529, IP40 in modular enclosure (Insulation class II) conforming to IEC 60529
- Manufacturer part number
- A9F84163
- Number of protected poles
- 1
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2, Yes conforming to EN/IEC 60898-1
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 kA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
