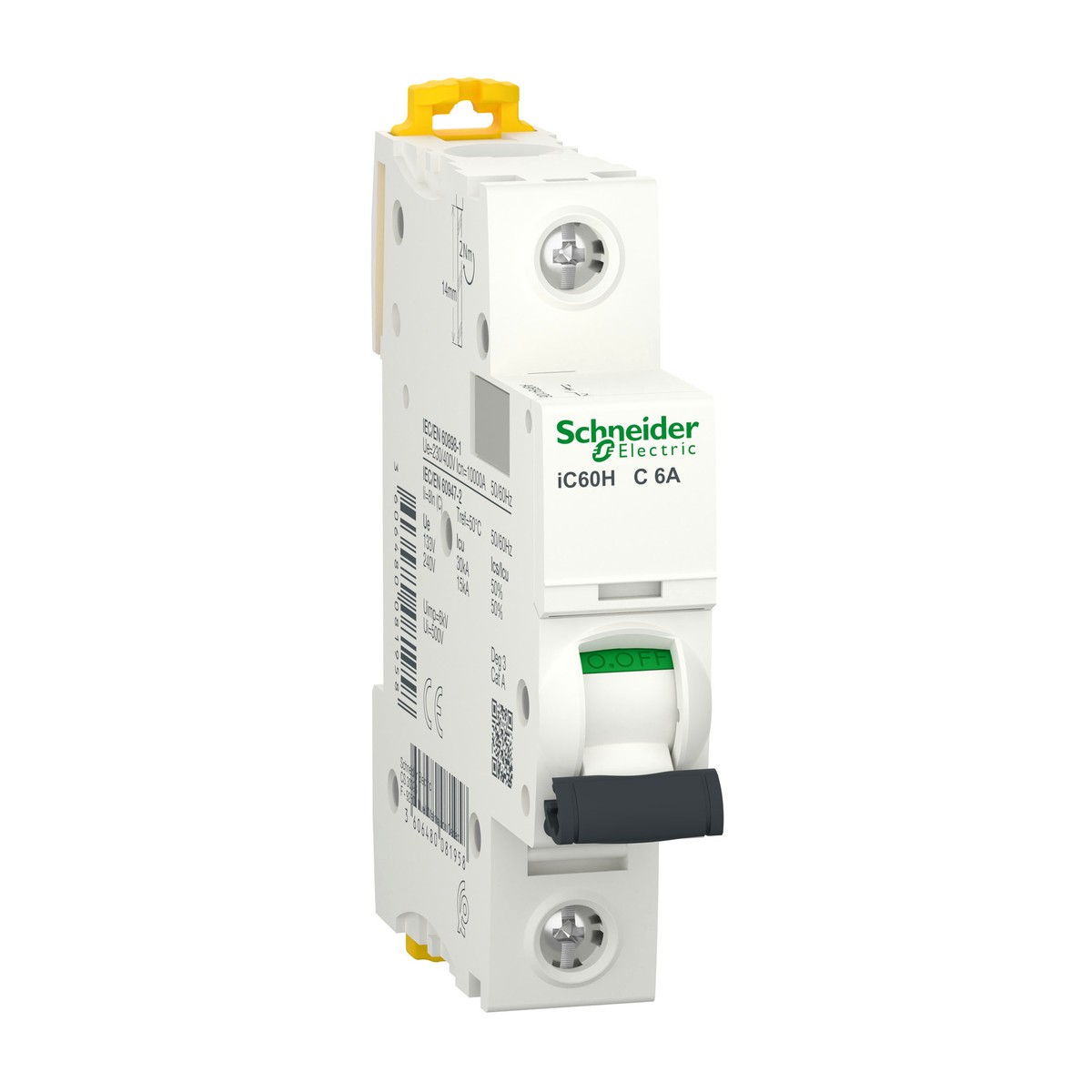

Schneider Electric A9F84106 Miniature Circuit Breaker Acti9 iC60H 1P 6A C-Curve. The Schneider Electric A9F84106 is a robust Miniature Circuit Breaker (MCB) from the Acti9 iC60H range, engineered for reliable protection in final distribution circuits. This 1-pole, 6A MCB features C-curve thermal-magnetic tripping technology, safeguarding electrical installations against overcurrents and short circuits. It is highly versatile, operating on both AC and DC networks at 50/60 Hz, with a rated operational voltage up to 240 V AC and up to 72 V DC. The A9F84106 boasts impressive breaking capacities, including 10000 A Icn at 230 V AC (IEC/EN 60898-1) and 15 KA Icu at 220-240 V AC (IEC/EN 60947-2), making it suitable for demanding environments. Designed for easy installation, it features clip-on mounting to a 35 mm DIN rail and accepts cable sizes from 1 to 25 mm² rigid. With an IP20 degree of protection and an operating temperature range of -35 to 70 °C, this Schneider Electric MCB ensures durable performance. Its compact 18 mm width and suitability for isolation enhance its utility in various industrial and commercial applications across Egypt and the Gulf, such as building services, water treatment plants, and food & beverage facilities. For specific project requirements or to request a quote, please contact us.
Details
- Brand: Schneider Electric
- Part number: A9F84106
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84110 — Acti9 iC60H Miniature Circuit Breaker 1P 10A C-Curve
- Schneider Electric A9F84116 — Acti9 iC60H Miniature Circuit Breaker 1P 16A C-Curve
- Schneider Electric A9F84150 — Acti9 iC60H Miniature Circuit Breaker, 1P, 50A, C curve
- Schneider Electric A9F84163 — Miniature Circuit Breaker (MCB), 1-Pole, 63A, C-curve
- Schneider Electric A9F84204 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84216 — Acti9 iC60H Miniature Circuit Breaker (MCB) 2P 16A C-curve
- Schneider Electric A9F84220 — Acti9 iC60H MCB, 2P, 20A, C curve
- Schneider Electric A9F84250 — Miniature Circuit Breaker (MCB) Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F84263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
- Schneider Electric A9F84350 — Acti9 iC60H Miniature Circuit Breaker 3P 50A C-curve
Specifications
- Depth
- 78.5 Mm
- Width
- 18 Mm
- Height
- 85 Mm
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- Network frequency
- 50/60 Hz
- Poles description
- 1P
- Tightening torque
- 2 N.M top or bottom
- [In] rated current
- 6 A
- Trip unit technology
- Thermal-magnetic
- Connections - terminals
- Single terminal (top or bottom), for 1 cable(s), 1…25 mm², rigid, copper; Single terminal (top or bottom), for 1 cable(s), 1…16 mm², flexible, copper
- IP degree of protection
- IP20
- Manufacturer part number
- A9F84106
- Suitability for isolation
- Yes
- [Ue] rated operational voltage
- 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V DC, 60...72 V DC
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2)
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Ambient air temperature for operation
- -35…70 °C
