A9F84110

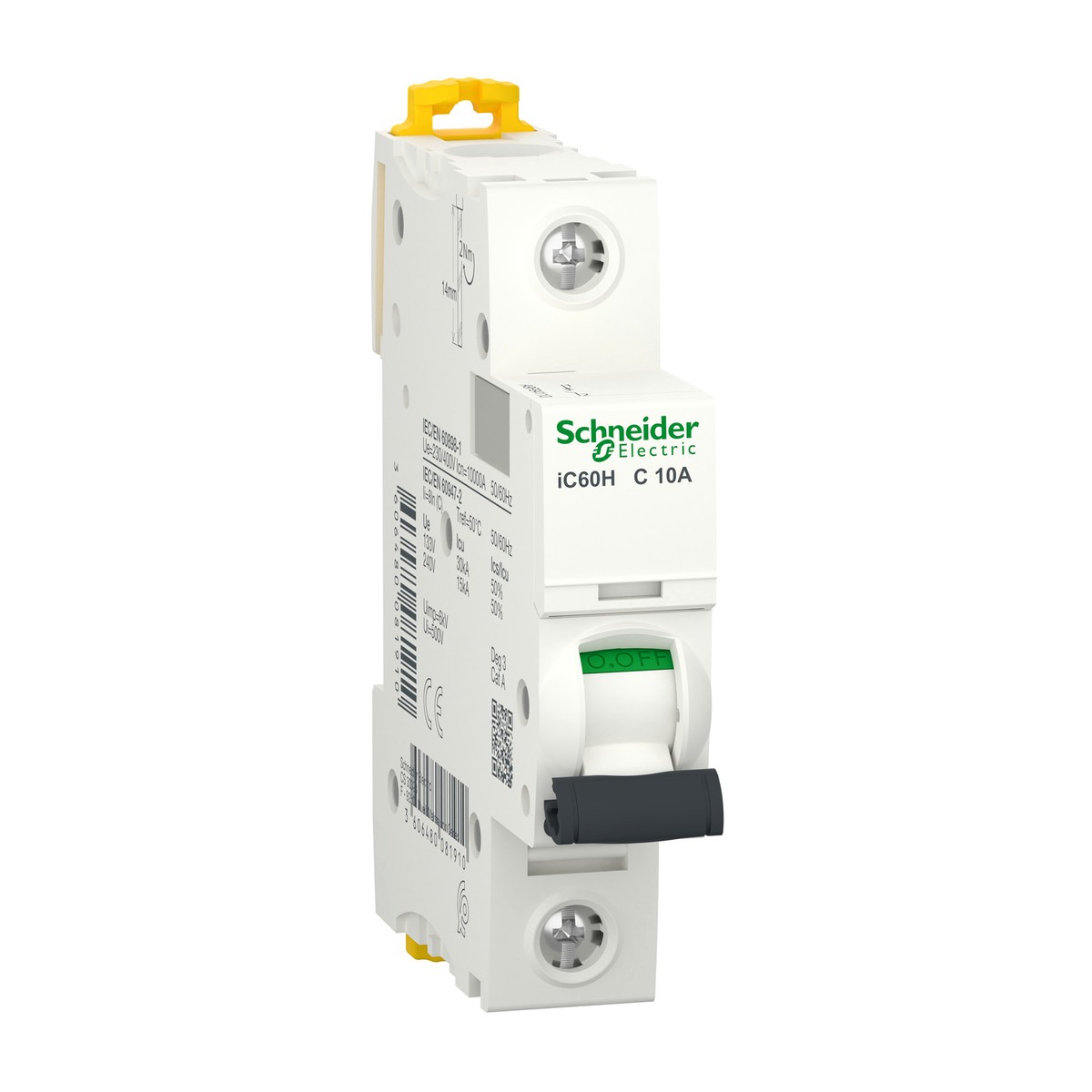

Schneider Electric A9F84110 Acti9 iC60H Miniature Circuit Breaker 1P 10A C-Curve. The Schneider Electric A9F84110 is a high-performance Acti9 iC60H Miniature Circuit Breaker (MCB) designed for reliable circuit protection in final distribution circuits. This 1-pole, 10A device features a C-curve thermal-magnetic trip unit, ensuring effective protection against overcurrents and short circuits for both AC and DC networks. It boasts a robust breaking capacity of 10000 A Icn at 230 V AC (IEC/EN 60898-1) and 15 KA Icu at 220-240 V AC (IEC/EN 60947-2), along with a 20 KA Icu at 12-60 V DC. Compatible with operational voltages spanning 12-240 V AC and 12-72 V DC, the A9F84110 offers versatile application. Its DIN-rail mounting makes installation straightforward, and it holds an IP20 degree of protection (IP40 in a modular enclosure), making it suitable for a wide range of environments. With suitability for isolation and a broad operating temperature range of -35…70 °C, this Schneider Electric MCB is ideal for critical applications across Egypt and the Gulf, including commercial buildings, light industrial facilities, water treatment plants, food and beverage processing, and general building services.
Details
- Brand: Schneider Electric
- Part number: A9F84110
- Series: Acti9
- Category: Miniature Circuit Breaker
Related Schneider Electric parts
- Schneider Electric A9F84116 — Acti9 iC60H Miniature Circuit Breaker 1P 16A C-Curve
- Schneider Electric A9F84150 — Acti9 iC60H Miniature Circuit Breaker, 1P, 50A, C curve
- Schneider Electric A9F84163 — Miniature Circuit Breaker (MCB), 1-Pole, 63A, C-curve
- Schneider Electric A9F84204 — Acti9 iC60H Miniature Circuit Breaker
- Schneider Electric A9F84216 — Acti9 iC60H Miniature Circuit Breaker (MCB) 2P 16A C-curve
- Schneider Electric A9F84220 — Acti9 iC60H MCB, 2P, 20A, C curve
- Schneider Electric A9F84250 — Miniature Circuit Breaker (MCB) Acti9 iC60H 2P 50A C-curve
- Schneider Electric A9F84263 — Acti9 iC60H Miniature Circuit Breaker 2P 63A C curve
- Schneider Electric A9F84306 — Acti9 iC60H MCB 3P 6A C-curve
- Schneider Electric A9F84320 — Acti9 iC60H Miniature Circuit Breaker 3P 20A C-Curve
- Schneider Electric A9F84350 — Acti9 iC60H Miniature Circuit Breaker 3P 50A C-curve
- Schneider Electric A9F84363 — Miniature circuit breaker, Acti9 iC60H, 3P, 63A, C curve
Specifications
- Poles
- 1P
- Curve code
- C
- Net weight
- 0.215 Kg
- Network type
- AC, DC
- Product type
- Miniature circuit-breaker
- Mounting support
- 35 mm DIN rail
- Device short name
- iC60H
- Rated current [In]
- 10 A
- Trip unit technology
- Thermal-magnetic
- IP degree of protection
- IP20 (IP40 in modular enclosure)
- Magnetic tripping limit
- 8 x In +/- 20 %
- Manufacturer part number
- A9F84110
- Number of protected poles
- 1
- Suitability for isolation
- Yes
- Rated operational voltage AC
- 220...240 V AC 50/60 Hz
- Rated operational voltage DC
- 12...72 V DC
- Ambient operating temperature
- -35…70 °C
- Breaking capacity (IEC/EN 60898-1)
- 10000 A Icn at 230 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2) AC
- 15 KA Icu at 220...240 V AC 50/60 Hz
- Breaking capacity (IEC/EN 60947-2) DC
- 20 KA Icu at 12...60 V DC
