O3DP23

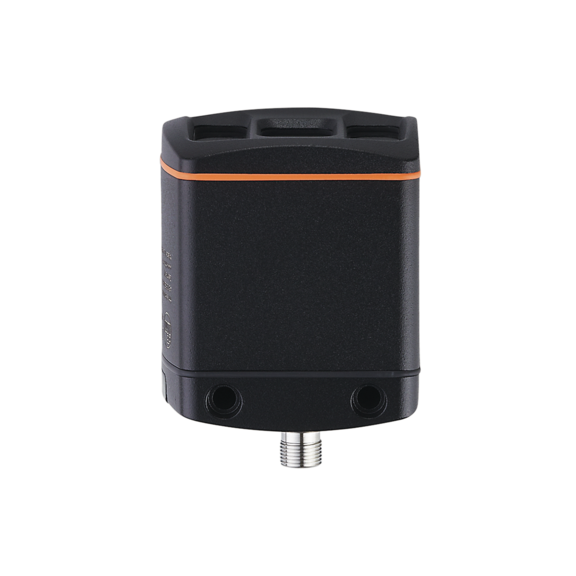

IFM O3DP23 ToF camera. Connector: 1 x M12; coding: D; Contacts: 4; Operating voltage [V]: 20.4...28.8 DC; (EN 61131-2); Power consumption [W]: 10.
Details
- Brand: IFM
- Part number: O3DP23
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- IR illumination unit
- IR illumination unit
- IR illumination unit
- 3D camera
- 3D camera
- ToF camera
- ToF camera
Specifications
- EMC
- DIN EN 61000-6-4: radiation of interference / industrial environments; DIN EN 61000-6-2: noise immunity / industrial environments
- Display
- Function: 2 x LED, green Ethernet Power; Switching status: 2 x LED, yellow OUT 1 OUT 2
- Housing
- rectangular
- Material
- housing: diecast aluminium; front lens: gorilla glass; Function display: PA
- Protocol
- CANopen
- Connector
- 1 x M12; coding: D; Contacts: 4
- Protection
- IP 65; IP 67
- Weight [g]
- 764.3
- Application
- detection of pallets
- Image sensor
- PMD 3D ToF-Chip
- Pack quantity
- 1 pcs.
- Items supplied
- spring washers
- Dimensions [mm]
- 72 x 65 x 82.6
- Factory settings
- Baud rate: 125 k; node ID: 32
- IFM product code
- O3DP23
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
- Electrical safety
- DIN EN 61010-2-201: electrical supply only via PELV circuits
- Transmission rate
- 10; 100
- Integrated lighting
- yes; (infrared: 850 nm invisible radiation LED)
- Vibration resistance
- DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
- Operating voltage [V]
- 20.4...28.8 DC; (EN 61131-2)
- Power consumption [W]
- 10
- Transmission standard
- 10Base-T; 100Base-TX
- Photobiological safety
- exempt group; (DIN EN 62471)
- Communication interface
- Ethernet; CAN
- Operating distance [mm]
- 1000...2000
- Current consumption [mA]
- 420
- Image resolution 3D [px]
- 352 x 264
- Ambient temperature [°C]
- -10...50
- Angle of aperture 3D [°]
- 60 x 45
- Parameter setting options
- via PC with ifm Vision Assistant or XML-RPC
- Storage temperature [°C]
- -40...85
- Switch-on peak current [mA]
- 2400
- Max. current consumption [mA]
- 1600
- Number of Ethernet interfaces
- 1
- Max. immunity to extraneous light [klx]
- 8; (with reduced measuring accuracy and repeatability: < 100)
