O3R225

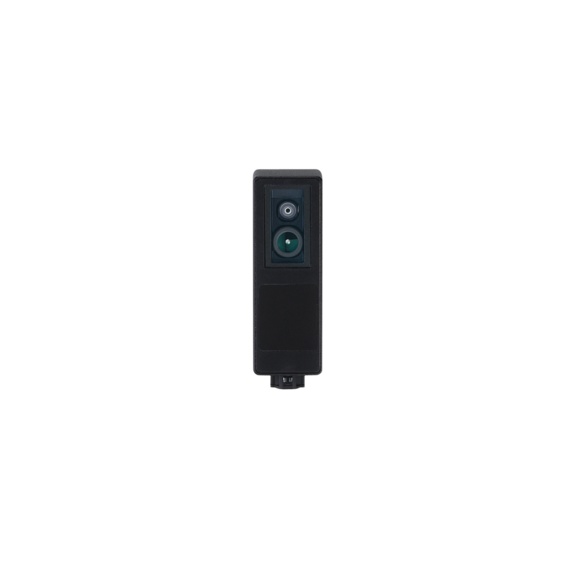

IFM O3R225 3D camera. Connector: Dual-HFM; Type of connector: HFM (Mini-FAKRA); Image resolution [px]: 1280 x 800.
Details
- Brand: IFM
- Part number: O3R225
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D camera
- ToF camera
- ToF camera
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor
- 3D camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
Specifications
- EMC
- EN IEC 61000-6-4: radiation of interference / industrial environments; EN IEC 61000-6-2: noise immunity / industrial environments
- Material
- housing: diecast zinc coated; Cover: polycarbonate; window: glass / polycarbonate; rear of the housing: aluminum coated
- Connector
- Dual-HFM
- Protection
- IP 54
- Weight [g]
- 195.455
- Image sensor
- PMD 3D ToF-Chip / 2D Chip
- MTTF [years]
- 43
- Pack quantity
- 1 pcs.
- Dimensions [mm]
- 90 x 31 x 26
- IFM product code
- O3R225
- Shock resistance
- EN 60068-2-27: 50 g / (11 ms) not repetitive; EN 60068-2-27: 40 g / (6 ms) repetitive
- Electrical safety
- EN 61010-2-201: electrical supply only via PELV circuits
- Type of connector
- HFM (Mini-FAKRA)
- Accessory required
- Video Processing Unit 1 x, OVP810; Video Processing Unit 1 x, OVP811; Video Processing Unit 1 x, OVP812; Video Processing Unit 1 x, OPP813; only one of the listed video processing units is required; the required version depends on the respective application.
- Integrated lighting
- yes; (infrared: 940 nm invisible radiation)
- Vibration resistance
- EN 60068-2-6: 2 g / (10...150 Hz); EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
- Image resolution [px]
- 1280 x 800
- Operating voltage [V]
- 19.2...28.8 DC
- Power consumption [W]
- 8.6; ((FPS x 0,32) + 2,2; FPS = Framerate Head)
- Transmission standard
- FPD-Link
- Angle of aperture [°]
- 128 x 80
- Laser protection class
- 1
- Tightening torque [Nm]
- < 0.8
- Image resolution 3D [px]
- 224 x 172
- Ambient temperature [°C]
- -10...40
- Angle of aperture 3D [°]
- 105 x 78
- Notes on laser protection
- Caution:: invisible laser radiation; laser class:: 1; IEC 60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Storage temperature [°C]
- -40...85
- Max. current consumption [mA]
- 800
- Image repetition frequency [Hz]
- 20
- Image repetition frequency 3D [Hz]
- 20
