O3DP03

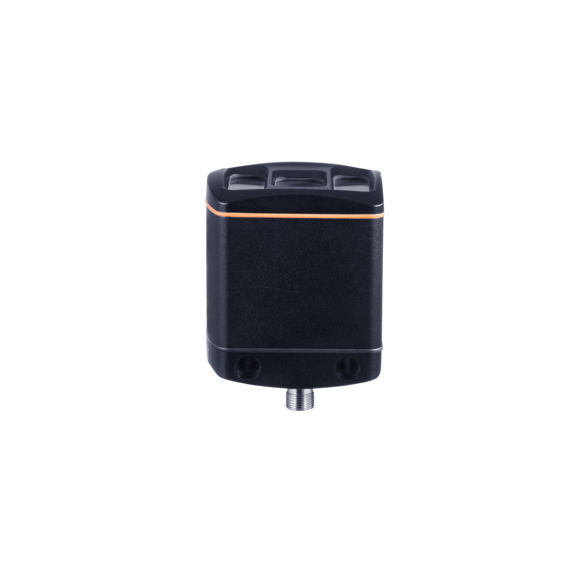

IFM O3DP03 ToF camera. IFM lists these product characteristics: For all standard pallets with two pallet pockets, Positional accuracy up to ±1 cm, Ranges up to 4 m, Typical detection time < 1 s, Communication via Ethernet.
Details
- Brand: IFM
- Part number: O3DP03
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
- ToF camera
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- IR illumination unit
Specifications
- EMC
- DIN EN IEC 61000-6-4: radiation of interference / industrial environments; DIN EN IEC 61000-6-2: noise immunity / industrial environments
- Display
- Function: 2 x LED, green Ethernet Power; Switching status: 2 x LED, yellow OUT 1 OUT 2
- Housing
- rectangular
- Remarks
- Repeatability and accuracy depend on the image settings and the environmental conditions.; The data sheet values apply to typical settings and conditions.
- Material
- housing: diecast aluminium; front lens: gorilla glass; Function display: PA
- Protocol
- TCP/IP
- Connector
- 1 x M12; coding: D; Contacts: 4
- Protection
- IP 65; IP 67
- Usage type
- Parameter setting; Data transmission
- Weight [g]
- 767.95
- Application
- PDS is a real-time 3D detection system for pallets and industrial racks for automated guided vehicles, forklifts and other robots
- Image sensor
- PMD 3D ToF-Chip
- MTTF [years]
- 37
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Items supplied
- Protective covers; spring washers
- Dimensions [mm]
- 72 x 65 x 82.6
- Factory settings
- IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201
- IFM product code
- O3DP03
- Pollution degree
- 3
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
- Electrical safety
- DIN EN IEC 61010-2-201: electrical supply only via PELV circuits
- Transmission rate
- 10 MBit/s; 100 MBit/s
- Integrated lighting
- yes; (infrared: 850 nm)
- Measuring range [m]
- < 30
- Overvoltage category
- II
- Vibration resistance
- DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
- Operating voltage [V]
- 24 DC; (EN 61131-2)
- Transmission standard
- 10Base-T; 100Base-TX
- Laser protection class
- 1
- Tightening torque [Nm]
- < 0.8
- Communication interface
- Ethernet
- Operating distance [mm]
- 1000...2000
- Current consumption [mA]
- 350; (typical)
- Image resolution 3D [px]
- 352 x 264
- Ambient temperature [°C]
- -10...50
- Angle of aperture 3D [°]
- 60 x 45; (nominal value without lens distortion correction)
- Notes on laser protection
- Caution invisible laser radiation; EN 60825-1:2014 +A11:2021; IEC 60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Parameter setting options
- via PC with ifm Vision Assistant or XML-RPC
- Storage temperature [°C]
- -40...85
- Max. current consumption [mA]
- 530; (mean value at 24 VDC ; with switched outputs ; <1300 peak current pulsed)
- Number of Ethernet interfaces
- 1
- Max. relative air humidity [%]
- 90; (non condensing)
- Max. height above sea level [m]
- 4000
- Operating voltage tolerance [%]
- -15...20
- Max. immunity to extraneous light [klx]
- 8; (with reduced measuring accuracy and repeatability: < 100)
