O3M161

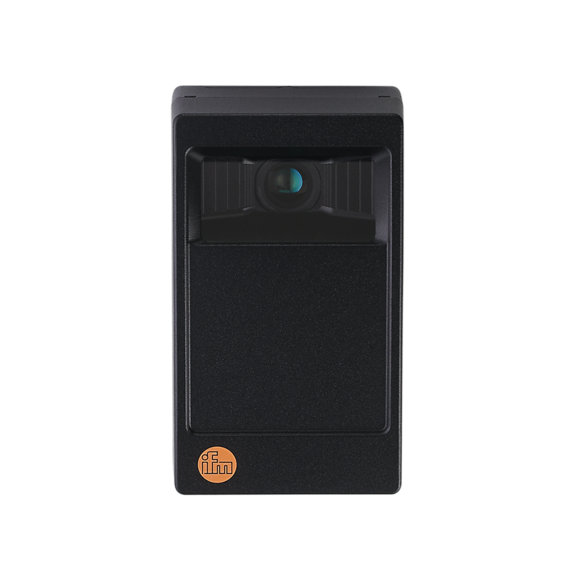

IFM O3M161 3D sensor for mobile applications. IFM lists these product characteristics: Reliable 3D detection of scenes and objects, Suited for use in mobile machines, Reliable distance measurement due to time-of-flight measurement, Compact and robust housing, Long range up to 35 m.
Details
- Brand: IFM
- Part number: O3M161
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- IR illumination unit
- IR illumination unit
- IR illumination unit
- 3D camera
- 3D camera
- ToF camera
- ToF camera
- 3D sensor for mobile applications
Specifications
- EMC
- DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments
- Remarks
- The illumination unit is required for the operation of the sensor.; Only use original ifm cables to connect sensor and illumination unit.; The function-specific performance values can be found in the applicable documentation.
- Material
- housing: diecast aluminium; disc: gorilla glass
- Protocol
- CANopen; UDS
- Connector
- 1 x M12; coding: A
- Protection
- IP 67; IP 69K; (with mounted connectors or protective caps)
- Usage type
- Parameter setting; Data transmission
- Weight [g]
- 1059.85
- Application
- output of 3D image data
- Image sensor
- PMD 3D ToF-Chip
- MTTF [years]
- 78
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Items supplied
- Protective covers
- Dimensions [mm]
- 143.8 x 85 x 70.1
- Factory settings
- J1939 interface: default; device address (ECU): 239; UDS interface: 500 (125...1000) kBaud
- IFM product code
- O3M161
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 30 g / 6 ms bump
- Electrical safety
- DIN EN 61010-2-201: electric shock / electrical supply only via PELV circuits
- Transmission rate
- 250 (125...1000) kBaud
- Note on interfaces
- Output of preprocessed data via CAN interface
- Vibration resistance
- DIN EN 60068-2-6: 10 g / 10...500 Hz swept sine; DIN EN 60068-2-64: 10...2000 Hz noise
- Operating voltage [V]
- 9...32 DC
- Power consumption [W]
- 3.6
- Communication interface
- CAN; Ethernet
- Current consumption [mA]
- < 400
- Image resolution 3D [px]
- 64 x 16
- Number of CAN interfaces
- 1
- Ambient temperature [°C]
- -40...85
- Angle of aperture 3D [°]
- 95 x 32
- Parameter setting options
- via PC with ifm Vision Assistant
- Storage temperature [°C]
- -40...105
- Note on ambient temperature
- with high image repetition frequency of 25Hz
- Number of Ethernet interfaces
- 1
- Image repetition frequency 3D [Hz]
- 25 / 33 / 50
- Max. immunity to extraneous light [klx]
- 120
