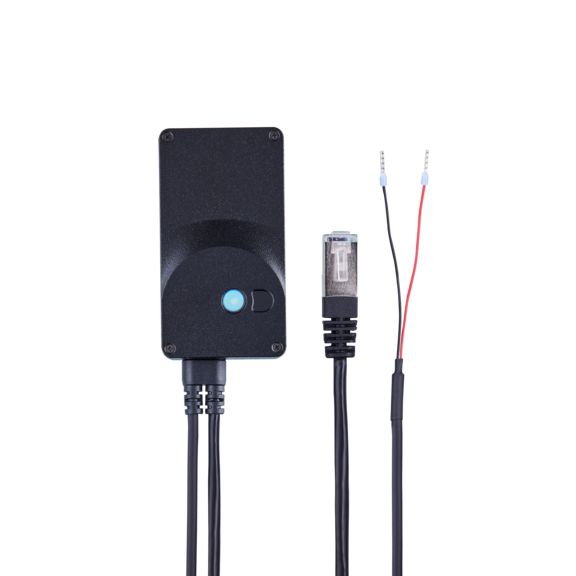

O3X130
IFM O3X130 ToF camera. Type of light: Infrared light; Connector: 1 x RJ45; Contacts: 8; Wave length [nm]: 850.
Details
- Brand: IFM
- Part number: O3X130
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor
- 3D camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
- 3D sensor
- 3D sensor
- 3D sensor
Specifications
- EMC
- DIN EN IEC 61000-6-4: radiation of interference; DIN EN IEC 61000-6-2: noise immunity / industrial environments
- Cable
- 1 m, PVC
- Material
- housing: diecast zinc; front lens Illu: PMMA; front lens lens: float glass
- Protocol
- TCP/IP
- Connector
- 1 x RJ45; Contacts: 8
- Protection
- IP 50
- Usage type
- Parameter setting; Data transmission
- Weight [g]
- 240
- Application
- output of 3D image data
- Image sensor
- PMD 3D ToF-Chip
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Dimensions [mm]
- 80 x 43.5 x 21
- Factory settings
- IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201
- IFM product code
- O3X130
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
- Wave length [nm]
- 850
- Electrical safety
- DIN EN IEC 61010-2-201: electrical supply only via PELV circuits
- Transmission rate
- 10; 100
- Integrated lighting
- yes; (infrared: 850 nm invisible radiation)
- Measuring range [m]
- < 30; (depending on settings, object size, and reflectivity)
- Overvoltage category
- II
- Vibration resistance
- DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
- Operating voltage [V]
- 24 DC
- Power consumption [W]
- 4
- Transmission standard
- 10Base-T; 100Base-TX
- Laser protection class
- 1
- Max. reading rate [Hz]
- 20
- Communication interface
- Ethernet
- Operating distance [mm]
- 50...3000
- Current consumption [mA]
- < 170; (mean value at 24 VDC; peak current pulsed: <350)
- Image resolution 3D [px]
- 224 x 172
- Ambient temperature [°C]
- -10...40
- Angle of aperture 3D [°]
- 58 x 44
- Notes on laser protection
- Caution:: invisible laser radiation; laser class:: 1; IEC 60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
- Parameter setting options
- via PC with ifm Vision Assistant or XML-RPC
- Storage temperature [°C]
- -40...85
- Note on operating distance
- object size: 200 x 200 mm; reflectivity: 18 %
- Note on ambient temperature
- Housing: < 45° C; see operating instructions
- Number of Ethernet interfaces
- 1
- Operating voltage tolerance [%]
- -15...20
- Max. immunity to extraneous light [klx]
- 8
