O3D310

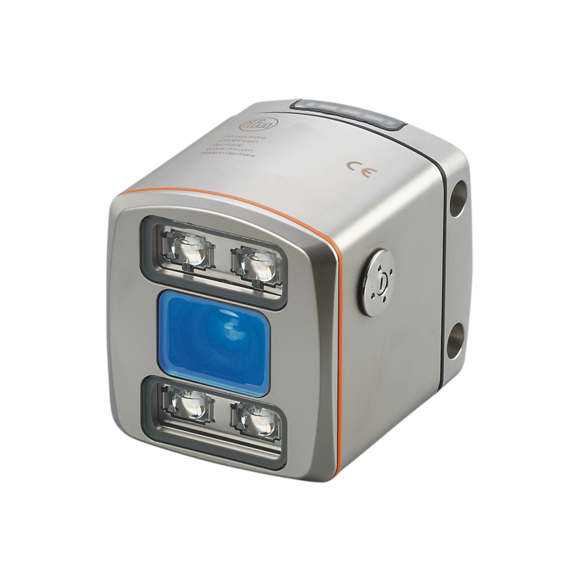

IFM O3D310 — 3D sensor

IFM O3D310 3D sensor. IFM lists these product characteristics: Reliable volume determination for storage and conveyor technology, Non-contact dimensioning of rectangular objects such as cardboard packages or parcels, Reliable measurement of height, width and length to calculate strap length and volume , Reliable detection of size, orientation and position of the objects for automated storage space planning , Switching outputs and Ethernet process data interface.

Details

Related IFM parts

Request a quote for O3D310

Specifications

EMC
DIN EN 61000-6-4: radiation of interference / industrial environments; DIN EN 61000-6-2: noise immunity / industrial environments
Display
Function: 2 x LED, green Ethernet Power; Switching status: 2 x LED, yellow OUT 1 OUT 2
Housing
rectangular
Trigger
24 V PNP/NPN (IEC 61131-2 Typ 3)
Material
housing: stainless steel (1.4404 / 316L); front lens: PMMA; Function display: PA
Protocol
TCP/IP; EtherNet/IP; PROFINET
Connector
1 x M12; coding: D; Contacts: 4
Protection
IP 65; IP 67; IP 69K
Usage type
Data transmission
Weight [g]
1217.5
Application
Dimensioning of the object; Completeness monitoring; Level monitoring; distance monitoring; volume monitoring; robot gripper navigation; depalletizing
Image sensor
PMD 3D ToF-Chip
MTTF [years]
43
Pack quantity
1 pcs.
Type of light
Infrared light
Items supplied
Protective covers
Max. load [Ω]
500
Dimensions [mm]
72 x 67 x 90
Output function
24 V PNP/NPN; (EN 61131-2)
Factory settings
IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201
IFM product code
O3D310
Protection class
III
Shock resistance
DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
Electrical safety
DIN EN 61010-2-201: electrical supply only via PELV circuits
Transmission rate
10; 100
Integrated lighting
yes; (infrared: 850 nm invisible radiation LED)
Measuring range [m]
< 30
Overload protection
yes
Overvoltage category
II
Vibration resistance
DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
Operating voltage [V]
20.4...28.8 DC; (EN 61131-2)
Power consumption [W]
10; (typical value)
Transmission standard
10Base-T; 100Base-TX
Photobiological safety
exempt group; (DIN EN 62471)
Tightening torque [Nm]
< 0.8
Communication interface
Ethernet
Operating distance [mm]
300...8000
Total number of outputs
3
Current consumption [mA]
420; (maximum mean value: < 1600 mA)
Image resolution 3D [px]
176 x 132
Number of analog outputs
1; (configurable)
Number of digital inputs
2
Short-circuit protection
yes
Ambient temperature [°C]
-10...50
Analog voltage output [V]
0...10
Angle of aperture 3D [°]
40 x 30; (nominal value without lens distortion correction)
Min. load resistance [Ω]
10000
Number of digital outputs
3; (configurable)
Parameter setting options
via PC with ifm Vision Assistant
Storage temperature [°C]
-40...85
Analog current output [mA]
4...20
Note on operating distance
object size: 200 x 200 mm; reflectivity: 18 %
Precision analog output [%]
1
Resolution of analog output
12 bit
Number of inputs and outputs
Number of digital inputs: 2; Number of digital outputs: 3; Number of analog outputs: 1
Max. current consumption [mA]
2400; (peak current pulsed)
Input circuit of digital inputs
24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3)
Type of short-circuit protection
yes (non-latching)
Max. current load per output [mA]
100
Image repetition frequency 3D [Hz]
25
Max. immunity to extraneous light [klx]
8; (with reduced measuring accuracy and repeatability: < 100)
Max. voltage drop switching output DC [V]
1
