O3M960

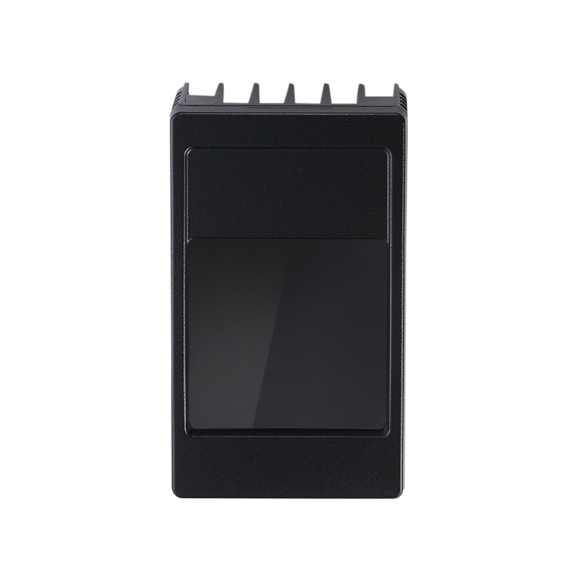

IFM O3M960 — IR illumination unit

IFM O3M960 IR illumination unit. IFM lists these product characteristics: For sensors for 3D detection of scenes and objects, Suited for use in mobile machines, Compact and robust housing, High protection rating for the requirements of harsh industrial environments, Wide operating temperature range.

Details

Related IFM parts

Request a quote for O3M960

Specifications

EMC
DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments
Remarks
The illumination unit is required for the operation of the sensor.; Only use original ifm cables to connect sensor and illumination unit.
Material
housing: diecast aluminium; disc: polycarbonate
Connector
1 x M12; coding: A
Protection
IP 67; IP 69K; (with mounted connectors or protective caps)
Weight [g]
1422.8
MTTF [years]
78
Pack quantity
1 pcs.
Type of light
Infrared light
Dimensions [mm]
143 x 85 x 83.5
IFM product code
O3M960
Protection class
III
Shock resistance
DIN EN 60068-2-27: 30 g / 6 ms bump
Wave length [nm]
850
Electrical safety
DIN EN 61010-2-201: electric shock / electrical supply only via PELV circuits
Vibration resistance
DIN EN 60068-2-6: 10 g / 10...500 Hz swept sine; DIN EN 60068-2-64: 10...2000 Hz noise
Operating voltage [V]
9...32 DC
Power consumption [W]
45
Angle of aperture [°]
95 x 32
Photobiological safety
risk group 1; (DIN EN 62471)
Communication interface
MCI
Current consumption [mA]
< 5000
Ambient temperature [°C]
-40...85
Parameter setting options
Via PC and O3M16x / O3M26x with ifm Vision Assistant
Storage temperature [°C]
-40...105
Note on ambient temperature
with high image repetition frequency of 25Hz
Image repetition frequency 3D [Hz]
25 / 33 / 50
