O3M372

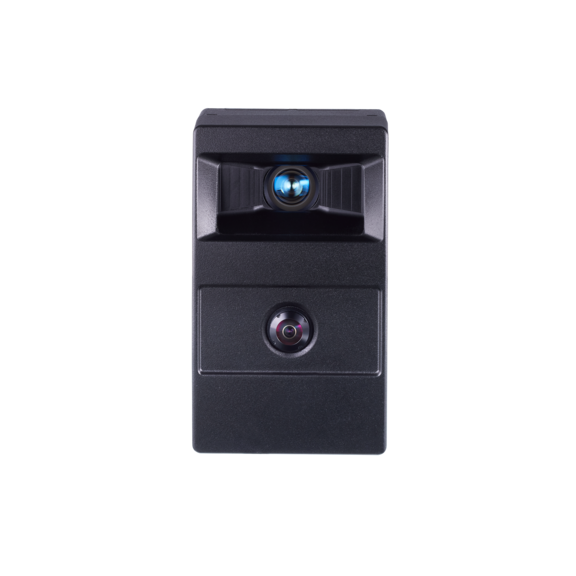

IFM O3M372 3D sensor for mobile applications. IFM lists these product characteristics: Reliable person and obstacle detection, optimized for off-highway applications, Integrated person and object detection, based on ifm deep learning, 2D/3D sensor fusion and plausibility check avoid false alarms, Robust functionality even in bright sunlight or twilight.
Details
- Brand: IFM
- Part number: O3M372
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D sensor
- 3D camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
Specifications
- EMC
- DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments
- Remarks
- The illumination unit is required for the operation of the sensor.; Only use original ifm cables to connect sensor and illumination unit.; The function-specific performance values can be found in the applicable documentation.
- Material
- housing: diecast aluminium; disc: gorilla glass
- Protocol
- SAE J1939; UDS
- Connector
- 1 x M12; coding: A; Contacts: 5
- Protection
- IP 67; IP 69K; (with mounted connectors or protective caps)
- Usage type
- Parameter setting; Data transmission
- Weight [g]
- 1481.965
- Application
- AI person detection; output of 3D image data; output of 2D image data; output of object recognition and collision prediction data
- Image sensor
- PMD 3D ToF chip / 2D CMOS chip (HDR)
- MTTF [years]
- 47
- Video output
- Ethernet, RTP, RTSP, H.264, H.265, MJPEG (max. 1280 x 960)
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Dimensions [mm]
- 143.4 x 85 x 73.1
- Factory settings
- SAE J1939 interface: default; device address (ECU): 239
- IFM product code
- O3M372
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 30 g / 6 ms bump
- Electrical safety
- DIN EN 61010-2-201: electric shock / electrical supply only via PELV circuits
- Transmission rate
- 250 (125...1000) kBaud
- Note on interfaces
- Output of preprocessed data via CAN interface
- Vibration resistance
- DIN EN 60068-2-6: 10 g / 10...500 Hz swept sine; DIN EN 60068-2-64: 10...1000 Hz noise
- Image resolution [px]
- 1280 x 960
- Operating voltage [V]
- 9...32 DC
- Power consumption [W]
- 9.5
- Angle of aperture [°]
- 143 x 112
- Communication interface
- CAN; Ethernet
- Current consumption [mA]
- < 950
- Image resolution 3D [px]
- 64 x 16
- Number of CAN interfaces
- 1
- Ambient temperature [°C]
- -40...75
- Angle of aperture 3D [°]
- 97 x 44
- Parameter setting options
- via PC with ifm Vision Assistant
- Storage temperature [°C]
- -40...90
- Number of Ethernet interfaces
- 1
- Max. relative air humidity [%]
- 90; (non condensing)
- Image repetition frequency [Hz]
- 30
- Max. height above sea level [m]
- 4000
- Image repetition frequency 3D [Hz]
- 30
- Max. immunity to extraneous light [klx]
- 120
