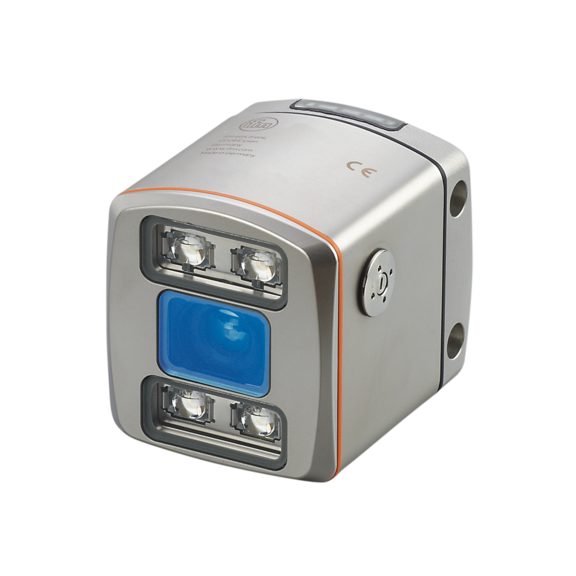

IFM O3D311 ToF camera. IFM lists these product characteristics: Visual assessment of distance, level or volume, Reliable distance measurement due to time-of-flight measurement (ToF / Time-of-Flight), Illumination, measurement and evaluation in one unit, Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application, Integration by means of intuitive parameter setting software.
Details
- Brand: IFM
- Part number: O3D311
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- ToF camera
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
- 3D sensor
- ToF camera
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor for mobile applications
Specifications
- EMC
- DIN EN 61000-6-4: radiation of interference / industrial environments; DIN EN 61000-6-2: noise immunity / industrial environments
- Display
- Function: 2 x LED, green Ethernet Power; Switching status: 2 x LED, yellow OUT 1 OUT 2
- Housing
- rectangular
- Remarks
- Repeatability and accuracy depend on the image settings and the environmental conditions.; The data sheet values apply to typical settings and conditions.
- Trigger
- external; 24 V PNP/NPN (IEC 61131-2 Typ 3)
- Material
- housing: stainless steel (1.4404 / 316L); front lens: PMMA; Function display: PA
- Protocol
- TCP/IP
- Connector
- 1 x M12; coding: D; Contacts: 4
- Protection
- IP 65; IP 67; IP 69K
- Usage type
- Parameter setting; Data transmission
- Weight [g]
- 1139.2
- Application
- Camera for the output of 3D image data
- Image sensor
- PMD 3D ToF-Chip
- MTTF [years]
- 45.02
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Items supplied
- Protective covers
- Dimensions [mm]
- 72 x 67 x 90
- Output function
- 24 V PNP/NPN; (EN 61131-2)
- Factory settings
- IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201
- IFM product code
- O3D311
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
- Electrical safety
- DIN EN 61010-2-201: electrical supply only via PELV circuits
- Transmission rate
- 10; 100
- Integrated lighting
- infrared: 850 nm invisible radiation LED
- Overload protection
- yes
- Overvoltage category
- II
- Vibration resistance
- DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
- Operating voltage [V]
- 20.4...28.8 DC; (EN 61131-2)
- Power consumption [W]
- 10; (typical value)
- Transmission standard
- 10Base-T; 100Base-TX
- Photobiological safety
- exempt group; (DIN EN 62471)
- Tightening torque [Nm]
- < 0.8
- Communication interface
- Ethernet
- Operating distance [mm]
- 300...8000
- Current consumption [mA]
- 420; (maximum mean value: < 1600 mA)
- Image resolution 3D [px]
- 352 x 264
- Number of digital inputs
- 1
- Short-circuit protection
- yes
- Ambient temperature [°C]
- -10...50
- Angle of aperture 3D [°]
- 40 x 30; (nominal value without lens distortion correction)
- Number of digital outputs
- 2; (configurable)
- Parameter setting options
- via PC with ifm Vision Assistant or XML-RPC; software API for C, C++ and Halcon
- Storage temperature [°C]
- -40...85
- Note on operating distance
- object size: 200 x 200 mm; reflectivity: 18 %
- Number of inputs and outputs
- Number of digital inputs: 1; Number of digital outputs: 2
- Max. current consumption [mA]
- 2400; (peak current pulsed)
- Type of short-circuit protection
- yes (non-latching)
- Max. current load per output [mA]
- 100
- Image repetition frequency 3D [Hz]
- 25
- Max. immunity to extraneous light [klx]
- 8; (with reduced measuring accuracy and repeatability: < 100)
- Max. voltage drop switching output DC [V]
- 1
