O3D305

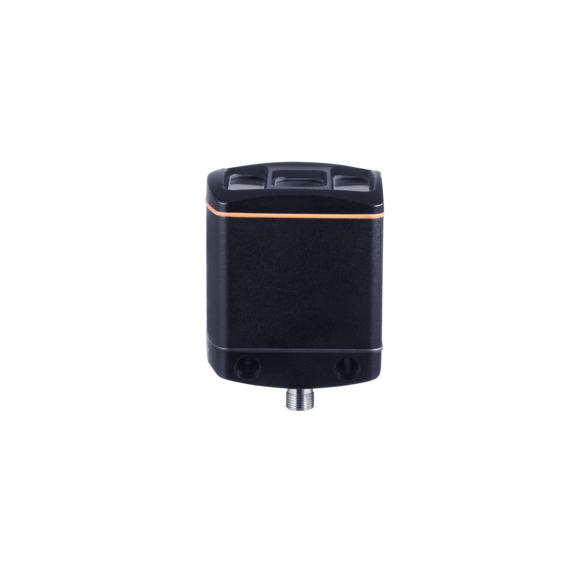

IFM O3D305 — ToF camera

IFM O3D305 ToF camera. IFM lists these product characteristics: Visual assessment of distance, level or volume, Reliable distance measurement due to time-of-flight measurement (ToF / Time-of-Flight), Illumination, measurement and evaluation in one unit, Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application, Integration by means of intuitive parameter setting software.

Details

Related IFM parts

Request a quote for O3D305

Specifications

EMC
DIN EN IEC 61000-6-4: radiation of interference / industrial environments; DIN EN IEC 61000-6-2: noise immunity / industrial environments
Display
Function: 2 x LED, green Ethernet Power; Switching status: 2 x LED, yellow OUT 1 OUT 2
Housing
rectangular
Remarks
Repeatability and accuracy depend on the image settings and the environmental conditions.; The data sheet values apply to typical settings and conditions.
Trigger
24 V PNP/NPN (IEC 61131-2 Typ 3)
Material
housing: diecast aluminium; front lens: gorilla glass; Function display: PA
Protocol
TCP/IP
Connector
1 x M12; coding: D; Contacts: 4
Protection
IP 65; IP 67
Usage type
Parameter setting; Data transmission
Weight [g]
770.7
Application
Camera for the output of 3D image data
Image sensor
PMD 3D ToF-Chip
MTTF [years]
45
Pack quantity
1 pcs.
Type of light
Infrared light
Items supplied
Protective covers; spring washers
Dimensions [mm]
72 x 65 x 82.6
Factory settings
IP address: 192.168.0.69; subnet mask: 255.255.255.0; gateway IP address: 192.168.0.201
IFM product code
O3D305
Pollution degree
3
Protection class
III
Shock resistance
DIN EN 60068-2-27: 50 g / (11 ms) not repetitive; DIN EN 60068-2-27: 40 g / (6 ms) repetitive
Electrical design
24 V PNP/NPN; (EN 61131-2)
Electrical safety
DIN EN IEC 61010-2-201: electrical supply only via PELV circuits
Transmission rate
10 MBit/s; 100 MBit/s
Integrated lighting
yes; (infrared: 850 nm)
Measuring range [m]
< 30
Overload protection
yes
Overvoltage category
II
Vibration resistance
DIN EN 60068-2-6: 2 g / (10...150 Hz); DIN EN 60068-2-64: 2.3 g RMS / (10...500 Hz)
Operating voltage [V]
24 DC; (EN 61131-2)
Transmission standard
10Base-T; 100Base-TX
Laser protection class
1
Max. reading rate [Hz]
25
Tightening torque [Nm]
< 0.8
Communication interface
Ethernet
Operating distance [mm]
300...8000
Total number of outputs
2
Current consumption [mA]
350; (typical)
Image resolution 3D [px]
352 x 264
Number of digital inputs
1; (including trigger input)
Short-circuit protection
yes
Ambient temperature [°C]
-10...50
Angle of aperture 3D [°]
70 x 51; (nominal value without lens distortion correction)
Notes on laser protection
Caution invisible laser radiation; EN 60825-1:2014 +A11:2021; IEC 60825-1:2014; Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019.
Number of digital outputs
2; (configurable)
Parameter setting options
via PC with ifm Vision Assistant or XML-RPC; software API for C, C++ and Halcon
Storage temperature [°C]
-40...85
Note on operating distance
object size: 200 x 200 mm; reflectivity: 18 %
Number of inputs and outputs
Number of digital inputs: 1; Number of digital outputs: 2
Max. current consumption [mA]
830; (mean value at 24 VDC ; with switched outputs ; <1600 peak current pulsed)
Number of Ethernet interfaces
1
Max. relative air humidity [%]
90; (non condensing)
Input circuit of digital inputs
24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3)
Max. height above sea level [m]
4000
Operating voltage tolerance [%]
-15...20
Type of short-circuit protection
yes (non-latching)
Max. current load per output [mA]
100
Max. immunity to extraneous light [klx]
8; (with reduced measuring accuracy and repeatability: < 100)
Max. voltage drop switching output DC [V]
1
