O3M970

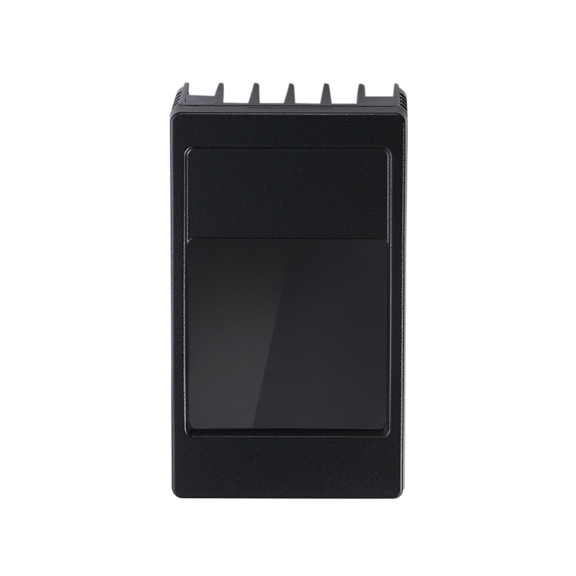

IFM O3M970 IR illumination unit. IFM lists these product characteristics: For sensors for 3D detection of scenes and objects, Suited for use in mobile machines, Compact and robust housing, High protection rating for the requirements of harsh industrial environments, Wide operating temperature range.
Details
- Brand: IFM
- Part number: O3M970
- Series: O3
- Category: Photoelectric sensors
Related IFM parts
- 3D camera
- 3D camera
- ToF camera
- ToF camera
- 3D sensor for mobile applications
- 3D sensor for mobile applications
- 3D sensor
- 3D camera
- ToF camera
- ToF camera
- ToF camera
- ToF camera
Specifications
- EMC
- DIN EN 61000-6-4: industrial environments; DIN EN 61000-6-2: industrial environments
- Remarks
- The illumination unit is required for the operation of the sensor.; Only use original ifm cables to connect sensor and illumination unit.
- Material
- housing: diecast aluminium; disc: polycarbonate
- Connector
- 1 x M12; coding: A
- Protection
- IP 67; IP 69K; (with mounted connectors or protective caps)
- Weight [g]
- 1416.9
- MTTF [years]
- 78
- Pack quantity
- 1 pcs.
- Type of light
- Infrared light
- Dimensions [mm]
- 143 x 85 x 83.5
- IFM product code
- O3M970
- Protection class
- III
- Shock resistance
- DIN EN 60068-2-27: 30 g / 6 ms bump
- Wave length [nm]
- 850
- Electrical safety
- DIN EN 61010-2-201: electric shock / electrical supply only via PELV circuits
- Vibration resistance
- DIN EN 60068-2-6: 10 g / 10...500 Hz swept sine; DIN EN 60068-2-64: 10...1000 Hz noise
- Operating voltage [V]
- 9...32 DC
- Power consumption [W]
- 45
- Angle of aperture [°]
- 97 x 44
- Photobiological safety
- risk group 1; (DIN EN 62471)
- Communication interface
- MCI
- Current consumption [mA]
- < 5000
- Ambient temperature [°C]
- -40...85
- Parameter setting options
- via PC and O3M271 / O3M171 with ifm Vision Assistant
- Storage temperature [°C]
- -40...105
- Note on ambient temperature
- with high image repetition frequency of 25Hz
- Image repetition frequency 3D [Hz]
- 25 / 33 / 50
