TM221C24R

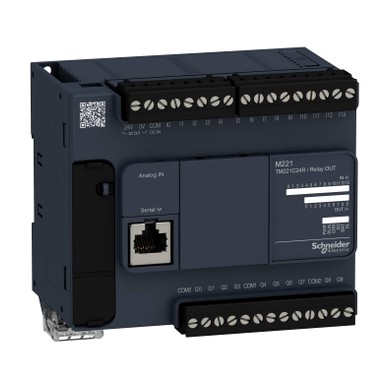

Schneider Electric TM221C24R Modicon M221 Logic Controller 24 I/O Relay. The Schneider Electric TM221C24R Modicon M221 logic controller is a compact and versatile solution designed for OEM machines and small plant automation. This robust controller features an integrated 24 I/O configuration, including 14 discrete inputs compliant with IEC 61131-2 Type 1, and 10 normally open relay outputs, each capable of handling 2 A. It also offers 2 analog inputs (0-10 V) for precise process control. With a wide rated supply voltage of 100-240 V AC and 50/60 Hz network frequency, the Schneider Electric TM221C24R is perfectly suited for electrical standards throughout Egypt and the Gulf. Connectivity is excellent, featuring USB, RS485, and RS232/RS485 serial links. Its 256 kB memory supports user applications, making it ideal for industries like water treatment, food and beverage, packaging, textiles, and building services. Easily mountable on DIN rail or panel, this IP20-rated controller operates reliably from -10 to 55 °C.
Details
- Brand: Schneider Electric
- Part number: TM221C24R
- Series: Modicon M221
- Category: Logic Controller
Related Schneider Electric parts
- Schneider Electric TM221C24T — Modicon M221 Logic Controller, 24 I/O, Transistor, PNP
- Schneider Electric TM221C24U — Modicon M221 Logic Controller, 24 I/O Transistor NPN
- Schneider Electric TM221C40R — Modicon M221 Logic Controller, 40 IO, Relay
- Schneider Electric TM221C40T — Modicon M221 Logic Controller 40 I/O Transistor PNP
- Schneider Electric TM221C40U — Modicon M221 Logic Controller 40 I/O Transistor NPN
- Schneider Electric TM221CE16T — Modicon M221 Logic Controller 16 IO Transistor PNP Ethernet
- Schneider Electric TM221CE16U — Modicon M221-16IO Logic Controller with Ethernet
- Schneider Electric TM221CE24T — M221 Logic Controller 24 I/O Transistor PNP Ethernet
- Schneider Electric TM221CE24U — Modicon M221 Logic controller 24io tr.npn ethernet
- Schneider Electric TM221CE40T — Modicon M221 Logic controller with 40 I/O and Ethernet
- Schneider Electric TM221CE40U — Modicon M221 Logic Controller 40 I/O Transistor NPN Ethernet
- Schneider Electric TM221M16R — Modicon M221 16 I/O Relay Logic Controller
Specifications
- Depth
- 70 mm
- Width
- 110 mm
- Height
- 90 mm
- Standards
- IEC 61131-2, UL 508, CAN/CSA C22.2 No. 213
- Product weight
- 0.395 kg
- Memory capacity
- 256 kB for user application and data RAM
- Mounting support
- Top hat type TH35-15 rail conforming to IEC 60715, Top hat type TH35-7.5 rail conforming to IEC 60715, plate or panel with fixing kit
- Range of product
- Modicon M221
- Network frequency
- 50/60 Hz
- Discrete I/O number
- 24 (14 inputs, 10 relay outputs)
- Discrete output type
- Relay normally open
- Analogue input number
- 2 at 0...10 V
- Discrete output current
- 2 A
- Discrete output voltage
- 5...125 V DC, 5...250 V AC
- IP degree of protection
- IP20 with protective cover in place
- Manufacturer part number
- TM221C24R
- Product or component type
- Logic controller
- [Us] rated supply voltage
- 100...240 V AC
- Integrated connection type
- USB port, Non isolated serial link serial 1 with RJ45 connector and RS485 interface, Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
