TM221C40T

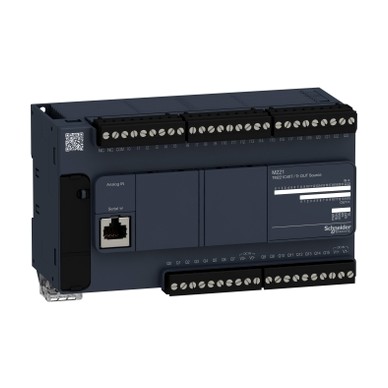

Schneider Electric TM221C40T Modicon M221 Logic Controller 40 I/O Transistor PNP. The Schneider Electric TM221C40T Modicon M221 Logic Controller is a compact and efficient solution designed for small to medium-sized OEM machines and plant automation. This versatile controller operates on a [Us] rated supply voltage of 24 V DC, integrating 40 discrete I/O points, comprising 24 discrete inputs (including 4 fast inputs) and 16 transistor outputs (with 2 fast outputs), all operating at 24 V DC with a 0.5 A current capacity. Additionally, it features 2 analogue inputs (0-10V), enhancing its adaptability for various sensor applications. Connectivity is robust, with a USB port for programming and two non-isolated serial links supporting Modbus master/slave (RTU/ASCII) and SoMachine-Network protocols, facilitating seamless integration into existing systems. The TM221C40T is a reliable choice for critical applications in industries such as cement, oil and gas, water treatment, food and beverage, and textiles, offering a durable IP20 protection and an operating temperature range of -10 to 55 °C. For comprehensive control in diverse industrial environments across Egypt and the Gulf, request a quote for the Schneider Electric TM221C40T.
Details
- Brand: Schneider Electric
- Part number: TM221C40T
- Series: Modicon M221
- Category: Logic Controller
Related Schneider Electric parts
- Schneider Electric TM221C40U — Modicon M221 Logic Controller 40 I/O Transistor NPN
- Schneider Electric TM221CE16T — Modicon M221 Logic Controller 16 IO Transistor PNP Ethernet
- Schneider Electric TM221CE16U — Modicon M221-16IO Logic Controller with Ethernet
- Schneider Electric TM221CE24T — M221 Logic Controller 24 I/O Transistor PNP Ethernet
- Schneider Electric TM221CE24U — Modicon M221 Logic controller 24io tr.npn ethernet
- Schneider Electric TM221CE40T — Modicon M221 Logic controller with 40 I/O and Ethernet
- Schneider Electric TM221CE40U — Modicon M221 Logic Controller 40 I/O Transistor NPN Ethernet
- Schneider Electric TM221M16R — Modicon M221 16 I/O Relay Logic Controller
- Schneider Electric TM221M16T — Modicon M221 logic controller 16 IO (8 DI, 8 DO transistor)
- Schneider Electric TM221ME16R — Modicon M221 Logic Controller 16 IO, 8 DI, 8 DO, Relay, Ethernet
- Schneider Electric TM221ME16T — Modicon M221 logic controller 16 IO 8DI 8DO transistor PNP Ethernet
- Schneider Electric TM221M16RG — controller M221 16 IO relay spring
Specifications
- Product weight
- 0.456 kg
- Realtime clock
- With
- Memory capacity
- 256 kB for user application and data RAM
- Discrete I/O number
- 40
- Discrete output type
- Transistor
- Analogue input number
- 2 at 0...10 V
- Discrete input number
- 24, discrete input 4 fast input conforming to IEC 61131-2 Type 1
- Positioning functions
- Position PTO 2 axe(s)pulse/direction mode (100 kHz), Position PTO 1 axe(s)CW/CCW mode (100 kHz)
- Discrete output number
- 16 transistor 2 fast output
- Discrete output current
- 0.5 A
- Discrete output voltage
- 24 V DC
- IP degree of protection
- IP20 with protective cover in place
- Manufacturer part number
- TM221C40T
- Product or component type
- Logic controller
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with RJ45 connector and RS485 interface, Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface
- Communication port protocol
- USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
- Maximum number of I/O expansion module
- 7 (local I/O-Architecture)
