TM221CE40T

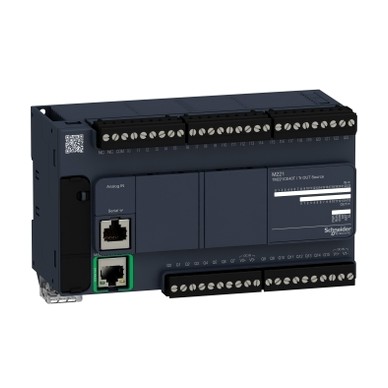

Schneider Electric TM221CE40T Modicon M221 Logic controller with 40 I/O and Ethernet. The Schneider Electric Modicon M221 Logic Controller, part number TM221CE40T, is a compact yet powerful machine controller designed for OEM machines and small plant automation. Operating on a 24 V DC rated supply voltage, this robust unit offers a total of 40 discrete I/O, comprising 24 discrete inputs (including 4 fast inputs conforming to IEC 61131-2 Type 1) and 16 transistor discrete outputs (featuring 2 fast outputs). Each discrete output provides 24 V DC at 0.5 A, with a maximum current of 4 A per output common, safeguarded by overload and short-circuit protection at 1 A. Equipped with 2 analog inputs (0-10 V), the TM221CE40T ensures versatile sensing capabilities. Communication is comprehensive, featuring an integrated USB port, a non-isolated serial link (RS232/RS485 supporting Modbus RTU/ASCII), and an Ethernet port for Modbus TCP, Ethernet/IP adapter, and DHCP client functionalities. With 256 kB memory for user applications and an integrated Realtime Clock, it’s ideal for demanding applications in Egyptian and Gulf industries such as water treatment, food and beverage, or building services. The controller is IP20 rated and supports DIN rail or panel mounting.
Details
- Brand: Schneider Electric
- Part number: TM221CE40T
- Series: Modicon M221
- Category: Logic controller
Related Schneider Electric parts
- Schneider Electric TM221CE40U — Modicon M221 Logic Controller 40 I/O Transistor NPN Ethernet
- Schneider Electric TM221M16R — Modicon M221 16 I/O Relay Logic Controller
- Schneider Electric TM221M16T — Modicon M221 logic controller 16 IO (8 DI, 8 DO transistor)
- Schneider Electric TM221ME16R — Modicon M221 Logic Controller 16 IO, 8 DI, 8 DO, Relay, Ethernet
- Schneider Electric TM221ME16T — Modicon M221 logic controller 16 IO 8DI 8DO transistor PNP Ethernet
- Schneider Electric TM221M16RG — controller M221 16 IO relay spring
- Schneider Electric TM221M16TG — controller M221 16 IO transistor PNP spring
- Schneider Electric TM221M32TK — controller M221 32 IO transistor PNP
- Schneider Electric TM221ME16RG — controller M221 16 IO relay Ethernet spring
- Schneider Electric TM221ME16TG — controller M221 16 IO transistor PNP Ethernet spring
- Schneider Electric TM221ME32TK — controller M221 32 IO transistor PNP Ethernet
- Modicon M221 TM221CE16R logic controller 16 I/O, 9 DI, 7 relay DO, Ethernet
Request a quote for TM221CE40T
Specifications
- Depth
- 70 mm
- Width
- 160 mm
- Height
- 90 mm
- Product weight
- 0.456 kg
- Realtime clock
- With
- Memory capacity
- 256 kB for user application and data RAM
- Protection type
- Overload and short-circuit protection at 1 A
- Mounting support
- Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit
- Discrete I/O number
- 40
- Discrete output type
- Transistor
- Analogue input number
- 2 at 0...10 V
- Discrete input number
- 24, discrete input 4 fast input conforming to IEC 61131-2 Type 1
- Discrete output number
- 16 transistor 2 fast output
- Discrete output current
- 0.5 A
- Discrete output voltage
- 24 V DC
- IP degree of protection
- IP20 with protective cover in place
- Manufacturer part number
- TM221CE40T
- Product or component type
- Logic controller
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface; Ethernet with RJ45 connector
- Communication port protocol
- USB port: USB - SoMachine-Network; Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network; Ethernet: Modbus TCP slave device, Ethernet/IP adapter, Modbus TCP server, Modbus TCP client, DHCP client
- Maximum power consumption in W
- 17 W at 24 V (with max number of I/O expansion module)
- Maximum current per output common
- 4 A
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
