TM221M16R

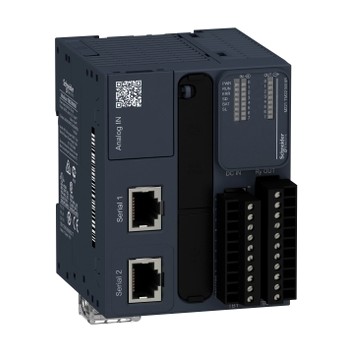

Schneider Electric TM221M16R Modicon M221 16 I/O Relay Logic Controller. The Schneider Electric Modicon M221 Logic Controller, part number TM221M16R, is a compact and efficient machine controller designed for OEM machines and small plant automation. This versatile controller operates on a 24 V DC supply and features 8 discrete inputs conforming to IEC 61131-2 Type 1, alongside 2 analogue inputs (0-10 V). For outputs, it provides 8 normally open relay outputs, capable of switching 2 A at voltages from 5-125 V DC or 5-250 V AC, making it suitable for a wide range of control applications. The TM221M16R supports expandability with up to 14 remote I/O expansion modules, offering flexibility for growing automation needs. Communication options include a USB port and two non-isolated serial links (RS485, RS232/RS485) supporting Modbus master/slave protocols. With 256 kB of memory for user applications and data, it is a robust solution for industries in Egypt and the Gulf, such as water treatment, cement, oil and gas, food and beverage, and textiles, ensuring reliable process control and data acquisition.
Details
- Brand: Schneider Electric
- Part number: TM221M16R
- Series: Modicon M221
- Category: Logic controller
Related Schneider Electric parts
- Schneider Electric TM221M16T — Modicon M221 logic controller 16 IO (8 DI, 8 DO transistor)
- Schneider Electric TM221ME16R — Modicon M221 Logic Controller 16 IO, 8 DI, 8 DO, Relay, Ethernet
- Schneider Electric TM221ME16T — Modicon M221 logic controller 16 IO 8DI 8DO transistor PNP Ethernet
- Schneider Electric TM221M16RG — controller M221 16 IO relay spring
- Schneider Electric TM221M16TG — controller M221 16 IO transistor PNP spring
- Schneider Electric TM221M32TK — controller M221 32 IO transistor PNP
- Schneider Electric TM221ME16RG — controller M221 16 IO relay Ethernet spring
- Schneider Electric TM221ME16TG — controller M221 16 IO transistor PNP Ethernet spring
- Schneider Electric TM221ME32TK — controller M221 32 IO transistor PNP Ethernet
- Modicon M221 TM221CE16R logic controller 16 I/O, 9 DI, 7 relay DO, Ethernet
- Modicon M221 TM221CE24R logic controller 24 I/O, 14 DI, 10 relay DO, Ethernet
- Modicon M221 TM221CE40R logic controller 40 I/O, 24 DI, 16 relay DO, Ethernet
Specifications
- Product weight
- 0.264 kg
- Memory capacity
- 256 kB for user application and data RAM
- Dimensions (HxWxD)
- 90 mm x 70 mm x 70 mm
- Discrete I/O number
- 16
- Discrete output type
- Relay normally open
- Analogue input number
- 2 at 0...10 V
- Discrete input number
- 8
- Discrete output number
- 8 relay
- Discrete output current
- 2 A
- Discrete output voltage
- 5...125 V DC, 5...250 V AC
- IP degree of protection
- IP20 with protective cover in place
- Manufacturer part number
- TM221M16R
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with RJ45 connector and RS485 interface, Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface
- Communication port protocol
- USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
- Maximum number of I/O expansion module
- 7 (local I/O-Architecture), 14 (remote I/O-Architecture)
