TM221C40U

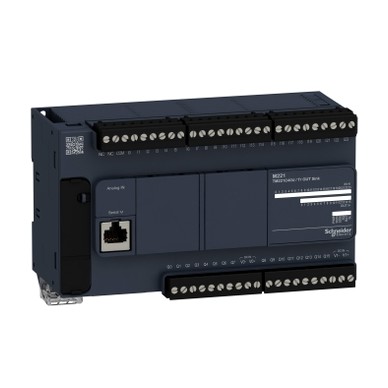

Schneider Electric TM221C40U Modicon M221 Logic Controller 40 I/O Transistor NPN. The Schneider Electric Modicon M221 Logic Controller, part number TM221C40U, is a compact and efficient machine controller designed for OEM machines and small plant automation. This versatile logic controller operates on a 24 V DC supply and features a robust I/O configuration, including 24 discrete inputs (with 4 fast inputs conforming to IEC 61131-2 Type 1) and 2 analogue inputs (0-10 V). For outputs, it provides 16 transistor outputs, 4 of which are fast outputs, capable of 0.5 A at 24 V DC. With a total of 40 discrete I/Os, it supports up to 7 local or 14 remote I/O expansion modules. Key functionalities include 14 adjustable PID regulation loops, 4-axis pulse/direction positioning, and a real-time clock. Connectivity is comprehensive with a USB 2.0 port, an RS485 serial link, and a second RS232/RS485 serial link. Its 256 kB memory for user application and data RAM ensures efficient program execution. This controller is ideal for diverse industrial applications across Egypt and the Gulf, such as water treatment plants, food and beverage processing, textile manufacturing, cement production, and oil and gas facilities.
Details
- Brand: Schneider Electric
- Part number: TM221C40U
- Series: Modicon M221
- Category: Logic Controller
Related Schneider Electric parts
- Schneider Electric TM221CE16T — Modicon M221 Logic Controller 16 IO Transistor PNP Ethernet
- Schneider Electric TM221CE16U — Modicon M221-16IO Logic Controller with Ethernet
- Schneider Electric TM221CE24T — M221 Logic Controller 24 I/O Transistor PNP Ethernet
- Schneider Electric TM221CE24U — Modicon M221 Logic controller 24io tr.npn ethernet
- Schneider Electric TM221CE40T — Modicon M221 Logic controller with 40 I/O and Ethernet
- Schneider Electric TM221CE40U — Modicon M221 Logic Controller 40 I/O Transistor NPN Ethernet
- Schneider Electric TM221M16R — Modicon M221 16 I/O Relay Logic Controller
- Schneider Electric TM221M16T — Modicon M221 logic controller 16 IO (8 DI, 8 DO transistor)
- Schneider Electric TM221ME16R — Modicon M221 Logic Controller 16 IO, 8 DI, 8 DO, Relay, Ethernet
- Schneider Electric TM221ME16T — Modicon M221 logic controller 16 IO 8DI 8DO transistor PNP Ethernet
- Schneider Electric TM221M16RG — controller M221 16 IO relay spring
- Schneider Electric TM221M16TG — controller M221 16 IO transistor PNP spring
Specifications
- Dimensions
- 90 mm H x 160 mm W x 70 mm D
- Product weight
- 0.63 kg
- Realtime clock
- With
- Memory capacity
- 256 kB (user application and data RAM)
- Regulation loop
- Adjustable PID regulator up to 14 simultaneous loops
- Discrete I/O number
- 40
- Discrete output type
- Transistor
- Analogue input number
- 2 at 0...10 V
- Discrete input number
- 24 (4 fast inputs)
- Positioning functions
- Position PTO 4 axe(s)pulse/direction mode (100 kHz)
- Discrete output number
- 16 transistor (4 fast outputs)
- IP degree of protection
- IP20
- Manufacturer part number
- TM221C40U
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- USB 2.0, Serial 1 (RS485), Serial 2 (RS232/RS485)
- Maximum power consumption in W
- 4.1 W at 24 V (without I/O expansion module)
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
- Maximum number of I/O expansion module
- 7 (local), 14 (remote)
