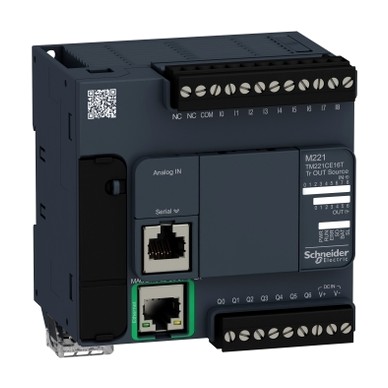

TM221CE16T
Schneider Electric TM221CE16T Modicon M221 Logic Controller 16 IO Transistor PNP Ethernet. The Schneider Electric TM221CE16T Modicon M221 is a compact and versatile logic controller designed for a wide range of OEM machines and small plant automation tasks. This robust controller operates on a 24 V DC rated supply voltage, offering 9 discrete inputs, including 4 fast inputs, along with 2 analogue inputs (0-10 V). It features 7 transistor discrete outputs, 2 of which are fast outputs, capable of handling 0.5 A each at 24 V DC, bringing the total discrete I/O count to 16. For enhanced connectivity, the TM221CE16T integrates a USB port, a non-isolated serial link (RS232/RS485 with Modbus support), and a 10BASE-T/100BASE-TX Ethernet port. With an IP20 protection rating and an operating temperature range of -10 to 55 °C, it's built for demanding industrial environments. Its compact design (90x95x70mm) and 0.346 kg weight make it easy to integrate into control panels. This controller is well-suited for diverse applications in Egypt and the Gulf, including motor control in building services, process automation in water treatment plants, packaging machinery in food and beverage, and various systems in light manufacturing and textiles.
Details
- Brand: Schneider Electric
- Part number: TM221CE16T
- Series: Modicon M221
- Category: Logic Controller
Related Schneider Electric parts
- Schneider Electric TM221CE16U — Modicon M221-16IO Logic Controller with Ethernet
- Schneider Electric TM221CE24T — M221 Logic Controller 24 I/O Transistor PNP Ethernet
- Schneider Electric TM221CE24U — Modicon M221 Logic controller 24io tr.npn ethernet
- Schneider Electric TM221CE40T — Modicon M221 Logic controller with 40 I/O and Ethernet
- Schneider Electric TM221CE40U — Modicon M221 Logic Controller 40 I/O Transistor NPN Ethernet
- Schneider Electric TM221M16R — Modicon M221 16 I/O Relay Logic Controller
- Schneider Electric TM221M16T — Modicon M221 logic controller 16 IO (8 DI, 8 DO transistor)
- Schneider Electric TM221ME16R — Modicon M221 Logic Controller 16 IO, 8 DI, 8 DO, Relay, Ethernet
- Schneider Electric TM221ME16T — Modicon M221 logic controller 16 IO 8DI 8DO transistor PNP Ethernet
- Schneider Electric TM221M16RG — controller M221 16 IO relay spring
- Schneider Electric TM221M16TG — controller M221 16 IO transistor PNP spring
- Schneider Electric TM221M32TK — controller M221 32 IO transistor PNP
Request a quote for TM221CE16T
Specifications
- Depth
- 70 mm
- Width
- 95 mm
- Height
- 90 mm
- Port Ethernet
- 10BASE-T/100BASE-TX 1 port with 100 m copper cable
- Product weight
- 0.346 kg
- Memory capacity
- 256 kB for user application and data RAM with 10000 instructions
- Discrete I/O number
- 16
- Discrete output type
- Transistor
- Analogue input number
- 2 at 0...10 V
- Discrete input number
- 9, discrete input 4 fast input conforming to IEC 611131-2 Type 1
- Discrete output number
- 7 transistor 2 fast output
- Discrete output current
- 0.5 A
- Discrete output voltage
- 24 V DC
- IP degree of protection
- IP20 with protective cover in place
- Manufacturer part number
- TM221CE16T
- [Us] rated supply voltage
- 24 V DC
- Integrated connection type
- USB port with mini B USB 2.0 connector, Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface, Ethernet with RJ45 connector
- Communication port protocol
- USB port: USB - SoMachine-Network, Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network, Ethernet
- Ambient air temperature for operation
- -10…55 °C (horizontal installation)
- Maximum number of I/O expansion module
- 4 (local I/O-Architecture), 11 (remote I/O-Architecture)
