LRD3359

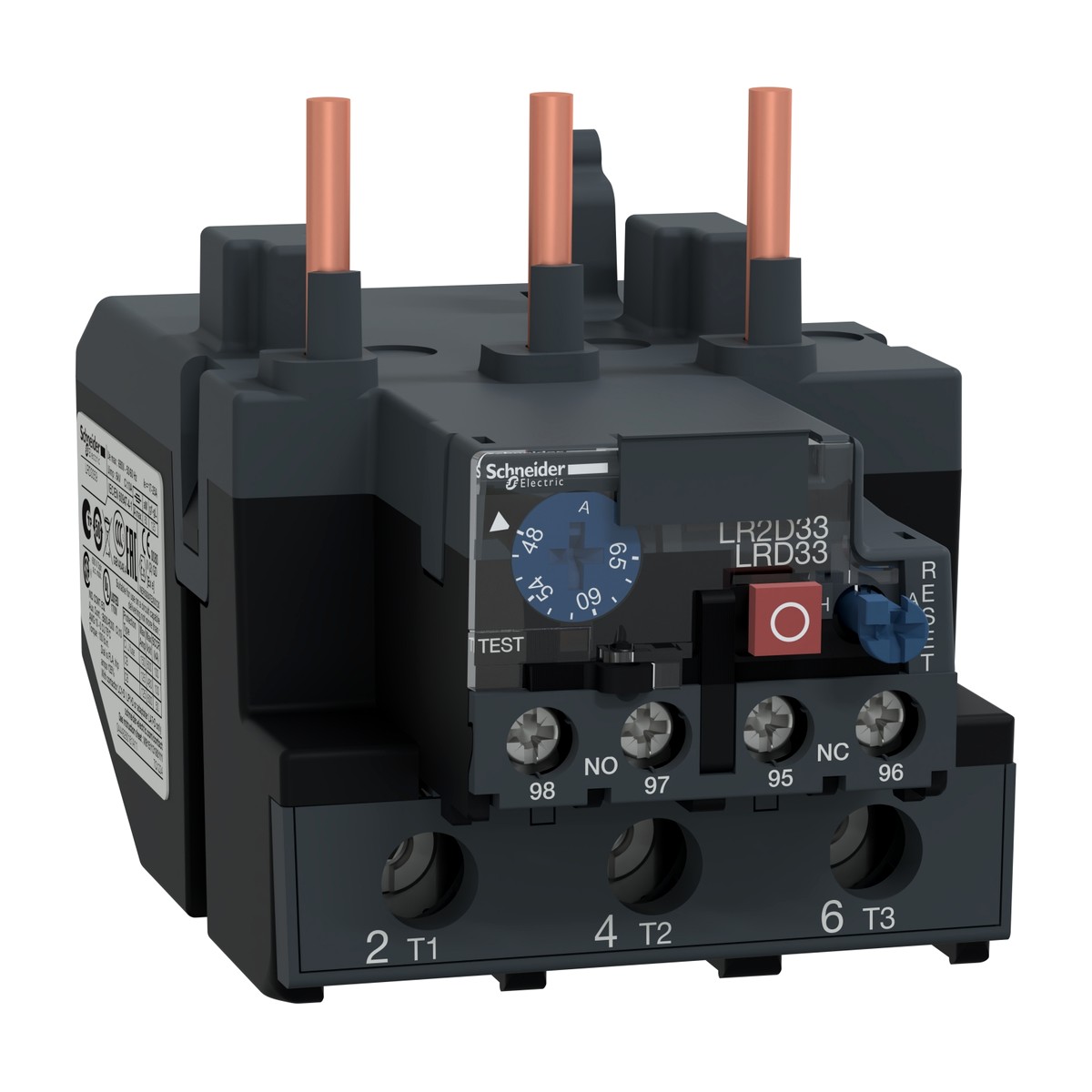

Schneider Electric LRD3359 TeSys Deca LRD Differential Thermal Overload Relay 48-65A Class 10A. The Schneider Electric LRD3359 is a robust TeSys Deca LRD differential thermal overload relay, engineered for reliable motor protection against sustained overloads and phase failure. Designed for industrial applications, this essential electrical component offers a thermal protection adjustment range of 48 to 65 A and is rated Class 10A conforming to IEC 60947-4-1. It supports both AC and DC network types with an operational frequency range of 0 to 400 Hz and an operational voltage of up to 1000 V AC. Featuring an IP20 degree of protection and operational in ambient temperatures from -20 to 60 °C, the LRD3359 ensures durability in harsh environments. Its compatibility with contactors like LC1D80 and LC1D95 makes integration straightforward. This relay is vital for safeguarding motors in demanding industries across Egypt and the Gulf, including cement production, oil and gas, water treatment, food and beverage, and building services.
Details
- Brand: Schneider Electric
- Part number: LRD3359
- Series: TeSys LRD, TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD3361 — TeSys LRD TeSys Deca Differential thermal overload relay 55-70 A Class 10A
- TeSys Deca LRD07 thermal overload relay 1.6-2.5 A
- TeSys Deca LRD3363 thermal overload relay 63-80A Class 10A
- Schneider Electric LRD35 — TeSys Deca Thermal Overload Relay 690VAC 30-38A 1NO+1NC Class 10A Screw Clamp
- TeSys LRD03 Thermal Overload Relay 0.25-0.4A Class 10A
- TeSys LRD Differential Thermal Overload Relay 37-50A Class 10A
- TeSys LRD thermal overload relay LRD365 48-65 A Class 10A
- TeSys LRD Thermal Overload Relay 110-140A Class 10A
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric LRD16 — TeSys LRD thermal overload relays - 9...13 A - class 10A
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
- Schneider Electric LRD01 — Thermal Overload Relay, 690V AC, 0.1-0.16A, 1NO+1NC, Class 10A, Screw Clamp
Specifications
- Net weight
- 0.51 Kg
- Network type
- AC, DC
- Mounting support
- Plate, Rail, Under contactor
- Network frequency
- 0...400 Hz
- Product compatibility
- LC1D80, LC1D95
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- Connections - terminals
- Power circuit: screw clamp terminals 1 cable(s) 4…35 mm²; Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD3359
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ui] rated insulation voltage
- Power circuit: 1000 V (IEC), 600 V (CSA, UL)
- [Ue] rated operational voltage
- 1000 V AC 0...400 Hz
- Thermal protection adjustment range
- 48…65 A
- Ambient air temperature for operation
- -20…60 °C without derating
