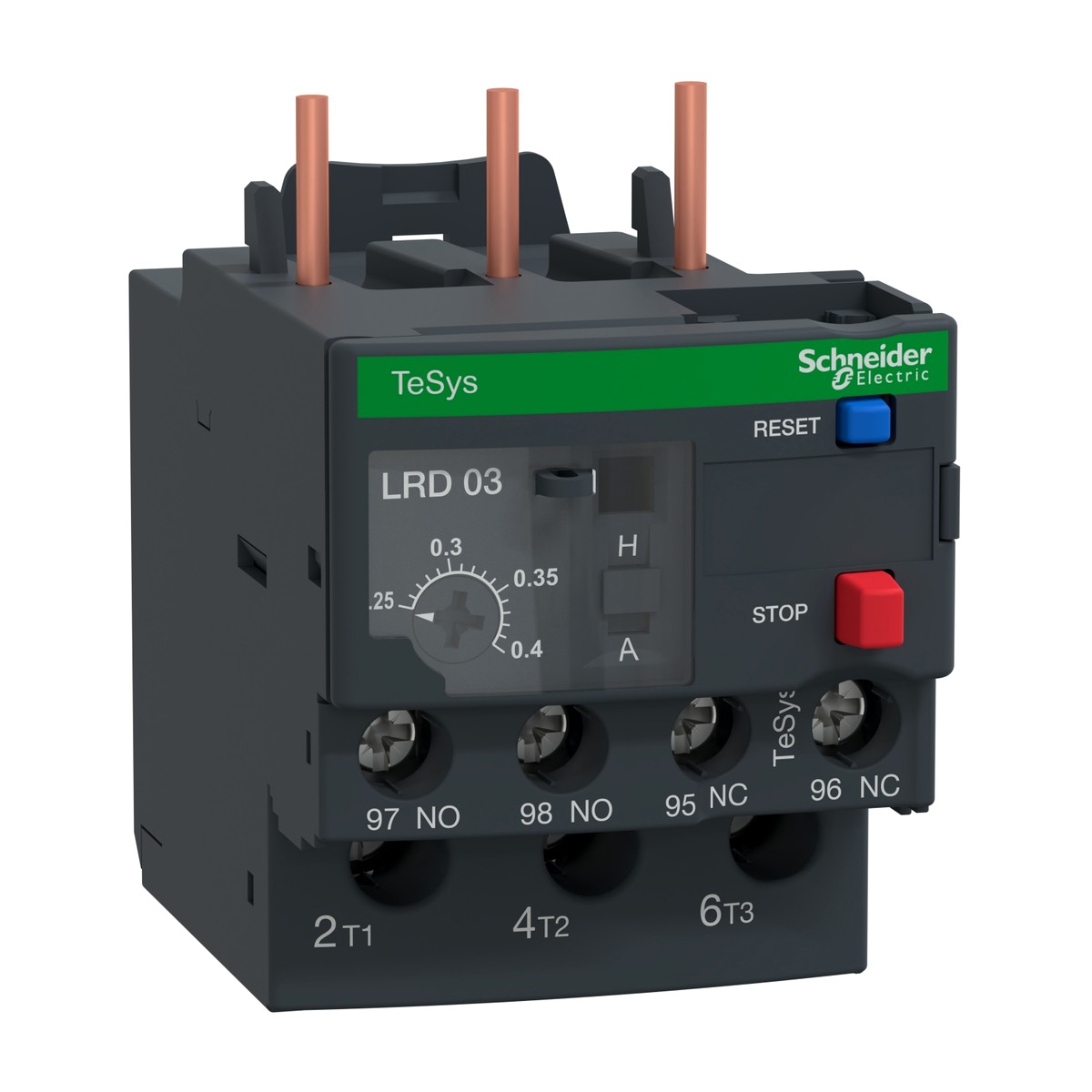

Schneider Electric LRD03 TeSys Thermal Overload Relay 0.25-0.4A Class 10A. The Schneider Electric LRD03 is a robust TeSys LRD thermal overload relay, meticulously engineered for reliable motor protection against sustained overload conditions. This essential device features a precise thermal protection adjustment range of 0.25 to 0.4 A, making it ideal for safeguarding smaller motors. Conforming to Class 10A according to IEC 60947-4-1, the LRD03 ensures quick and effective tripping in overload situations. It supports both AC and DC network types, with a rated operational voltage of 690 V AC (0-400 Hz) for the power circuit, and includes 1 NO + 1 NC auxiliary contacts for versatile control circuit integration. With an IP20 degree of protection and an ambient operating temperature range of -20 to 60 °C, the Schneider Electric LRD03 is built for durability in demanding industrial environments. Its compact dimensions (66 mm H x 45 mm W x 70 mm D) and various mounting options (plate, rail, under contactor) allow for flexible installation. Compatible with TeSys D contactors like LC1D09 through LC1D38, this relay is a perfect fit for motor control applications in critical sectors across Egypt and the Gulf, including water treatment, oil and gas, food and beverage, cement, textiles, and building services.
Details
- Brand: Schneider Electric
- Part number: LRD03
- Series: TeSys LRD
- Category: Thermal Overload Relay
Related Schneider Electric parts
- TeSys LRD Differential Thermal Overload Relay 37-50A Class 10A
- TeSys LRD Thermal Overload Relay 110-140A Class 10A
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric LRD16 — TeSys LRD thermal overload relays - 9...13 A - class 10A
- TeSys Deca LRD07 thermal overload relay 1.6-2.5 A
- TeSys LRD thermal overload relay LRD365 48-65 A Class 10A
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
- Schneider Electric LRD01 — Thermal Overload Relay, 690V AC, 0.1-0.16A, 1NO+1NC, Class 10A, Screw Clamp
- Schneider Electric LRD02 — TeSys Deca Thermal Overload Relay 0.16-0.25A 1NO+1NC Class 10A
- TeSys Deca LRD04 thermal overload relay 0.4-0.63A 1NO+1NC Class 10A screw clamp
- Schneider Electric LRD05 — TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A
- TeSys Deca LRD06 Thermal Overload Relay 1-1.6A Class 10A
Specifications
- Depth
- 70 mm
- Width
- 45 mm
- Height
- 66 mm
- Standards
- EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495
- Control type
- Red push-button: stop; Blue push-button: reset
- Network type
- AC, DC
- Product weight
- 0.124 kg
- Mounting support
- Plate, with specific accessories; Rail, with specific accessories; Under contactor
- Network frequency
- 0...400 Hz
- Relay application
- Motor protection
- Product compatibility
- LC1D25, LC1D18, LC1D38, LC1D12, LC1D32, LC1D09
- Thermal overload class
- Class 10A conforming to IEC 60947-4-1
- IP degree of protection
- IP20 conforming to IEC 60529
- Manufacturer part number
- LRD03
- Connections - Power circuit
- screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
- Auxiliary contact composition
- 1 NO + 1 NC
- [Ue] rated operational voltage
- 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
- Thermal protection adjustment range
- 0.25…0.4 A
- Ambient air temperature for operation
- -20…60 °C without derating conforming to IEC 60947-4-1
