LRD07

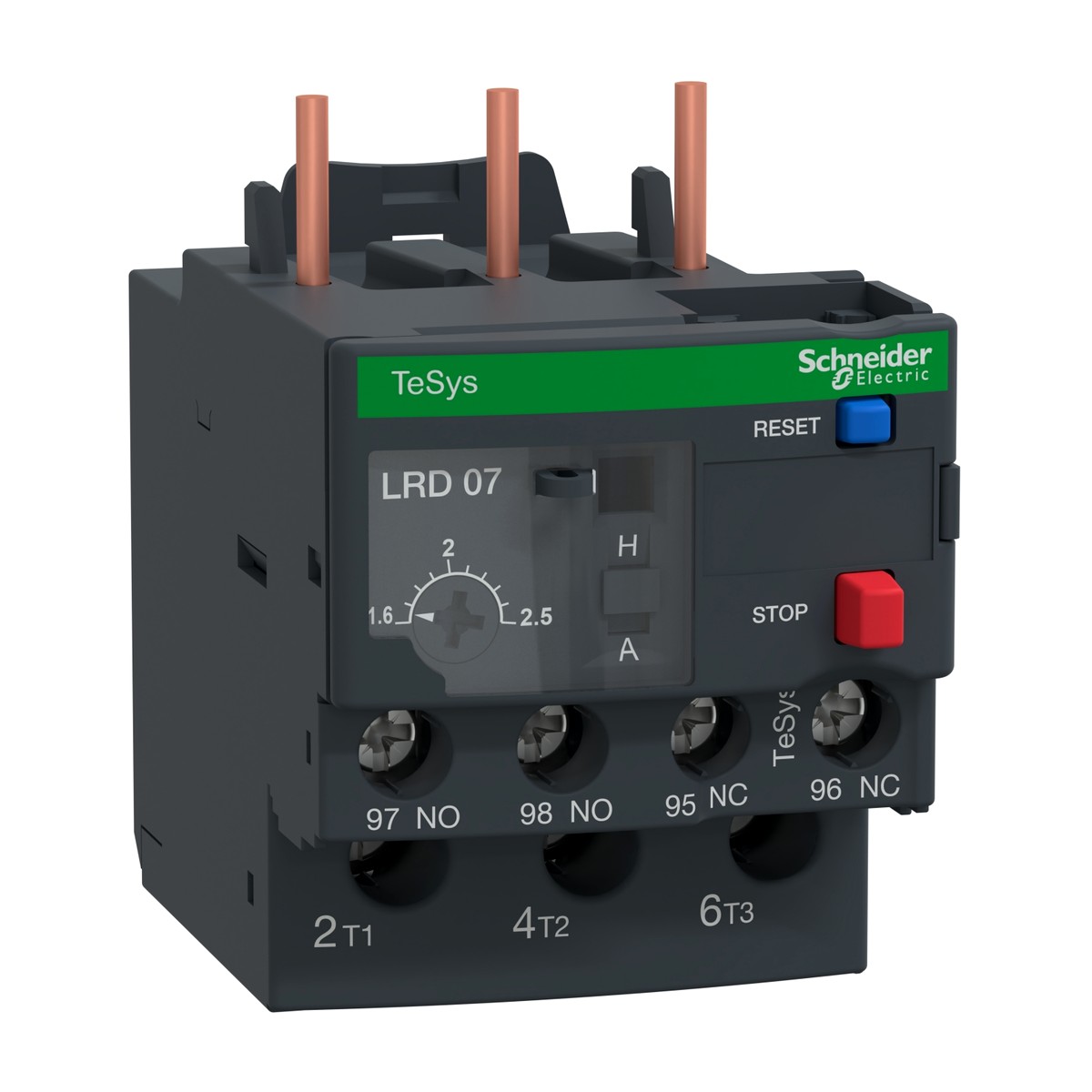

Schneider Electric LRD07 TeSys Deca thermal overload relay 1.6-2.5 A. The Schneider Electric LRD07 is a robust TeSys Deca differential thermal overload relay, engineered to provide essential motor protection against sustained overloads and phase failure. With an adjustable thermal protection range of 1.6 to 2.5 A and a Class 10A trip characteristic, this relay safeguards motors effectively across AC and DC networks up to 690 V. It features 1 NO + 1 NC auxiliary contacts for seamless integration into control circuits, along with red (stop) and blue (reset) push-buttons for local control. The LRD07 is highly compatible with Schneider Electric TeSys D contactors, including LC1D09 through LC1D38, ensuring versatile application. Its IP20 protection and operational temperature range of -20 to 60 °C make it suitable for demanding industrial environments. This relay is ideal for critical motor protection in various Egyptian and Gulf industries such as water treatment, cement, oil and gas, food and beverage, and building services.
Details
- Brand: Schneider Electric
- Part number: LRD07
- Series: TeSys LRD, TeSys Deca
- Category: Thermal Overload Relay
Related Schneider Electric parts
- Schneider Electric LRD3359 — TeSys Deca LRD Differential Thermal Overload Relay 48-65A Class 10A
- Schneider Electric LRD3361 — TeSys LRD TeSys Deca Differential thermal overload relay 55-70 A Class 10A
- TeSys LRD Differential Thermal Overload Relay 37-50A Class 10A
- TeSys LRD thermal overload relay LRD365 48-65 A Class 10A
- TeSys LRD Thermal Overload Relay 110-140A Class 10A
- Schneider Electric LRD4367 — TeSys LRD thermal overload relays
- Schneider Electric LRD16 — TeSys LRD thermal overload relays - 9...13 A - class 10A
- Schneider Electric LRD21 — TeSys LRD thermal overload relays
- Schneider Electric LRD01 — Thermal Overload Relay, 690V AC, 0.1-0.16A, 1NO+1NC, Class 10A, Screw Clamp
- Schneider Electric LRD02 — TeSys Deca Thermal Overload Relay 0.16-0.25A 1NO+1NC Class 10A
- TeSys Deca LRD04 thermal overload relay 0.4-0.63A 1NO+1NC Class 10A screw clamp
- Schneider Electric LRD05 — TeSys Deca Thermal Overload Relay 0.63-1A 1NO+1NC Class 10A
Specifications
- Control type
- Red push-button (stop), Blue push-button (reset)
- Network type
- AC, DC
- Product weight
- 0.124 kg
- Mounting support
- Under contactor, Plate (with specific accessories), Rail (with specific accessories)
- Tightening torque
- 1.7 N.m
- Product compatibility
- LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- Dimensions (H x W x D)
- 66 x 45 x 70 mm
- Thermal overload class
- Class 10A
- Connections - terminals
- Screw clamp terminals (Power: 1-10 mm², Control: 1-2.5 mm²)
- IP degree of protection
- IP20
- Manufacturer part number
- LRD07
- Auxiliary contact composition
- 1 NO + 1 NC
- Rated insulation voltage (Ui)
- 690 V
- Rated operational voltage (Ue)
- 690 V AC 0...400 Hz
- Thermal protection adjustment range
- 1.6…2.5 A
- Ambient air temperature for operation
- -20…60 °C
