ATV630D15M3

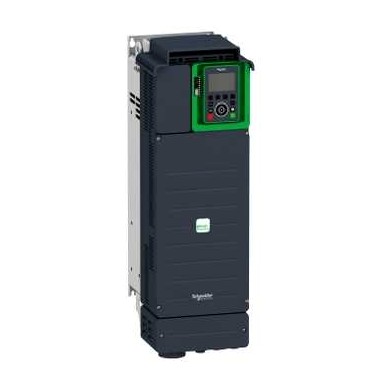

Schneider Electric ATV630D15M3 Altivar Process ATV630 Variable Speed Drive 15kW/20HP 200-240V IP21. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It weighs 13.6kg and its dimensions are, 226mm wide, 673mm high, 271mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D15M3
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630U55Y6 — Altivar Process ATV630 Variable Speed Drive 5.5kW / 7.5hp
- Schneider Electric ATV630U75M3 — variable speed drive ATV630 - 7.5kW/10HP - 200...240V - IP21/UL type 1
- Schneider Electric ATV630D18Y6 — Altivar Process ATV630 Variable Speed Drive 18.5kW 500-690V
- Schneider Electric ATV630D22M3 — Altivar Process ATV630 Variable Speed Drive 22kW 200-240V IP21
- Schneider Electric ATV630D11M3 — ATV630 Variable Speed Drive 11kW/15HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D11Y6 — Altivar Process ATV600 Variable Speed Drive 11kW 15hp 500-690V IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D15Y6 15kW/20HP
- Schneider Electric ATV630D18M3 — Altivar Process ATV630 Variable Speed Drive 18.5 kW
- Schneider Electric ATV630D22Y6 — Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
Request a quote for ATV630D15M3
Specifications
- Number of phases
- 3 phases
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 200...240 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV630D15M3
- Motor power (normal duty)
- 15 kW
- Continuous output current (normal duty)
- 63.4 A
