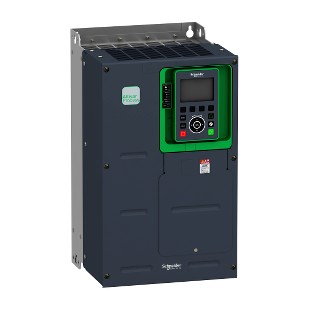

ATV630D15Y6
Schneider Electric ATV630D15Y6 Altivar Process ATV600 Variable Speed Drive 15kW/20HP. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 500V to 690V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 15kW / 20hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 11kW / 15hp for applications requiring significant overload (up to 150%). It weighs 22kg and its dimensions are, 246mm wide, 420mm high, 242mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D15Y6
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D18M3 — Altivar Process ATV630 Variable Speed Drive 18.5 kW
- Schneider Electric ATV630D22Y6 — Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D37N4 — Altivar Process ATV630 Variable Speed Drive 37kW 380-480V IP21
- Schneider Electric ATV630D37Y6 — Altivar Process ATV630 Variable Speed Drive 37kW
- Altivar Process ATV630D45M3 Variable Speed Drive 45kW/60HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D45Y6 — Altivar Process ATV630 Variable Speed Drive 45kW 500-690V
- Schneider Electric ATV630D75M3 — ATV630 Variable Speed Drive 75kW/100HP 200-240V IP21/UL type 1
- Altivar Process ATV630 Variable Speed Drive ATV630D45N4 45kW
- Altivar Process ATV600 Variable Speed Drive ATV630D55M3 55kW/75HP
Request a quote for ATV630D15Y6
Specifications
- EMC filter
- Integrated C3
- Safety function
- STO (safe torque off) SIL 3
- Type of cooling
- Forced convection
- Output frequency
- 0.1-599 Hz
- Prospective line Isc
- 70 kA
- Rated supply voltage
- 500-690 V
- IP degree of protection
- IP00
- Manufacturer part number
- ATV630D15Y6
- Motor power (heavy duty)
- 11 kW (15 HP) at 690 V
- Network number of phases
- 3 phases
- Line current (heavy duty)
- 14.7 A at 690 V
- Motor power (normal duty)
- 15 kW (20 HP) at 690 V
- Line current (normal duty)
- 19.2 A at 690 V
- Apparent power (heavy duty)
- 17.6 kVA at 690 V
- Nominal switching frequency
- 4 kHz
- Apparent power (normal duty)
- 22.9 kVA at 690 V
- Continuous output current (heavy duty)
- 13.5 A at 4 kHz
- Continuous output current (normal duty)
- 18 A at 4 kHz
