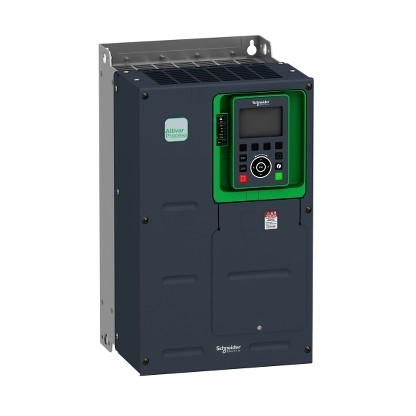

ATV630D22Y6
Schneider Electric ATV630D22Y6 Altivar Process ATV630 Variable Speed Drive 22kW/30 hp, 500-690V, IP00. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 22kW/30hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 18.5kW/25HP for applications requiring significant overload (up to 150%). Its dimensions are 246mm (width) x 242mm (depth) x 420mm (height). It weighs 22kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D22Y6
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630D30M3 — Altivar Process ATV630 Variable Speed Drive 30kW 200-240V IP21
- Schneider Electric ATV630D30Y6 — Variable speed drive, Altivar Process ATV600, ATV630, 30kW/40 hp, 500V/690 V, IP00
- Altivar Process ATV630D37M3 Variable Speed Drive 37kW/50HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D37N4 — Altivar Process ATV630 Variable Speed Drive 37kW 380-480V IP21
- Schneider Electric ATV630D37Y6 — Altivar Process ATV630 Variable Speed Drive 37kW
- Altivar Process ATV630D45M3 Variable Speed Drive 45kW/60HP 200-240V IP21/UL type 1
- Schneider Electric ATV630D45Y6 — Altivar Process ATV630 Variable Speed Drive 45kW 500-690V
- Schneider Electric ATV630D75M3 — ATV630 Variable Speed Drive 75kW/100HP 200-240V IP21/UL type 1
- Altivar Process ATV630 Variable Speed Drive ATV630D45N4 45kW
- Altivar Process ATV600 Variable Speed Drive ATV630D55M3 55kW/75HP
- Schneider Electric ATV630D55N4 — ATV630 Variable Speed Drive 55kW/75HP 380-480V IP21/UL Type 1
- Schneider Electric ATV630D55Y6 — Altivar Process ATV600 ATV630 Variable Speed Drive 55kW/75hp 500-690V
Request a quote for ATV630D22Y6
Specifications
- Motor power
- 22 kW / 30 hp (690 V normal duty)
- Number of phases
- 3
- Output frequency
- 0.1...500 Hz
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 500...690 V
- Nominal output current
- 29.0 A
- IP degree of protection
- IP00, IP20 (with kit VW3A9705)
- Manufacturer part number
- ATV630D22Y6
