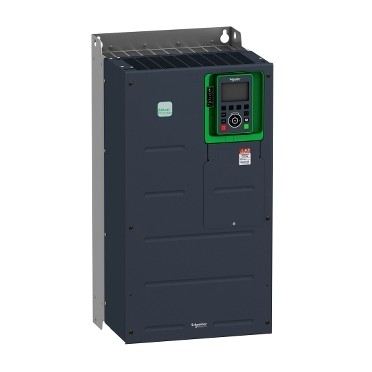

ATV630D55Y6
Schneider Electric ATV630D55Y6 Altivar Process ATV600 ATV630 Variable Speed Drive 55kW/75hp 500-690V. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 25m cable conforming to category C3. It works at a rated supply voltage from 500V to 690VAC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 55kW/75HP (500V supply voltage) for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 45kW/60HP (500V supply voltage) for applications requiring significant overload (up to 150%). Its dimensions are 331mm (width) x 297mm (depth) x 630mm (height). It weighs 53kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by CE, CSA and TUV. It meets UL 508C, EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. Accessories (fan kit, graphic display terminal) and options (line chokes, dv/dt filter, sinus filter, EMC filter) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D55Y6
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Schneider Electric ATV630U07N4Z — Altivar Process ATV630 Variable Speed Drive 0.75 kW 380-480V
- Altivar Process ATV600 Variable Speed Drive ATV630D75Y6, 75kW, 500-690V, IP00
- Altivar Process ATV600 Variable Speed Drive ATV630D75N4
- Altivar Process ATV630U22N4 Variable Speed Drive 2.2 kW
- Altivar Process ATV600 Variable Speed Drive ATV630U40N4Z
- Altivar Process ATV630D90N4 Variable Speed Drive 90kW 380-480V IP21
- Schneider Electric ATV630D90Y6 — Altivar Process ATV600 Variable Speed Drive 90 kW
- Schneider Electric ATV630D15N4Z — Altivar Process ATV630 Variable Speed Drive 15 kW
- Schneider Electric ATV630U15N4Z — Altivar Process ATV630 Variable Speed Drive, 1.5kW, IP20
- Schneider Electric ATV630U30N4Z — Altivar Process ATV630 Variable Speed Drive 3kW 380-480V IP20
- ATV630D30N4 variable speed drive
- Schneider Electric ATV630D11N4Z — Altivar Process ATV630 Variable Speed Drive 11 kW 380-480 V
Request a quote for ATV630D55Y6
Specifications
- IP Rating
- IP00 (IP20 with kit VW3A9706)
- Number of Phases
- 3
- Output Frequency
- 0.1-500 Hz
- Prospective Line Isc
- 70 kA
- Rated Supply Voltage
- 500-690 V
- Manufacturer part number
- ATV630D55Y6
- Motor Power (Heavy Duty)
- 45 kW / 60 hp at 690 V
- Motor Power (Normal Duty)
- 55 kW / 75 hp at 690 V
- Apparent Power (Heavy Duty)
- 65 kVA at 690 V
- Nominal Switching Frequency
- 2.5 kHz
- Apparent Power (Normal Duty)
- 74.7 kVA at 690 V
- Continuous Output Current (Heavy Duty)
- 55 A
- Continuous Output Current (Normal Duty)
- 66 A
