ATV630D75N4

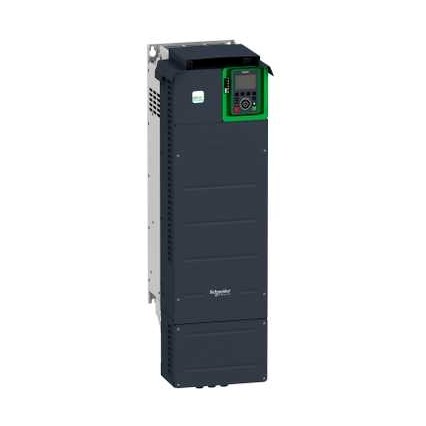

Schneider Electric ATV630D75N4 Altivar Process ATV600 Variable Speed Drive. This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 75kW / 100hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW / 75hp for applications requiring significant overload (up to 150%). It weighs 58kg and its dimensions are, 290mm wide, 922mm high, 323mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall.
Details
- Brand: Schneider Electric
- Part number: ATV630D75N4
- Series: Altivar Process ATV600
- Category: VFD
Related Schneider Electric parts
- Altivar Process ATV630U22N4 Variable Speed Drive 2.2 kW
- Altivar Process ATV600 Variable Speed Drive ATV630U40N4Z
- Altivar Process ATV630D90N4 Variable Speed Drive 90kW 380-480V IP21
- Schneider Electric ATV630D90Y6 — Altivar Process ATV600 Variable Speed Drive 90 kW
- Schneider Electric ATV630D15N4Z — Altivar Process ATV630 Variable Speed Drive 15 kW
- Schneider Electric ATV630U15N4Z — Altivar Process ATV630 Variable Speed Drive, 1.5kW, IP20
- Schneider Electric ATV630U30N4Z — Altivar Process ATV630 Variable Speed Drive 3kW 380-480V IP20
- ATV630D30N4 variable speed drive
- Schneider Electric ATV630D11N4Z — Altivar Process ATV630 Variable Speed Drive 11 kW 380-480 V
- Schneider Electric ATV630D18N4 — Altivar Process ATV630 Variable Speed Drive 18.5kW/25HP 380-480V IP21/UL Type 1
- Schneider Electric ATV630D55N4Z — Altivar Process ATV600 Variable Speed Drive ATV630 - 55kW/75HP - 380-480V - IP21
- ATV630U75N4 variable speed drive ATV630 - 7.5kW/10HP - 380...480V - IP21/UL type 1
Request a quote for ATV630D75N4
Specifications
- Phases
- 3 phases
- EMC filter
- Integrated EN/IEC 61800-3 category C3
- Motor power
- 75 kW / 100 hp (normal duty)
- Supply frequency
- 50...60 Hz
- Rated supply voltage
- 380...480 V
- IP degree of protection
- IP21
- Manufacturer part number
- ATV630D75N4
- Continuous output current
- 145 A
